Body Control Module
>>
Body Control Module - C7
Body Control Module - C7

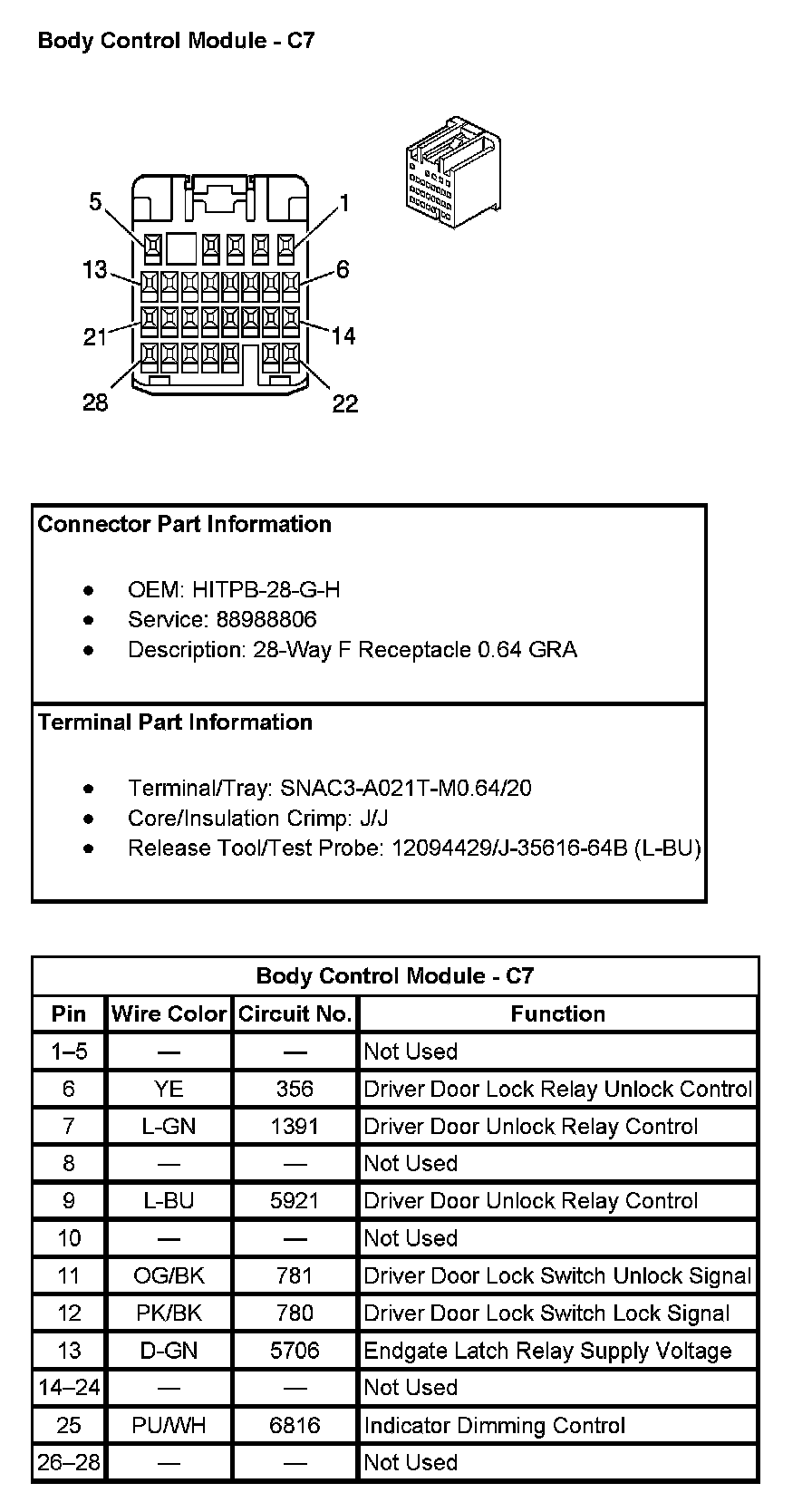

Body Control Module - C7 (Pin 1 To 28):
