Body Control Module - C6
Body Control Module - C6

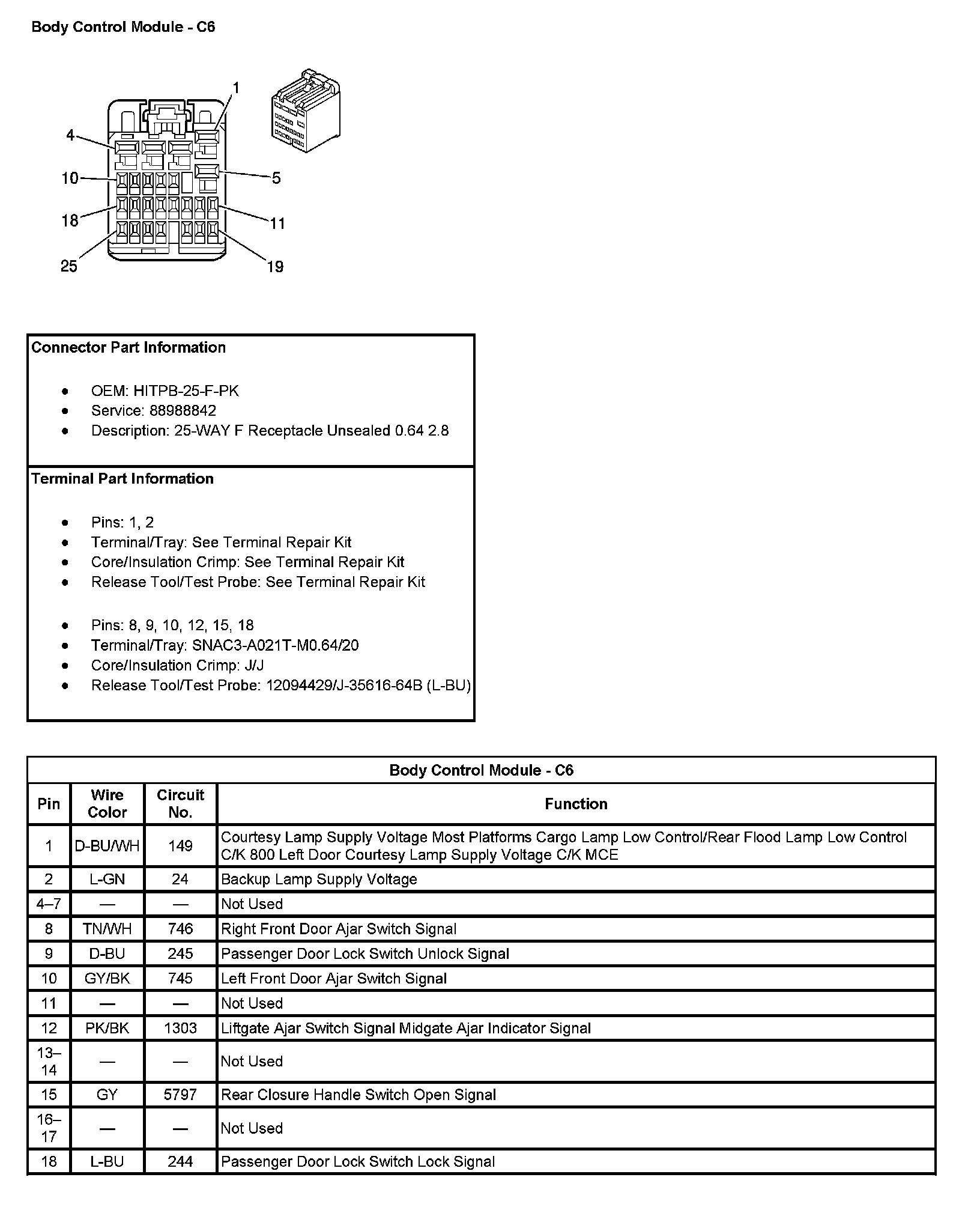

Body Control Module - C6 (Pin 1 To 18):

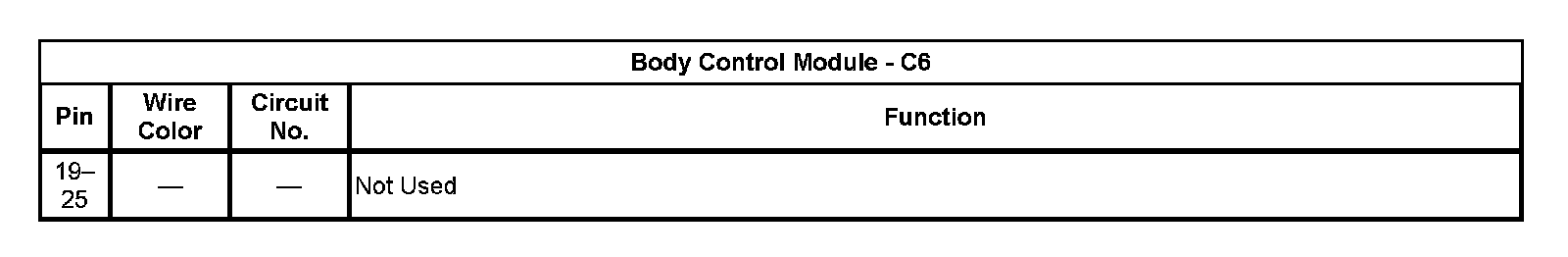

Body Control Module - C6 (Pin 19 To 25):
