Pontiac
>>
2007
>>
Torrent FWD V6-3.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>
Body Control Module - C1
Body Control Module - C1

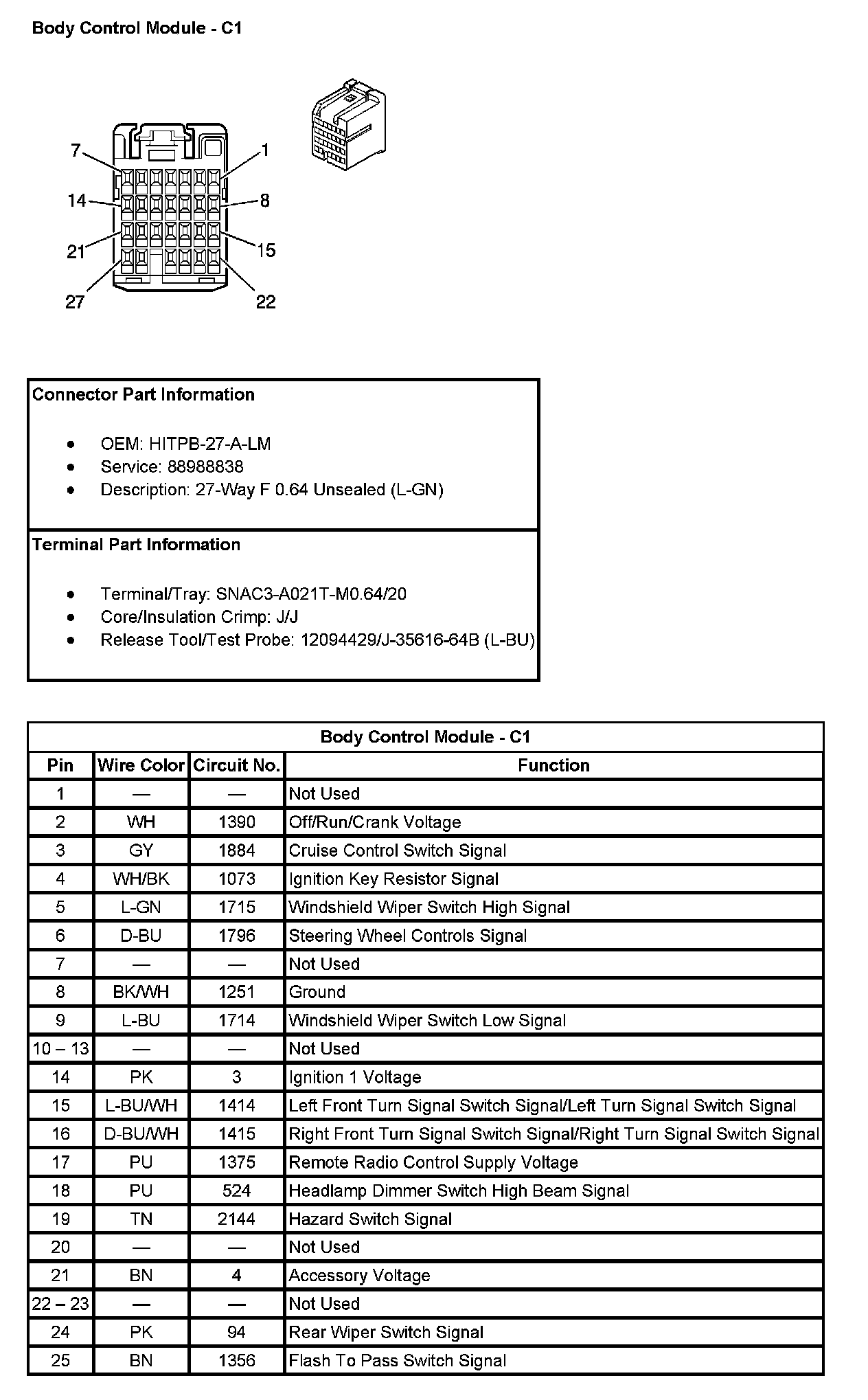

Body Control Module - C1 (Pin 1 To 25):

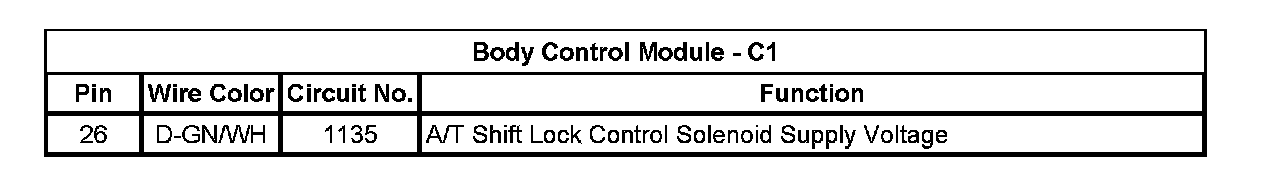

Body Control Module - C1 (Pin 26):
