Engine Control Module



Engine Control Module Connector End Views

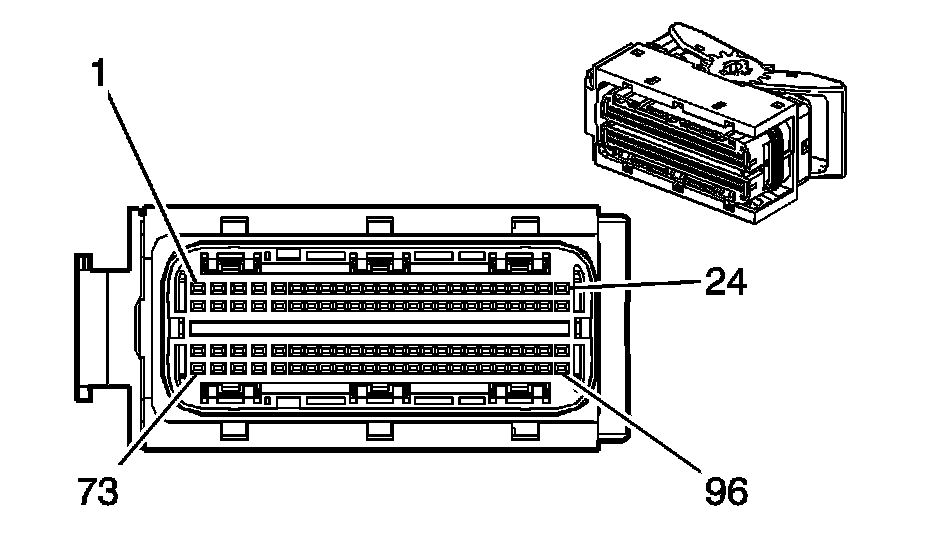

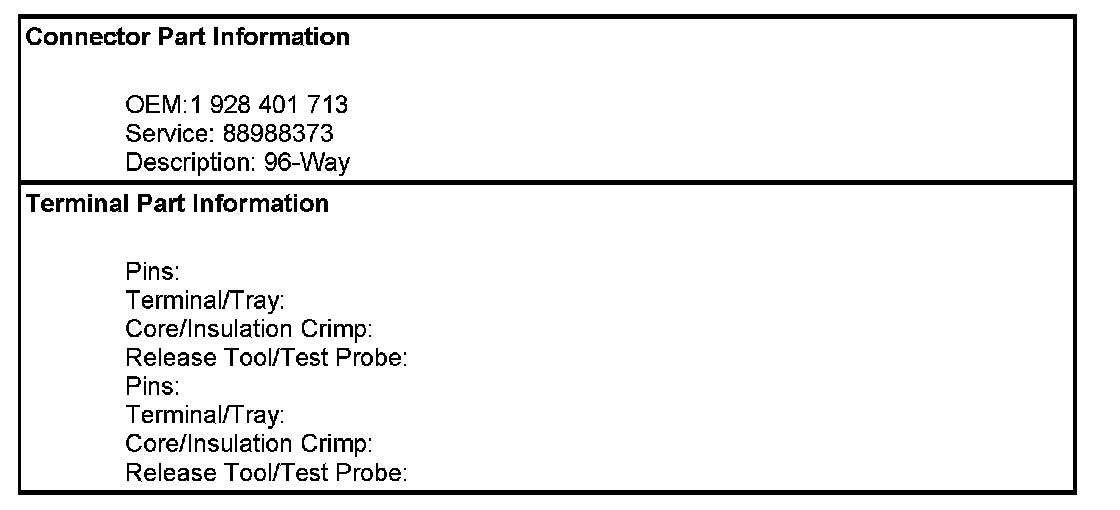

Engine Control Module (ECM) C1

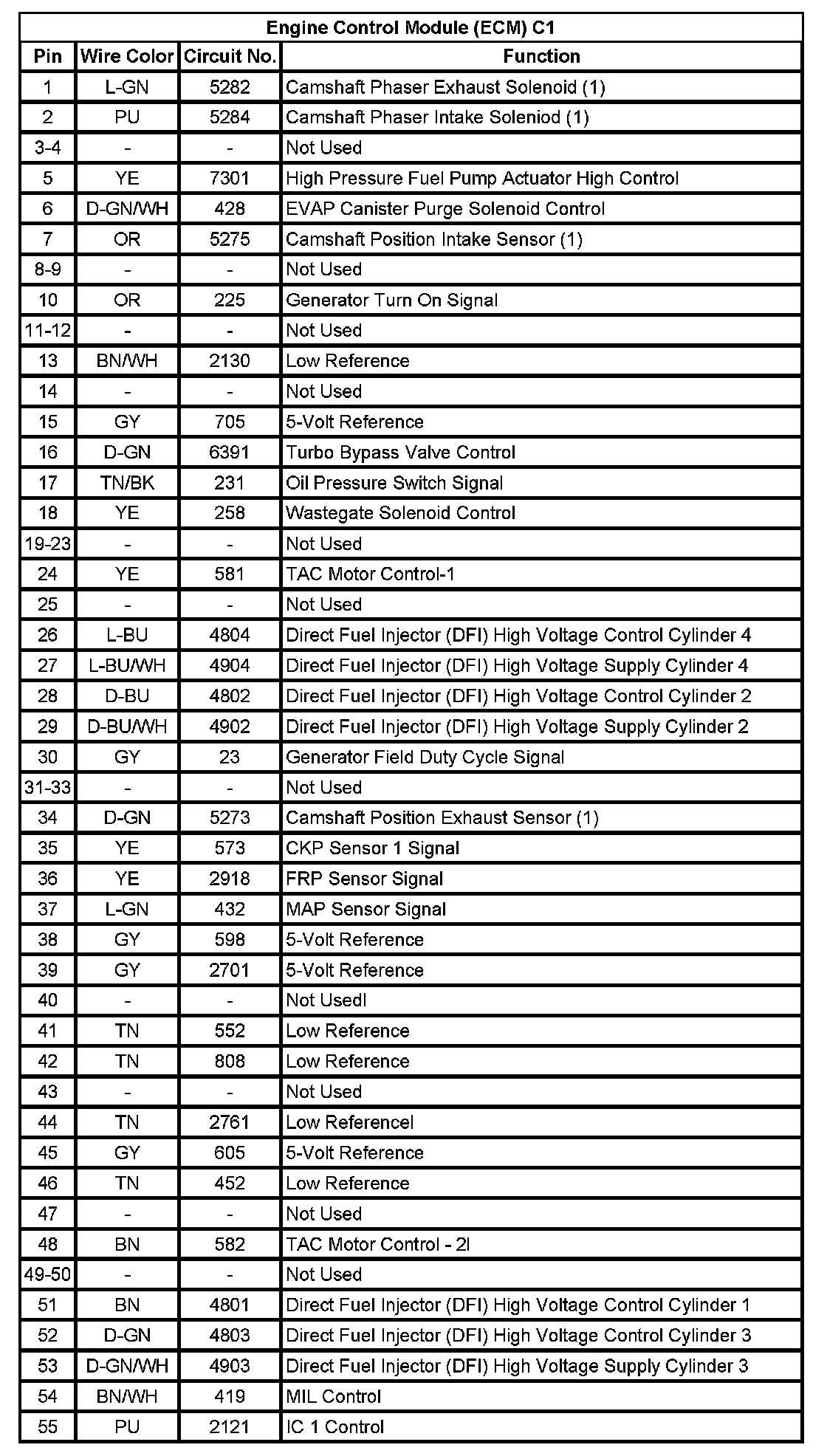

Engine Control Module (ECM) C1 (Pin 1 To 55):

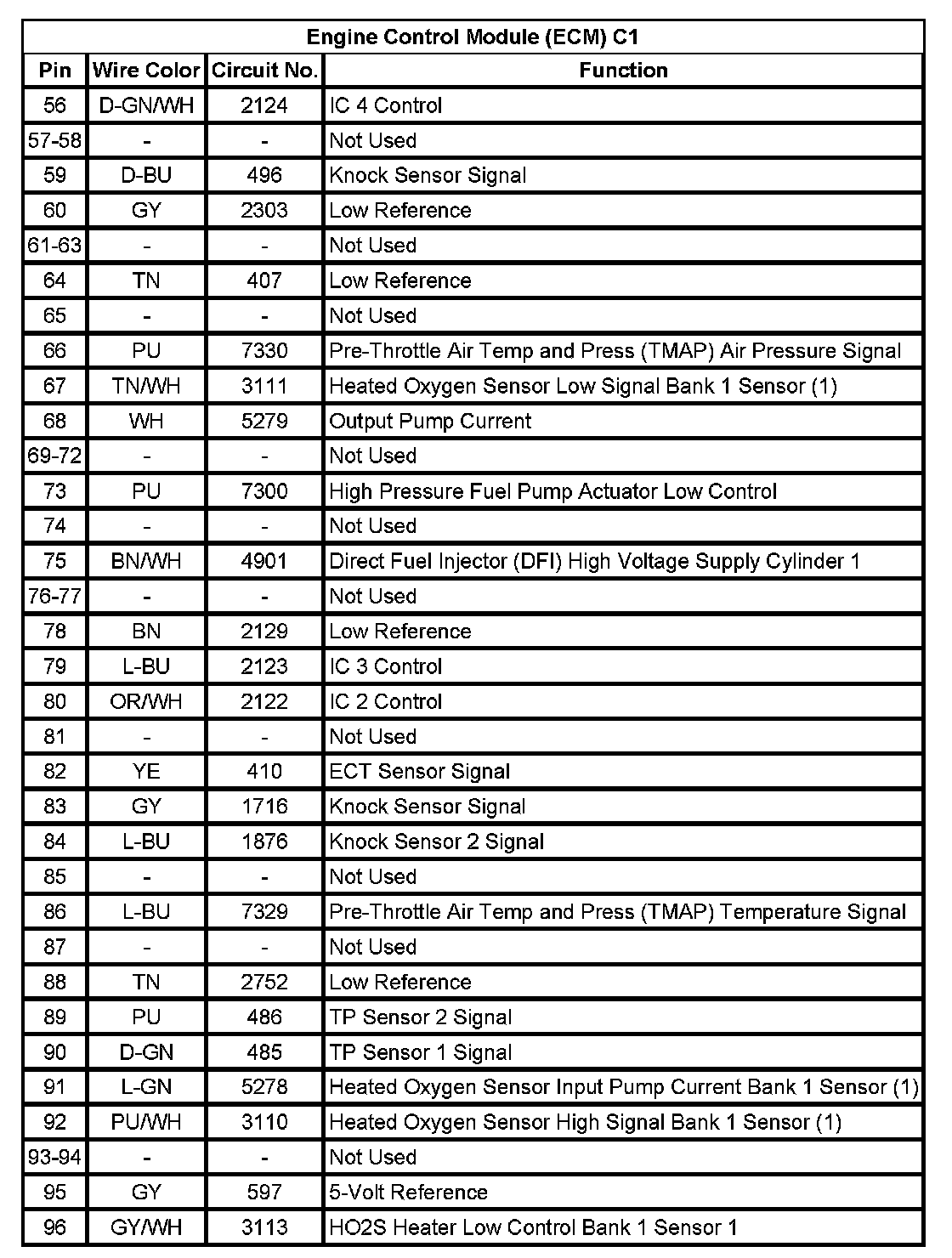

Engine Control Module (ECM) C1 (Pin 56 To 96):

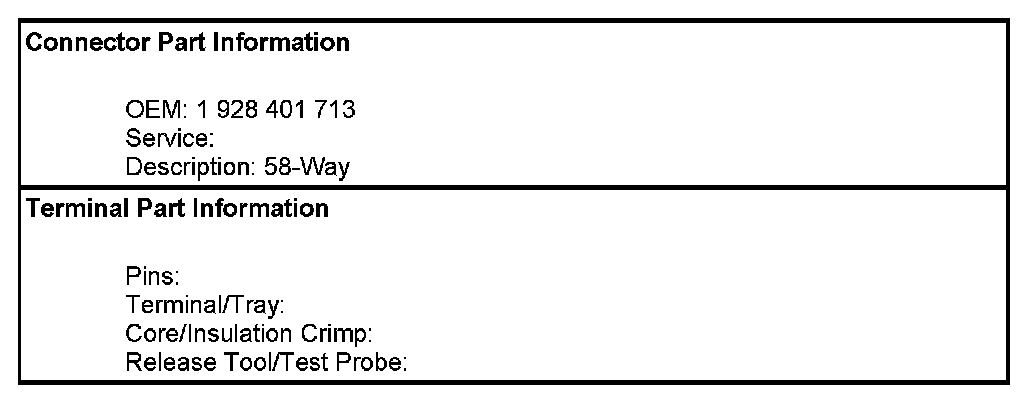

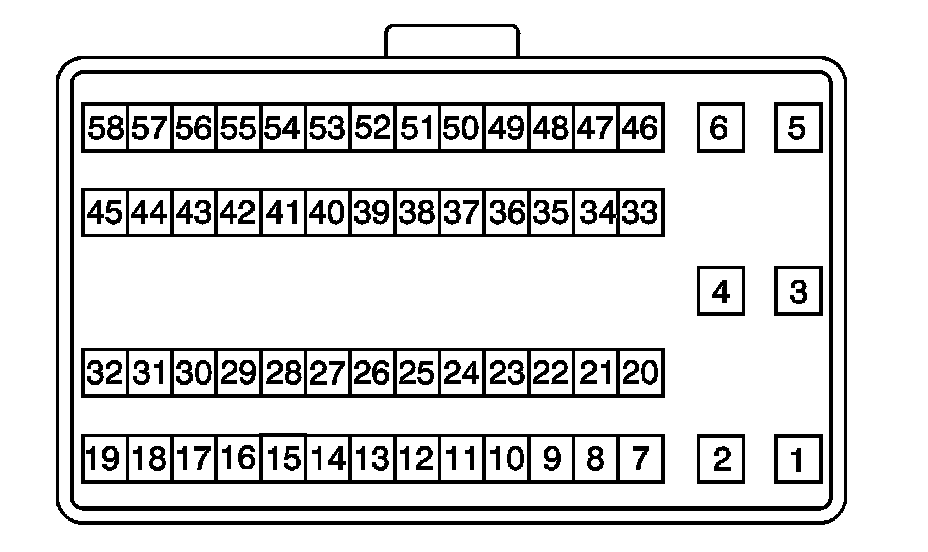

Engine Control Module (ECM) C2

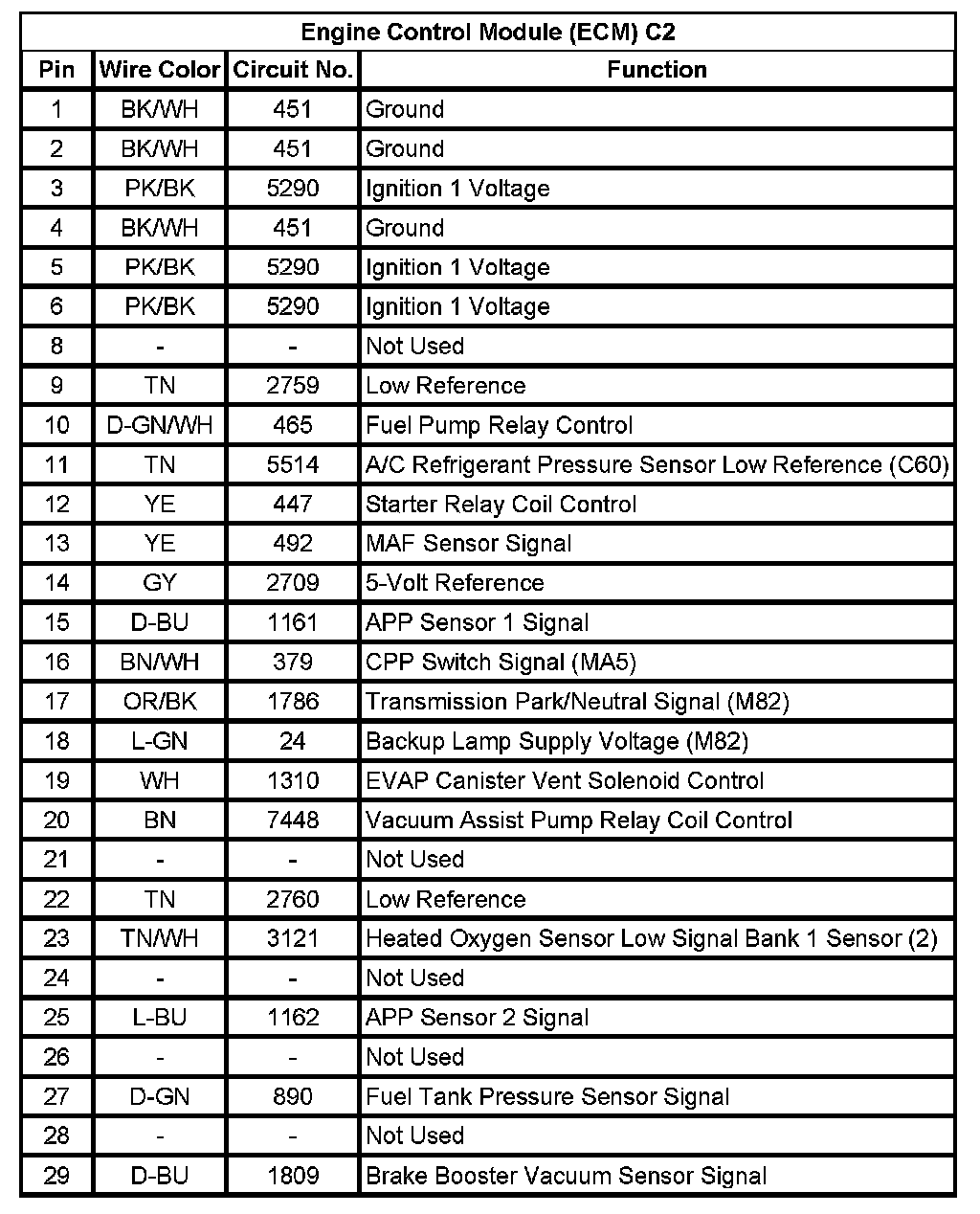

Engine Control Module (ECM) C2 (Pin 1 To 29):

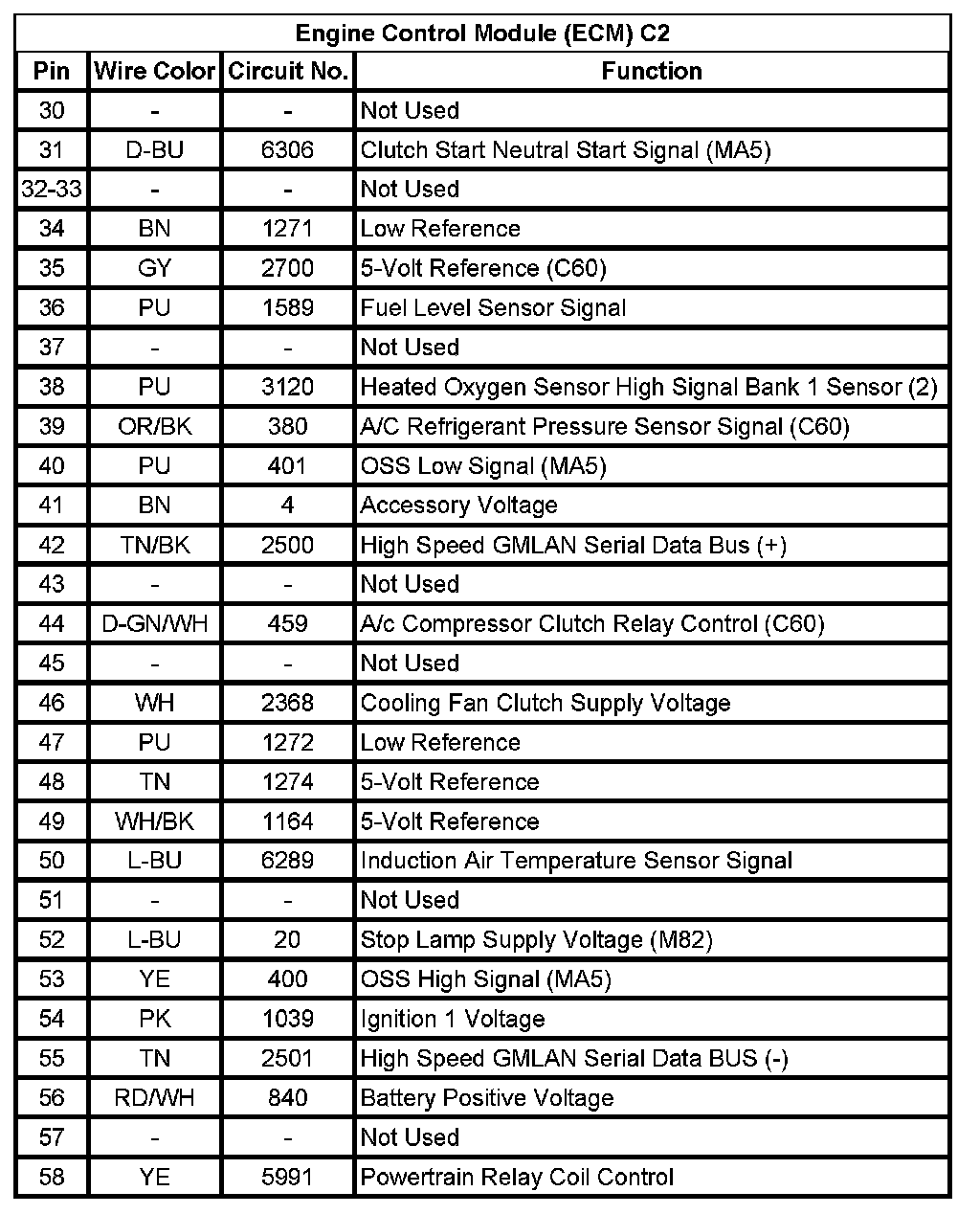

Engine Control Module (ECM) C2 (Pin 30 To 58):
