Home >> Pontiac >> 2007 >> Solstice L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

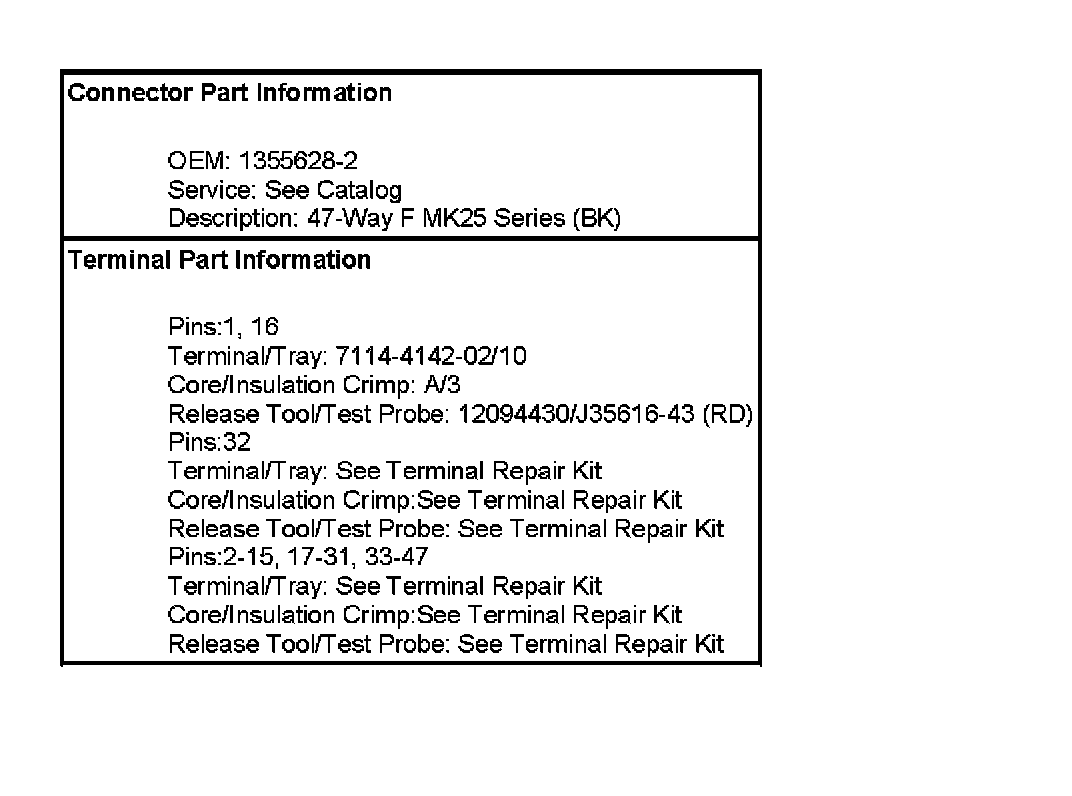

Electronic Brake Control Module (EBCM)(LNF)

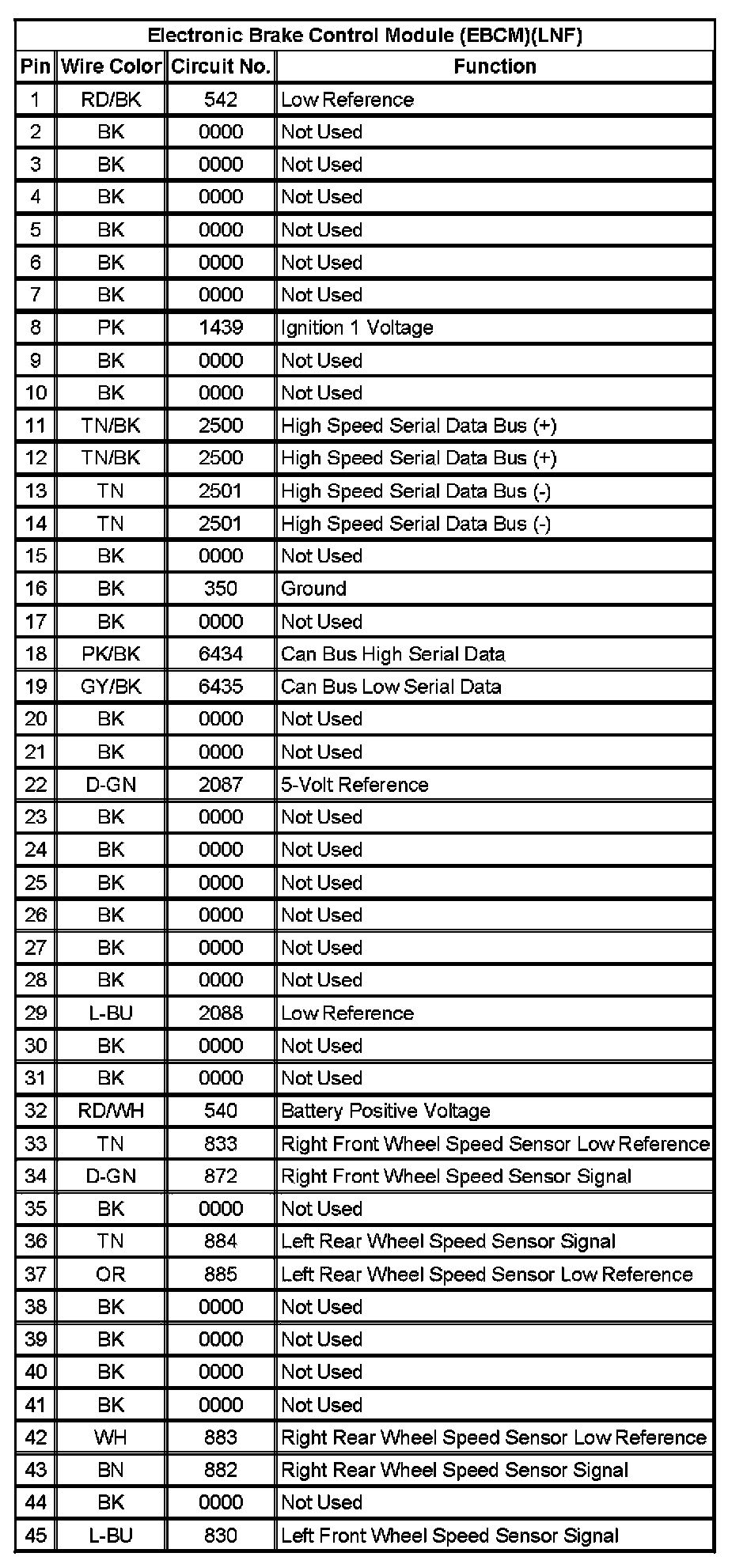

Electronic Brake Control Module (EBCM)(LNF) (Part 1):

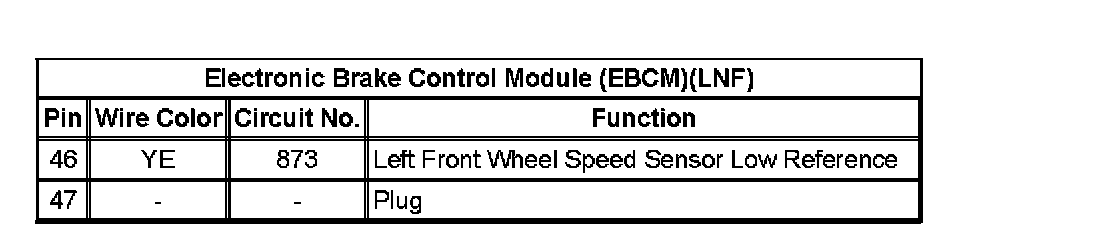

Electronic Brake Control Module (EBCM)(LNF) (Part 2):
