Home >> Pontiac >> 2007 >> Grand Prix V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Throttle Control Module

Electronic Throttle Control Module

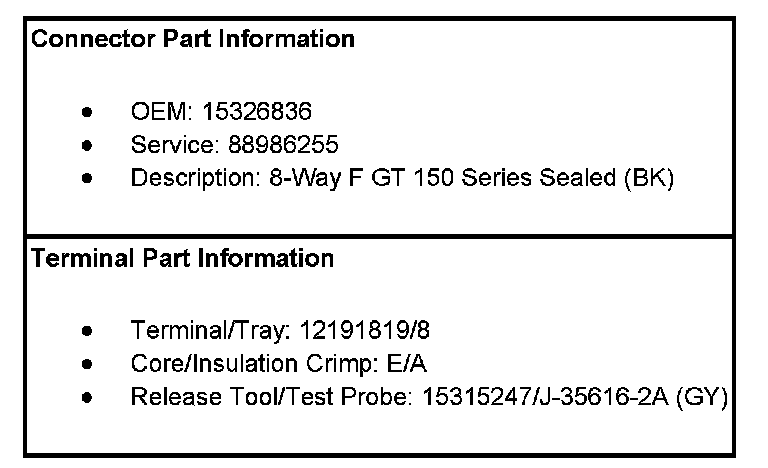

Engine Controls Connector End Views

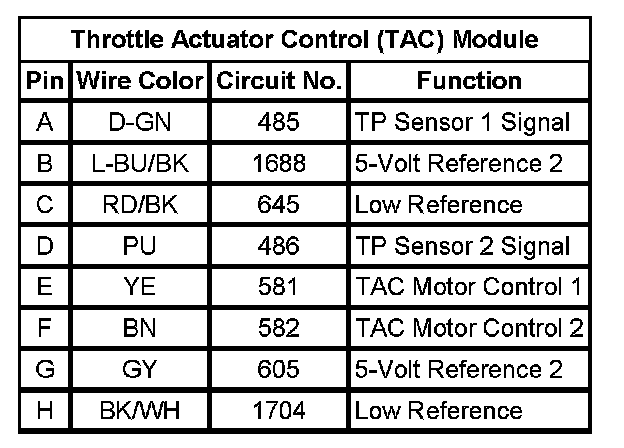

Throttle Actuator Control (TAC) Module
