Home >> Pontiac >> 2007 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Diagrams

Vehicle Speed Sensor: Diagrams

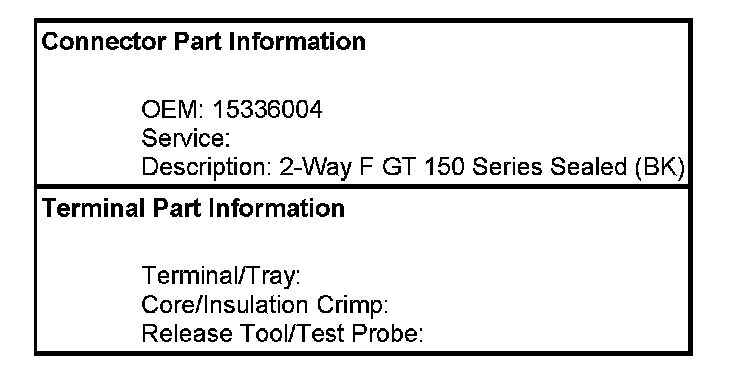

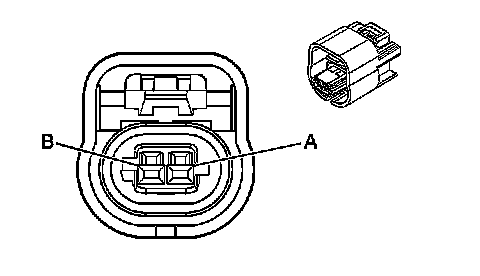

Automatic Transmission Related Connector End Views

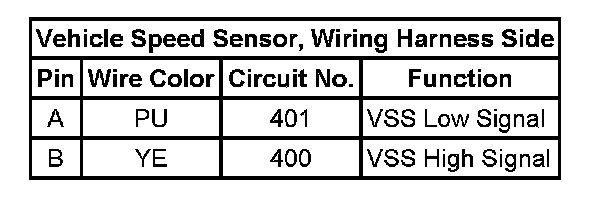

Vehicle Speed Sensor, Wiring Harness Side:
