Body Control Module
>>

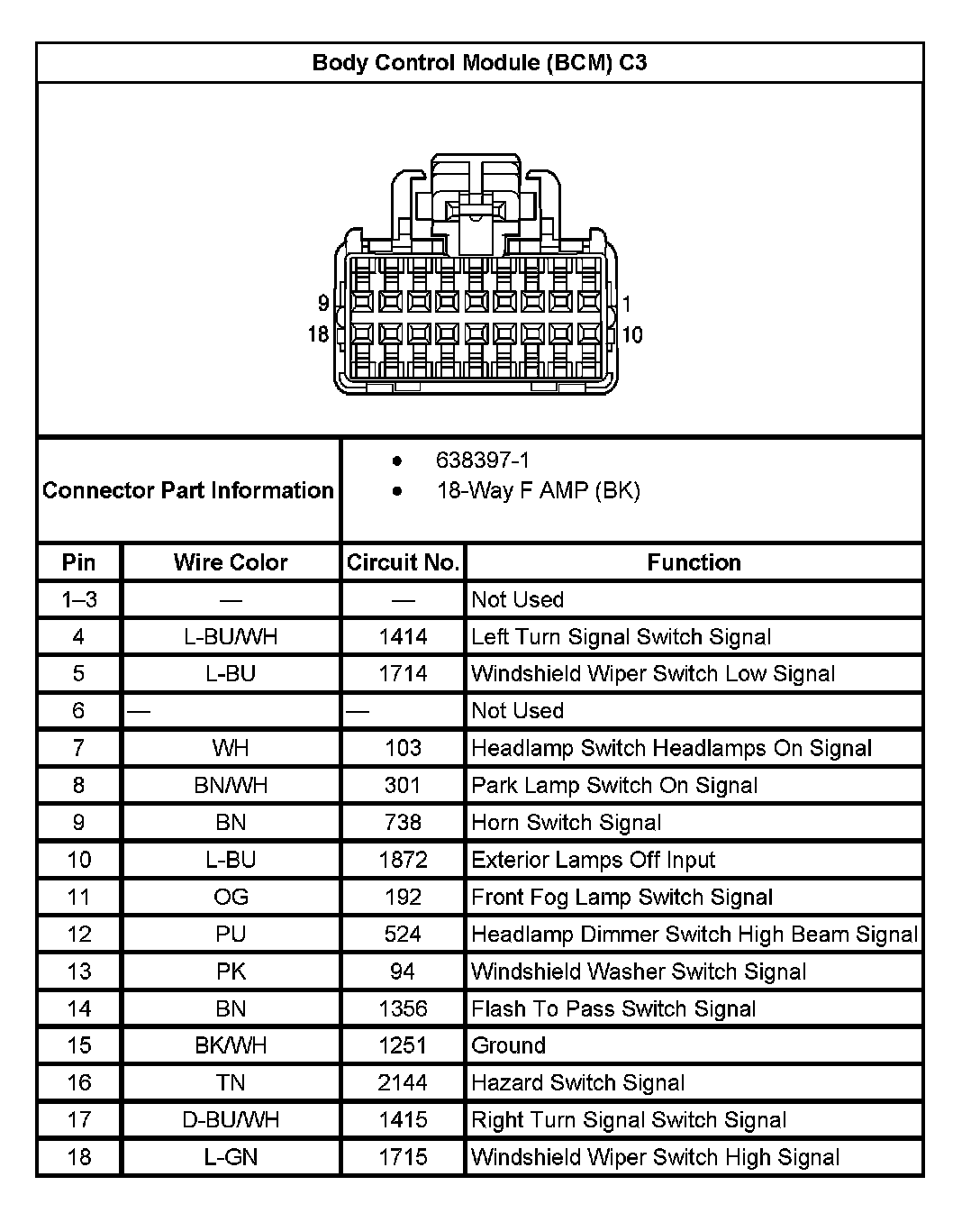

Body Control Module (BCM) C3
Body Control Module (BCM) C3
Body Control Module (BCM) C3:
