Control Module: Diagrams
Automatic Transmission Related Connector End Views

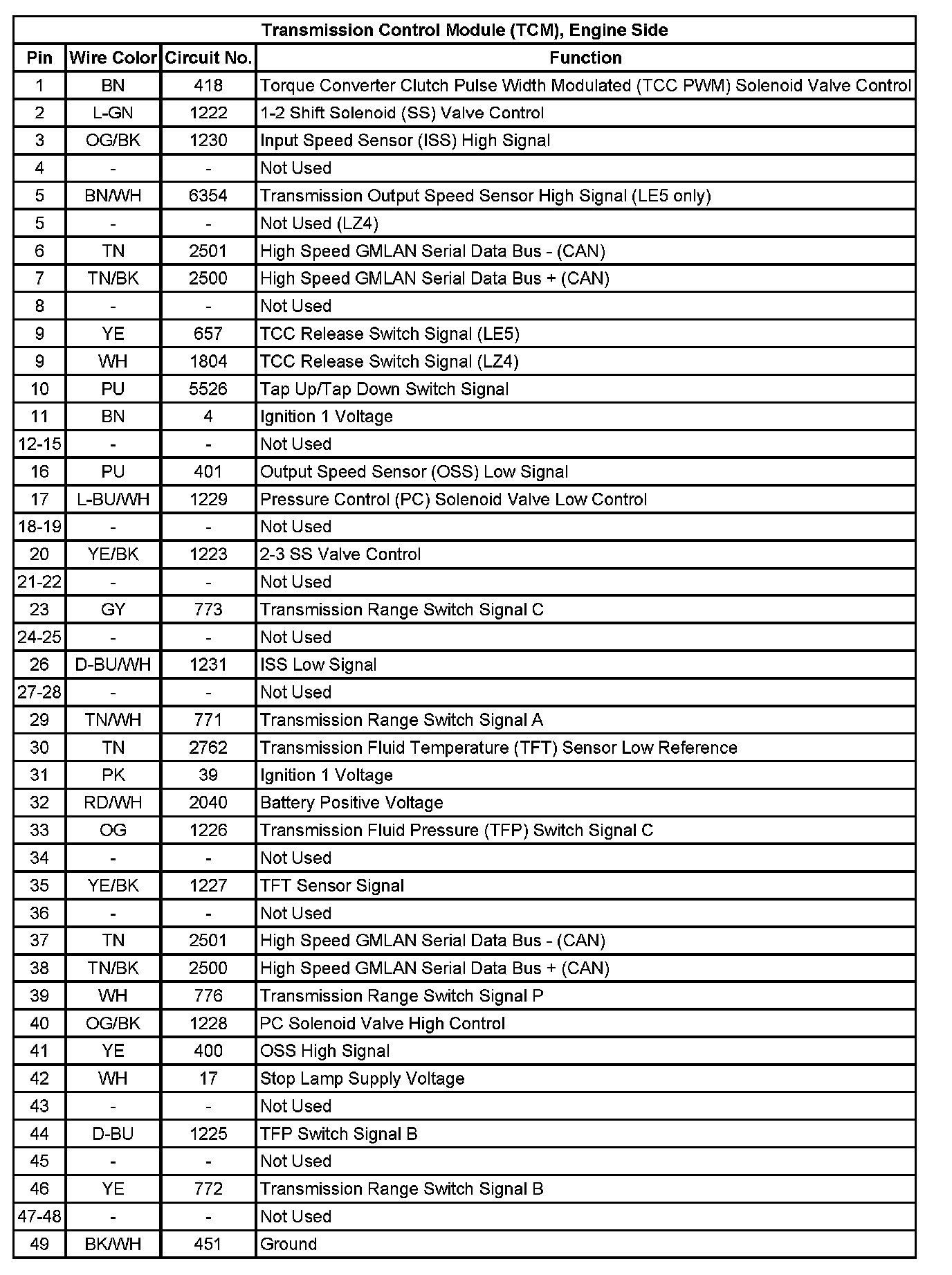

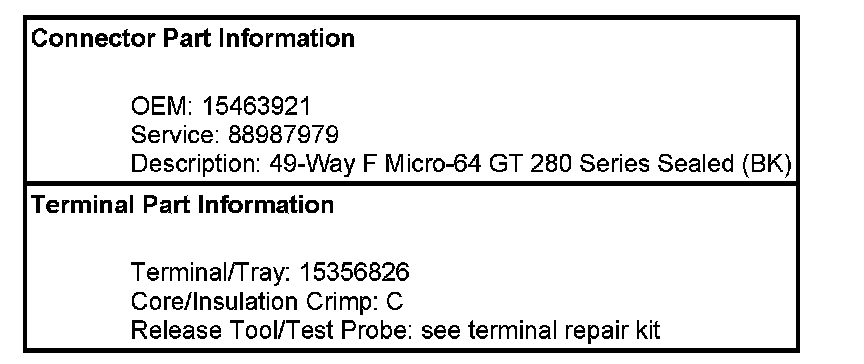

Transmission Control Module (TCM), Engine Side:
