Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> 4T65-E Automatic Transaxle >> Scan Tool Output Controls

Scan Tool Output Controls



Scan Tool Output Controls

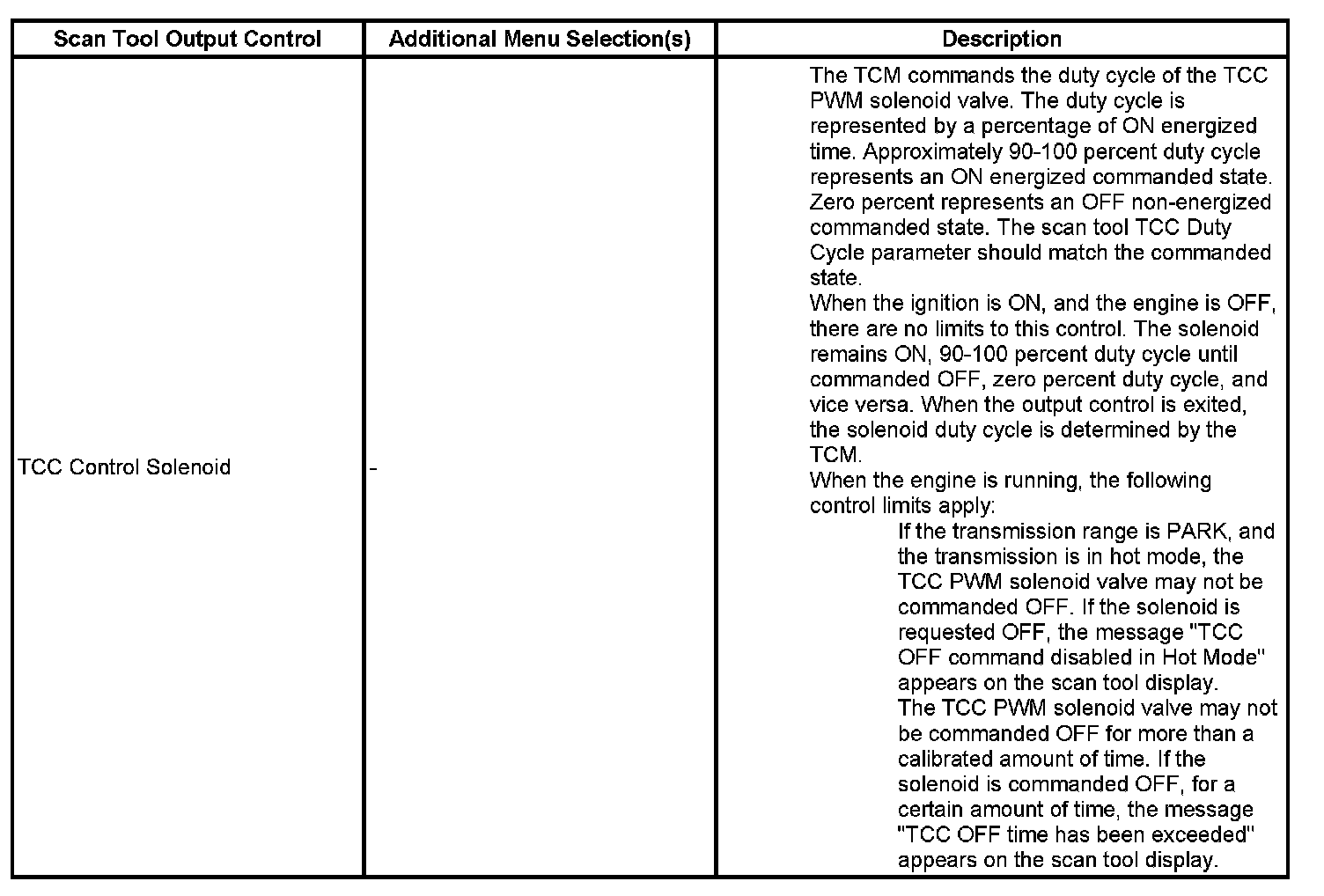

Scan Tool Output Controls 1:

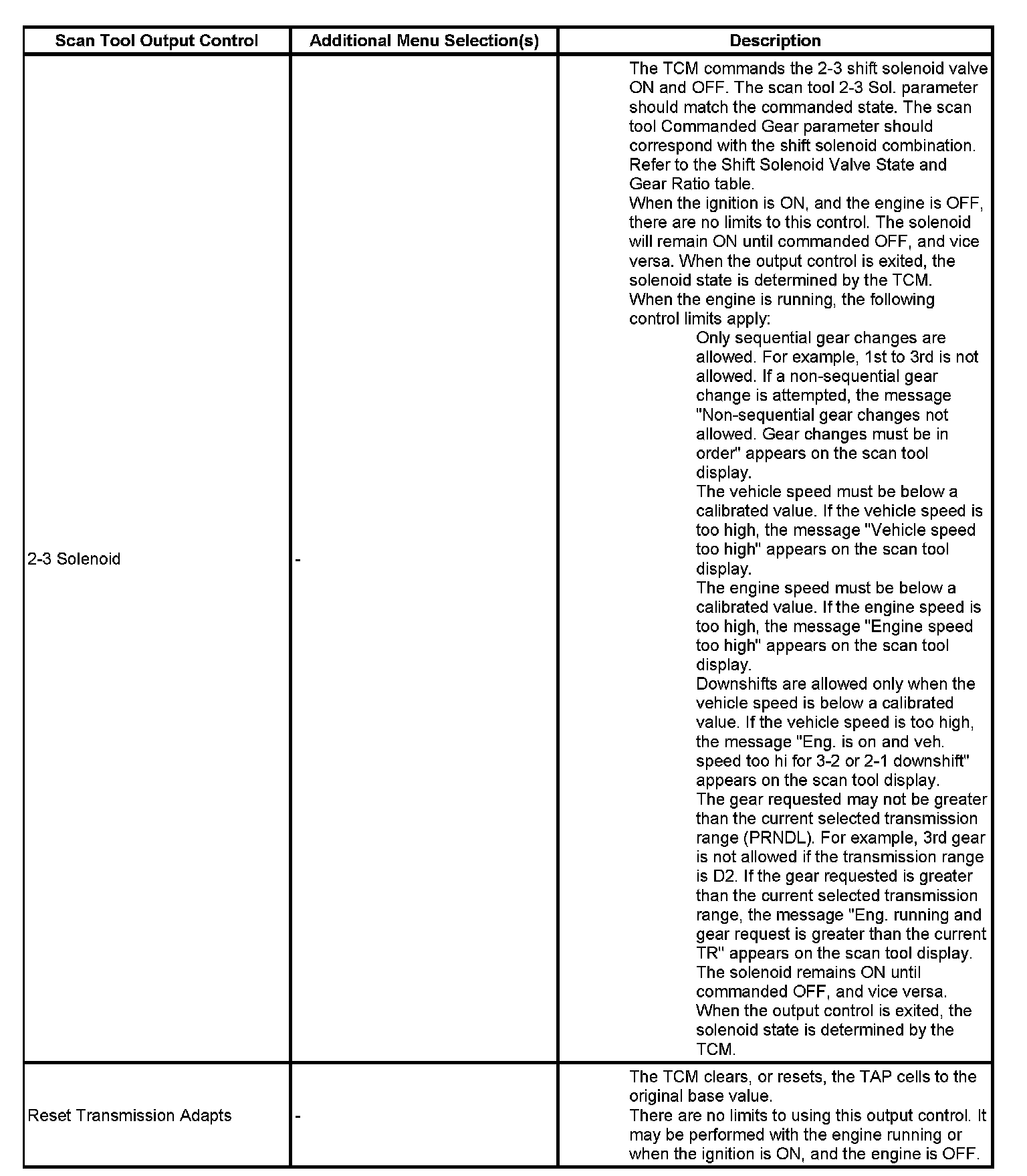

Scan Tool Output Controls 2:

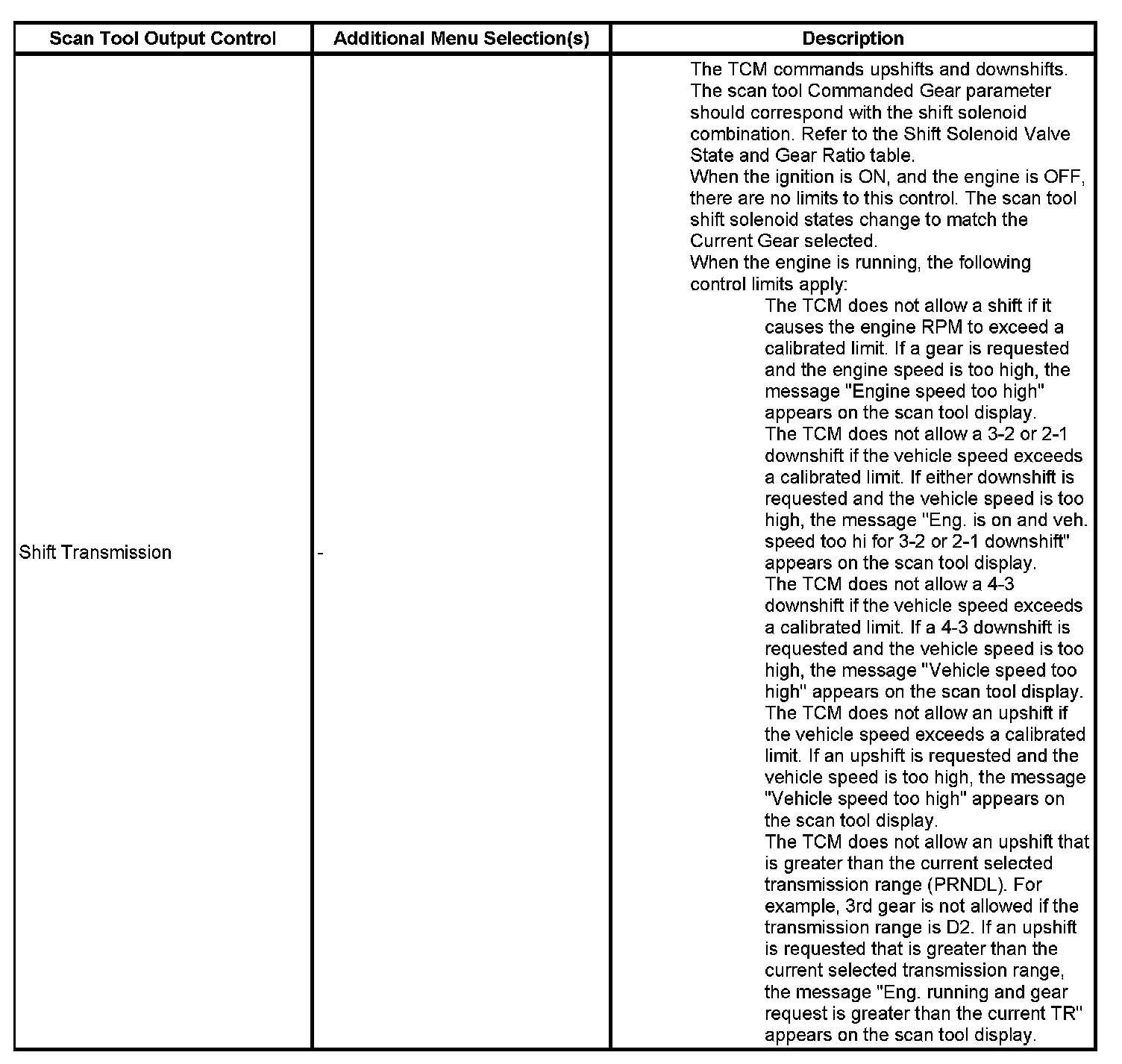

Scan Tool Output Controls 3:

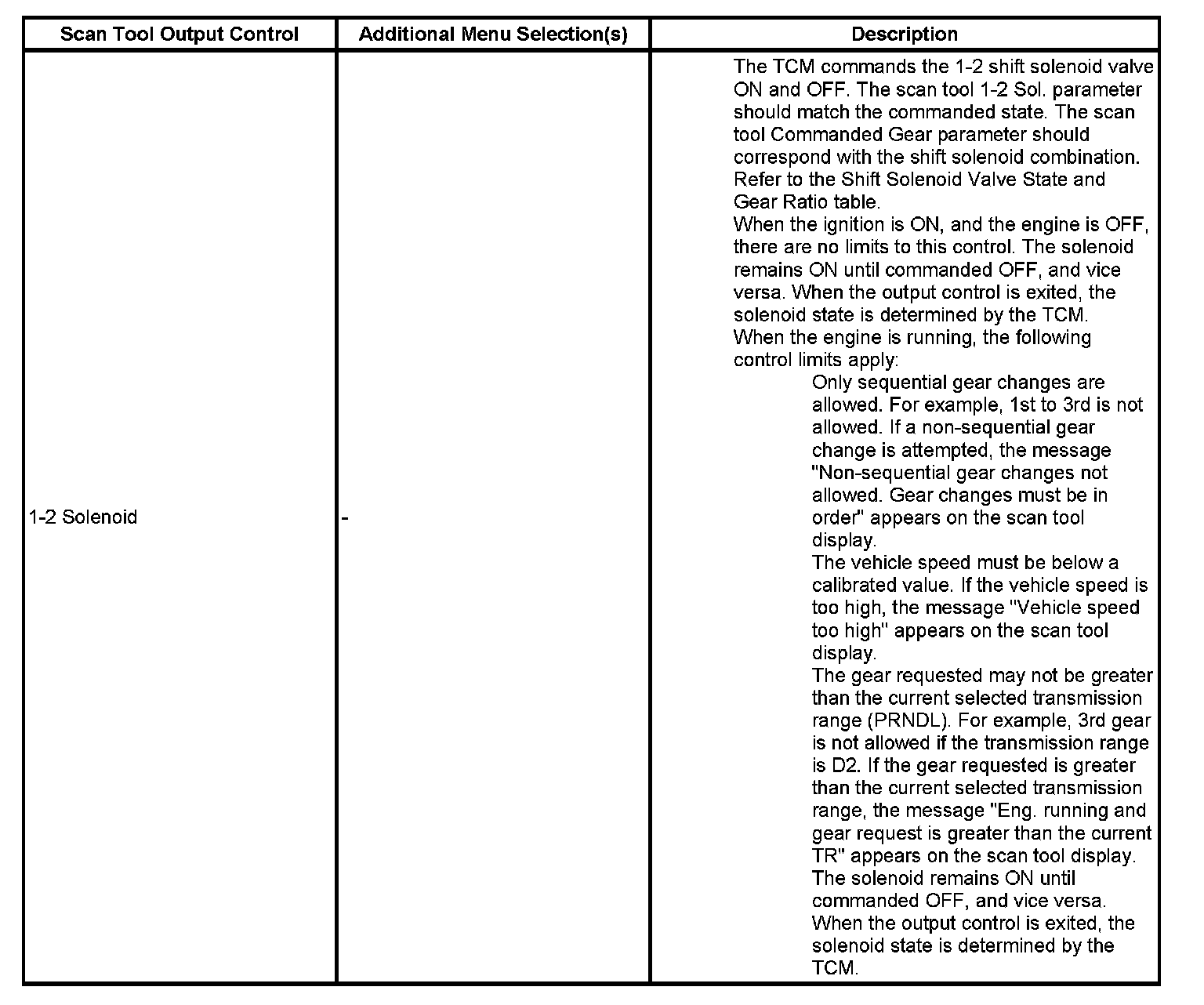

Scan Tool Output Controls 4:

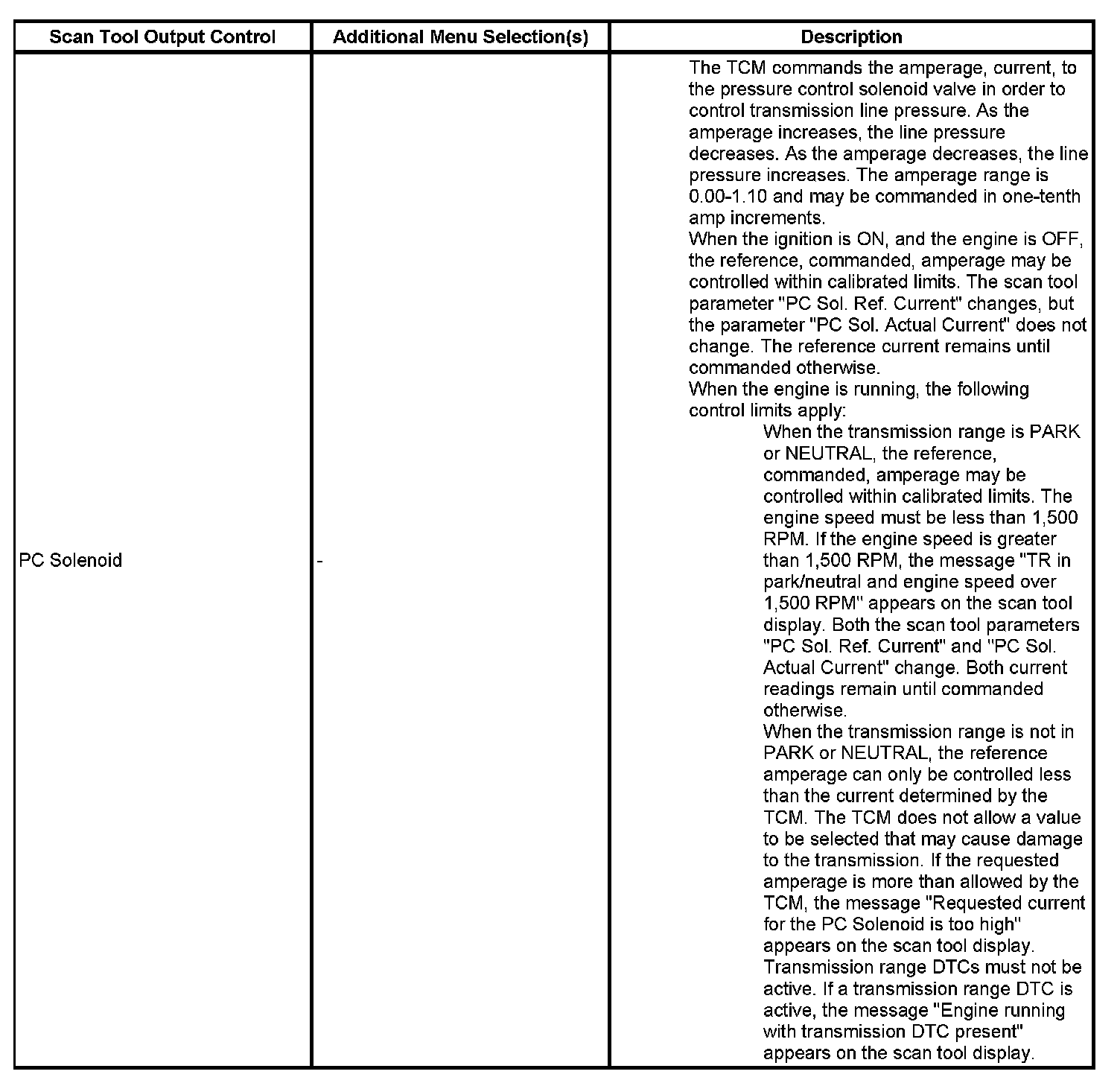

Scan Tool Output Controls 5:
