Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams

Transmission Position Sensor/Switch: Diagrams

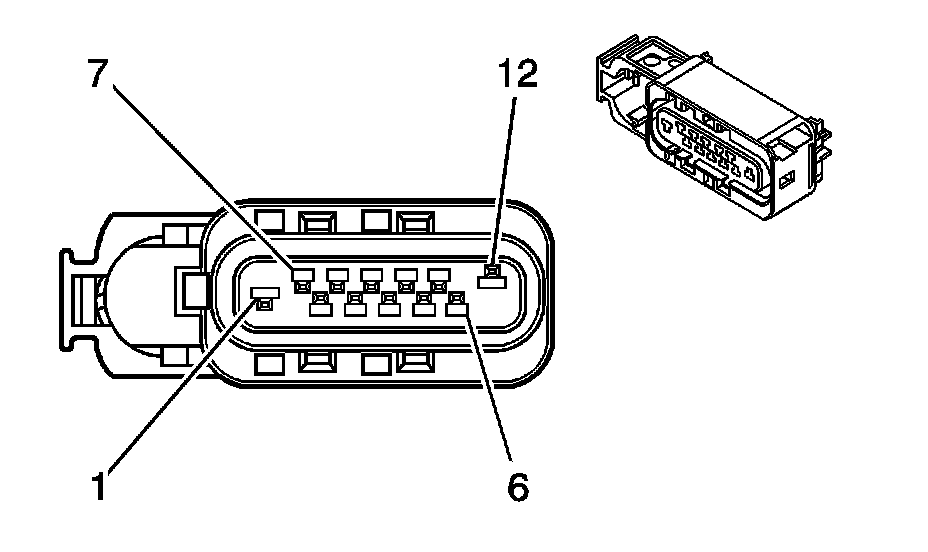

Automatic Transmission Related Connector End Views

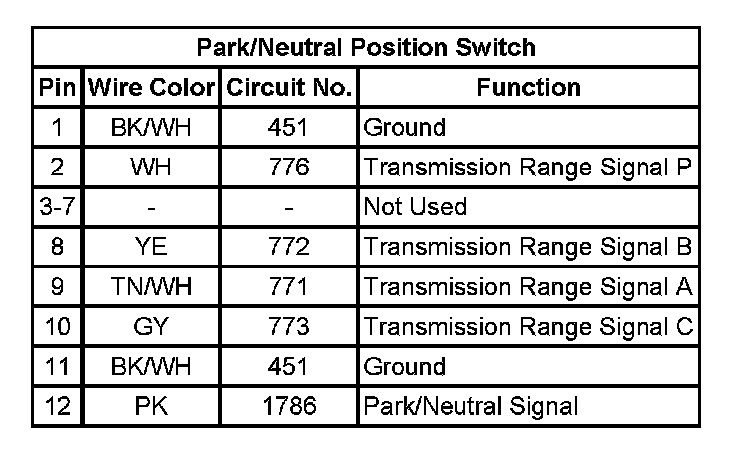

Park/Neutral Position Switch:
