Body Control Module (BCM) C2

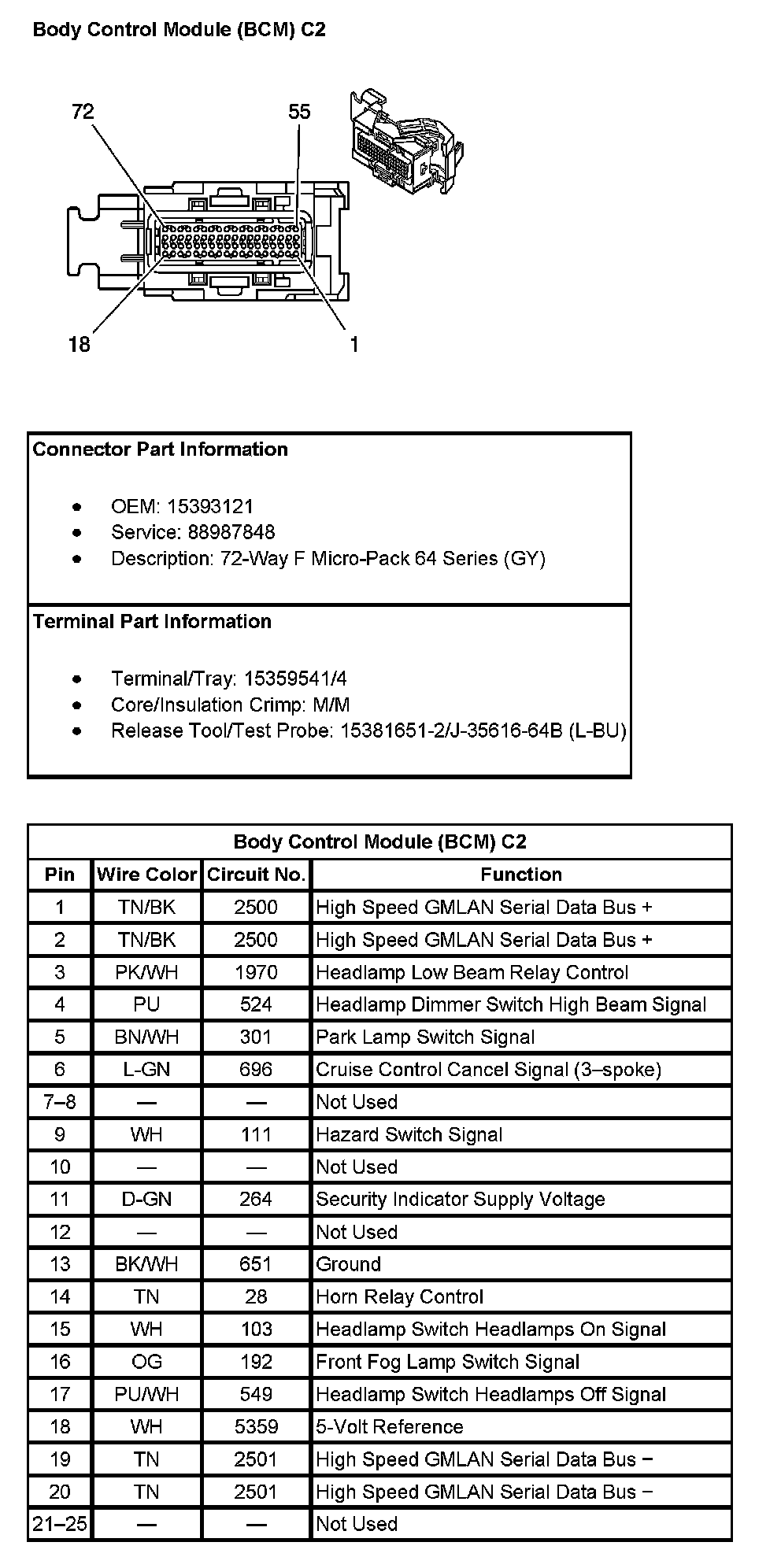

Body Control Module (BCM) C2 (Pin 1 To 25):

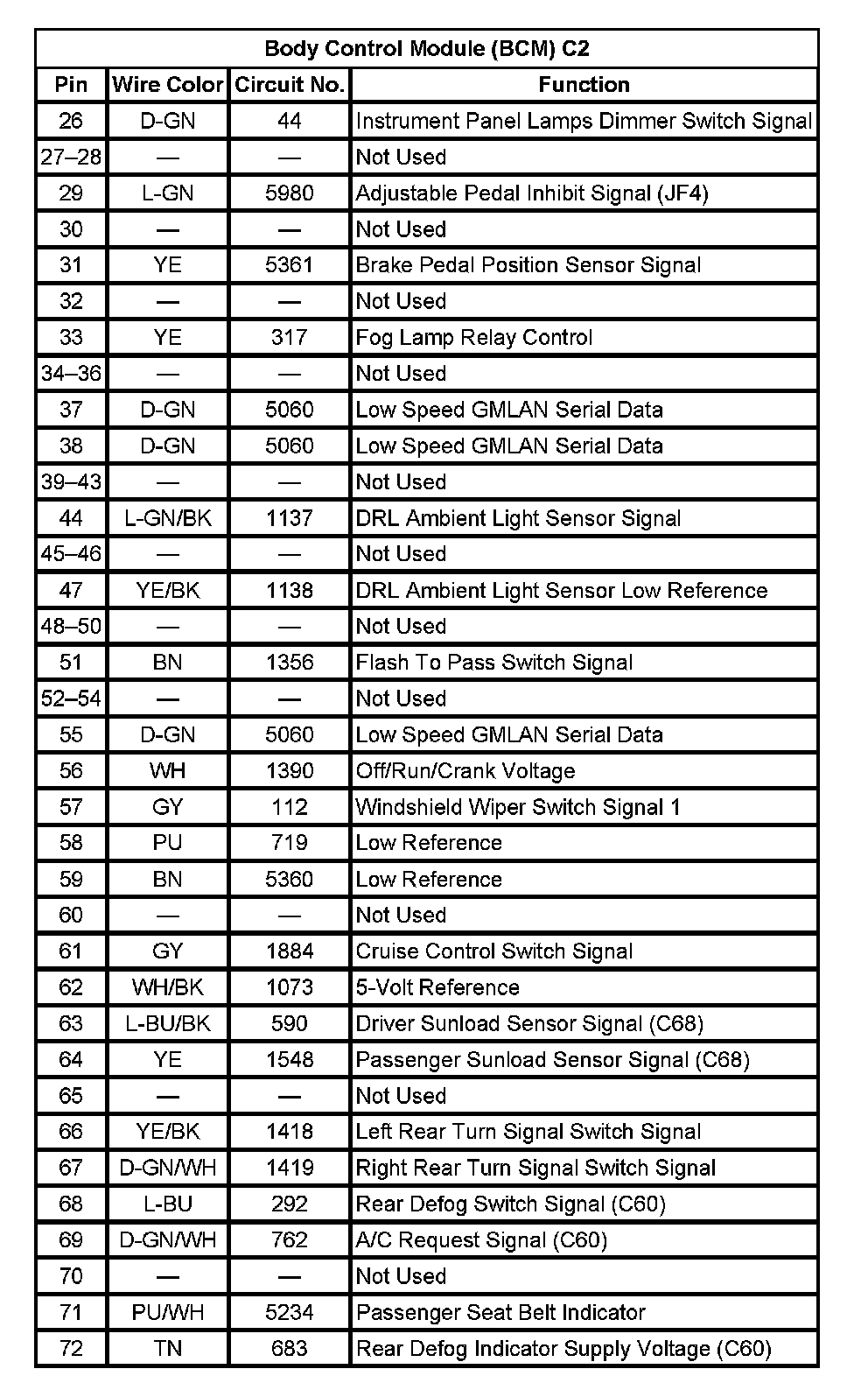

Body Control Module (BCM) C2 (Pin 26 To 72):
