Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Heated Seat Control Module - Passenger

Heated Seat Control Module - Passenger

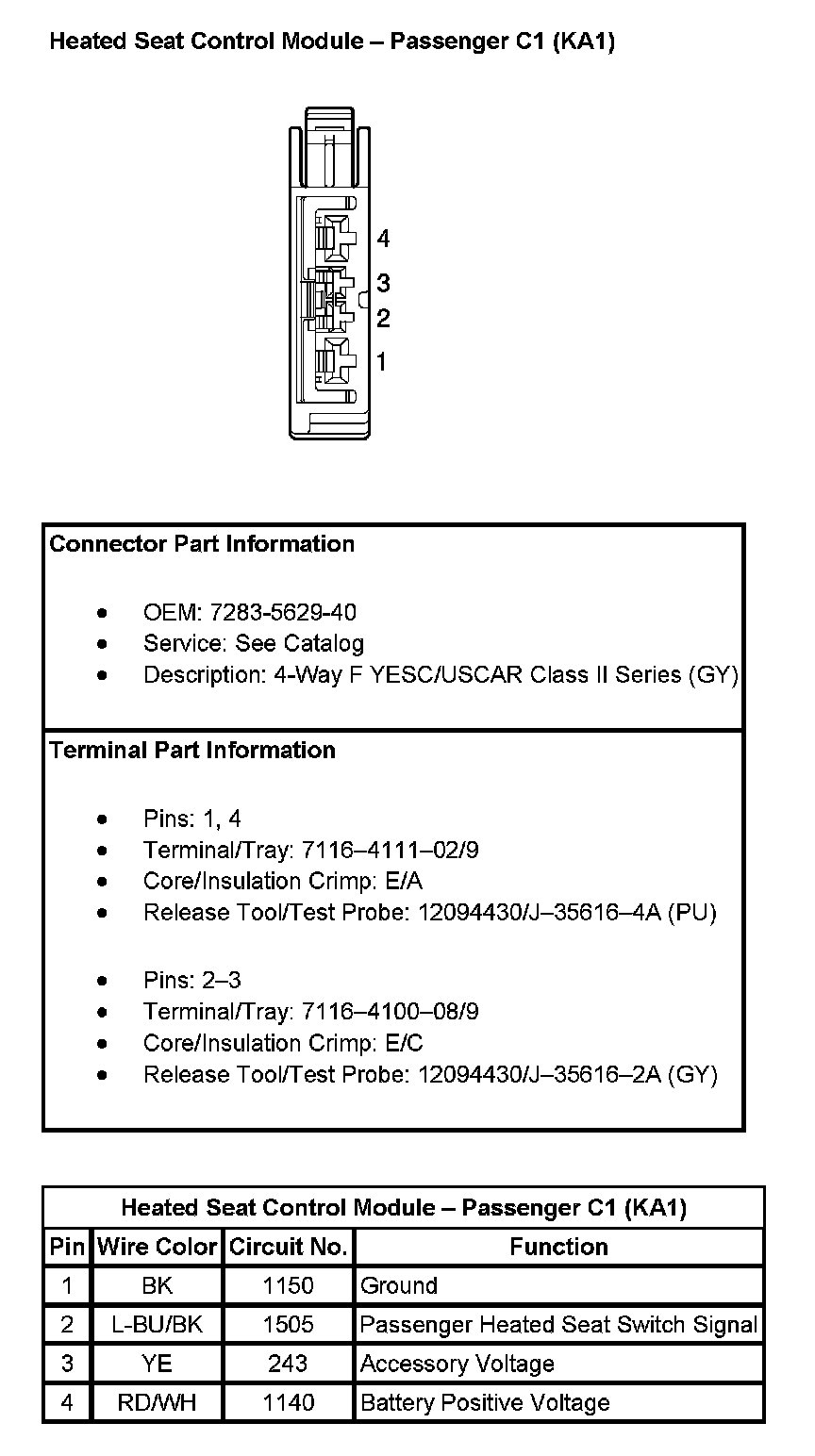

Heated Seat Control Module - Passenger C1 (with RPO Code KA1):

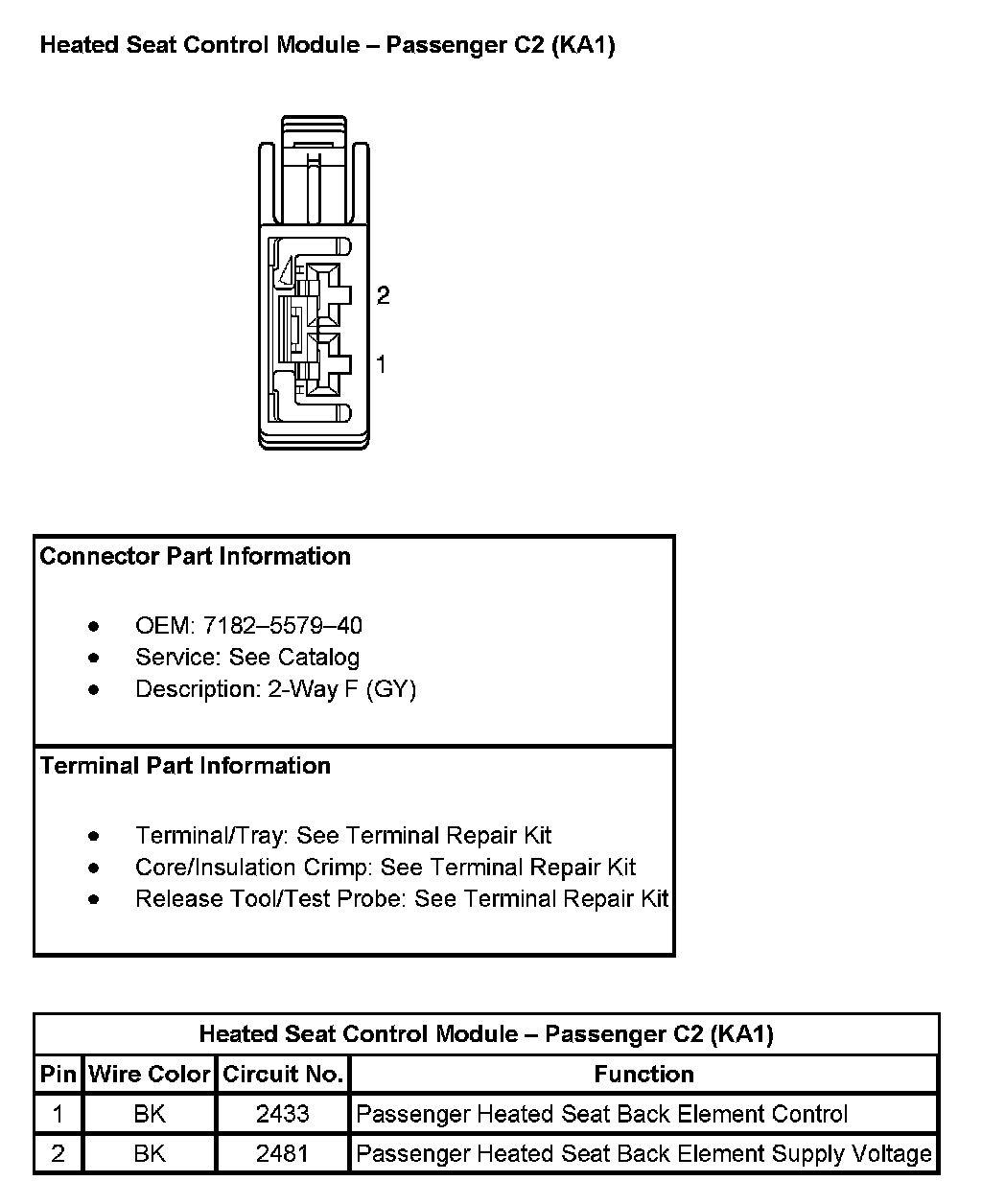

Heated Seat Control Module - Passenger C2 (with RPO Code KA1):

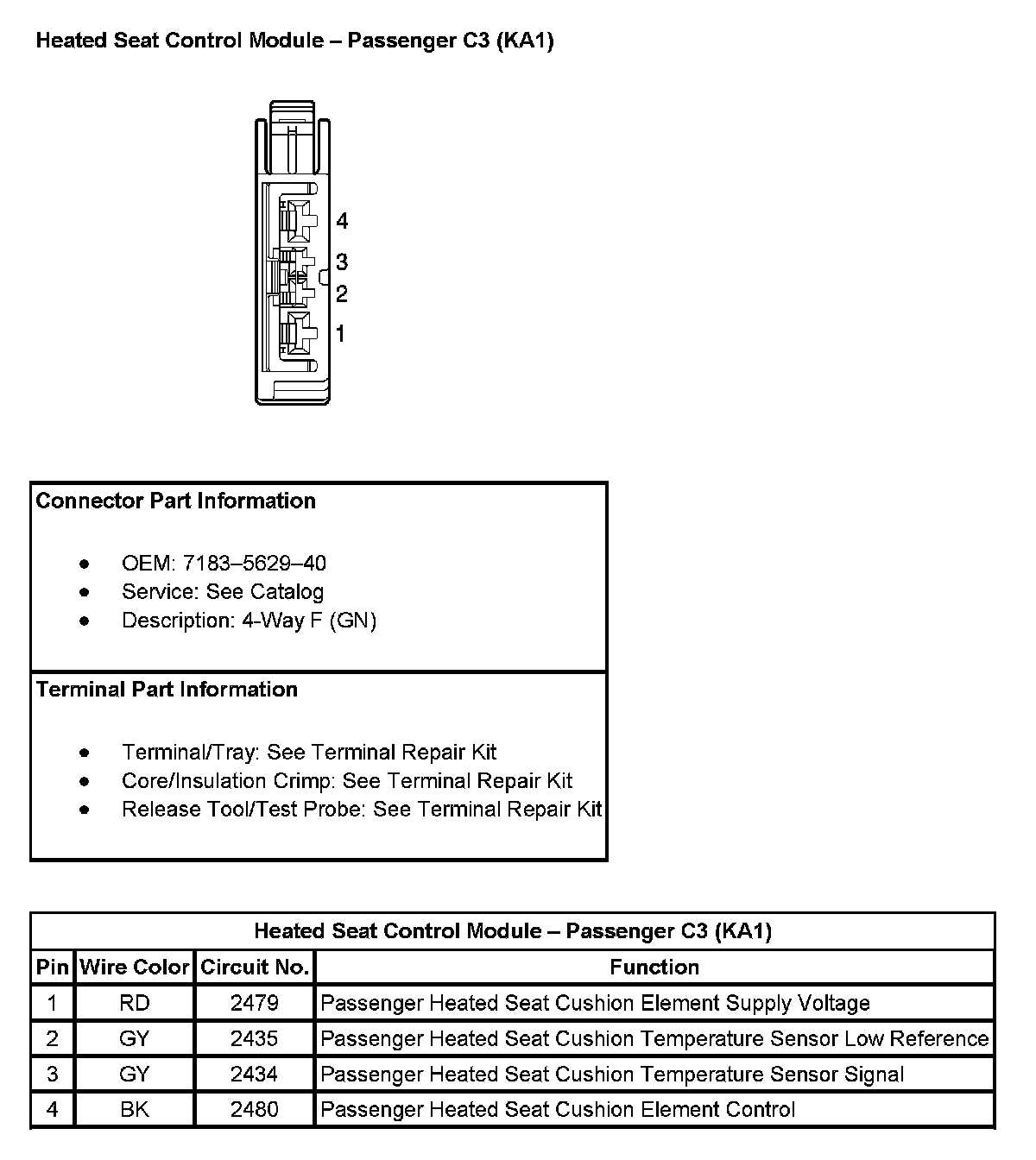

Heated Seat Control Module - Passenger C3 (with RPO Code KA1):
