Map Light
Map Light

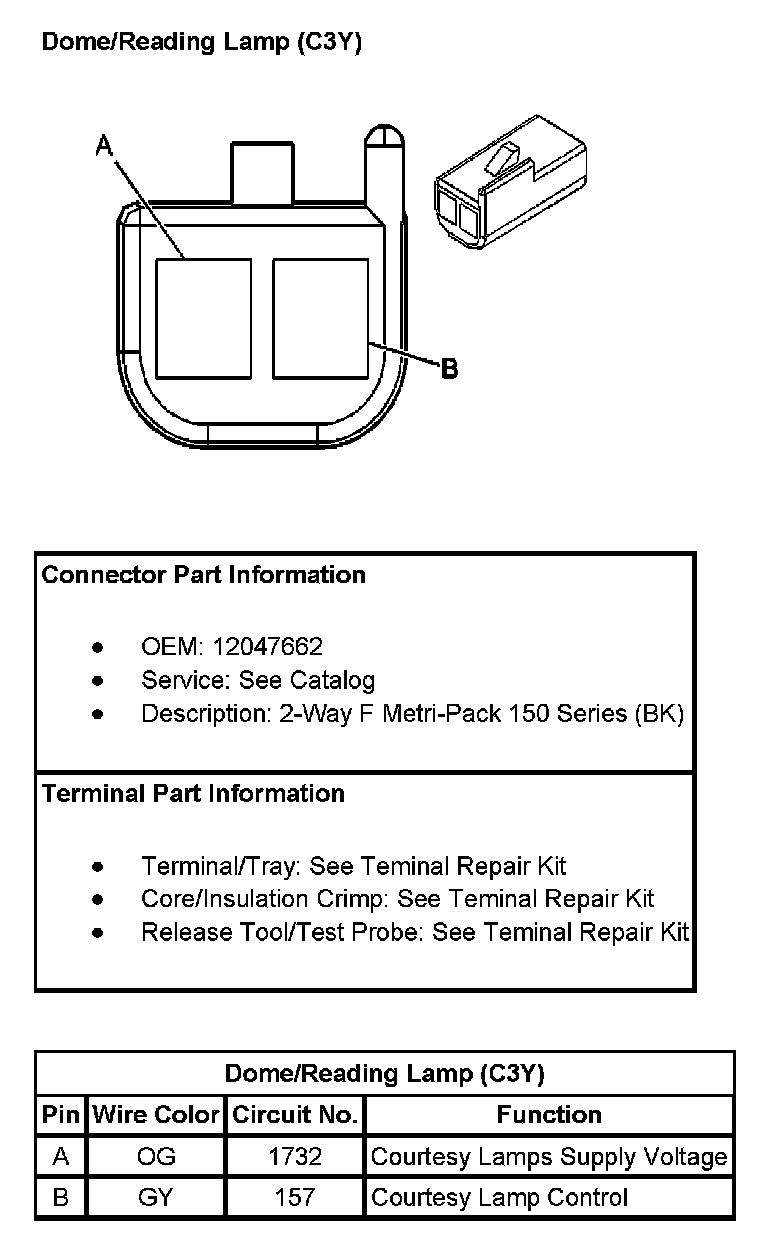

Dome/Reading Lamp (with RPO Code C3Y):

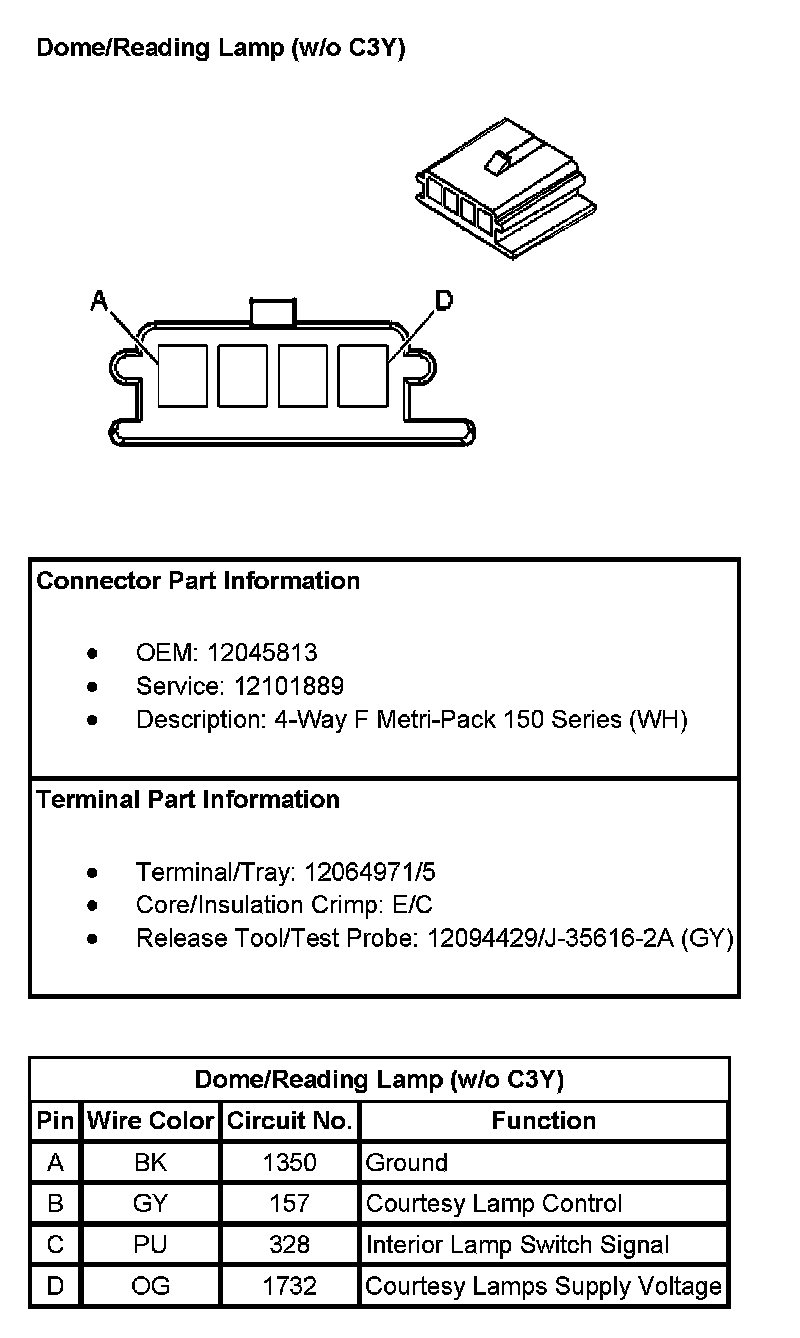

Dome/Reading Lamp (without RPO Code C3Y):

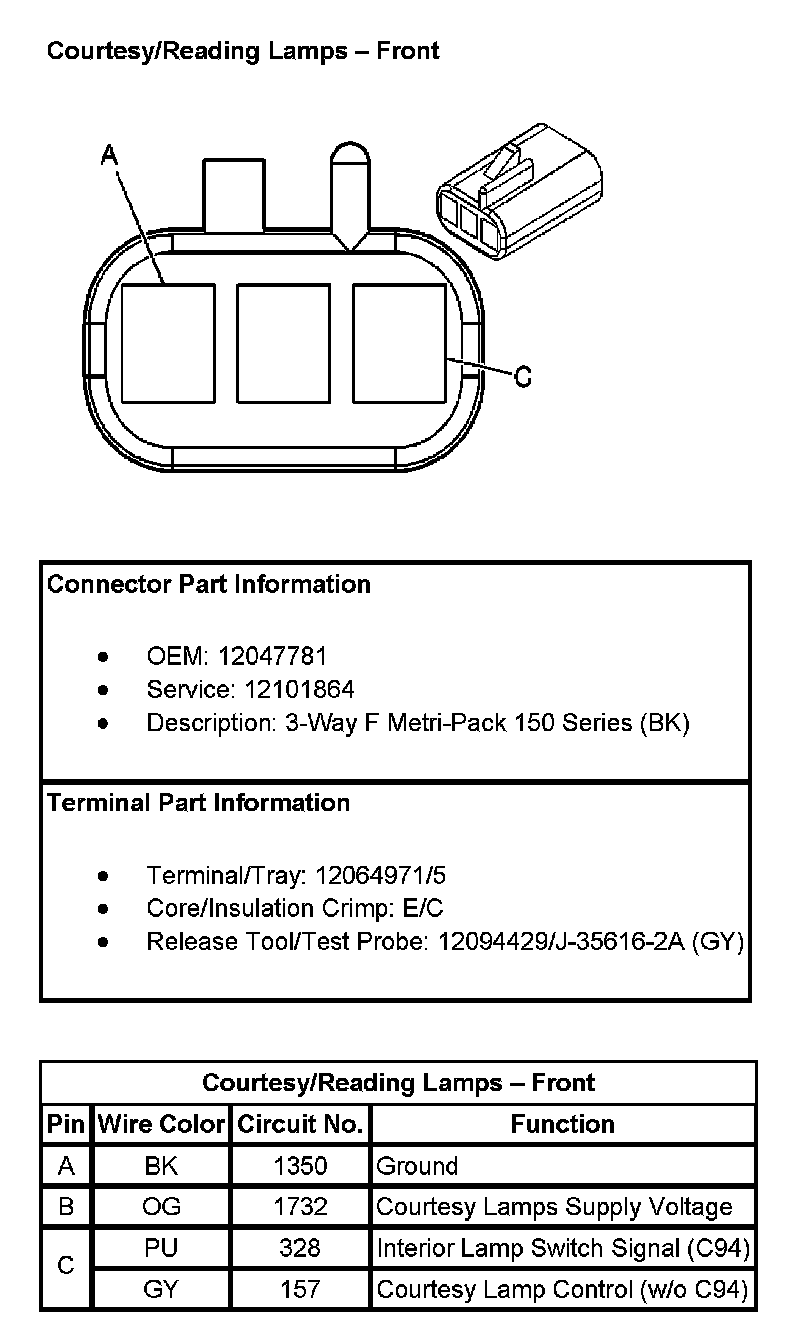

Courtesy/Reading Lamps - Front:
