Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lateral Accelerometer

Lateral Accelerometer

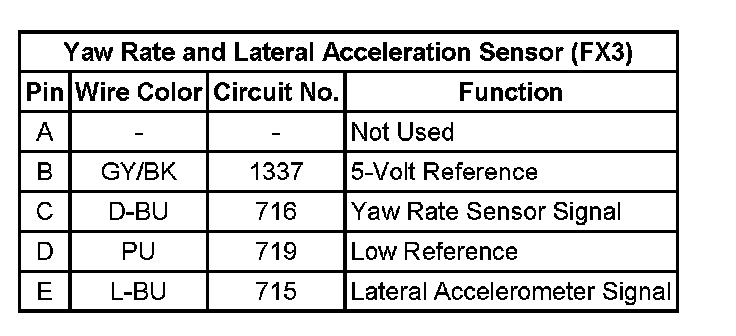

Yaw Rate and Lateral Acceleration Sensor (FX3)







Yaw Rate And Lateral Acceleration Sensor (FX3):
