Impact Sensor

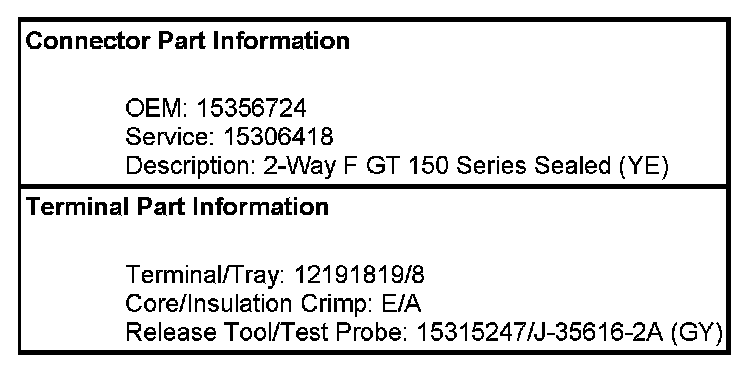

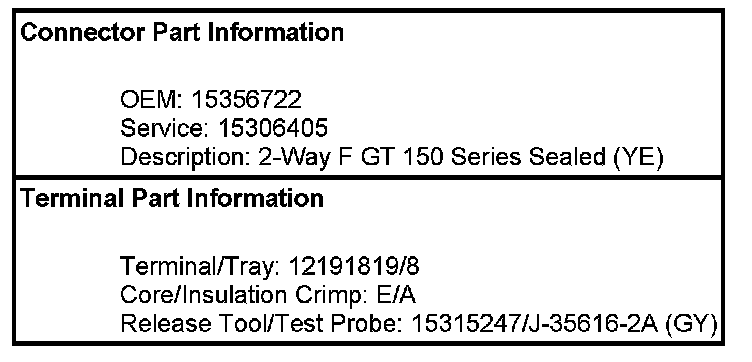

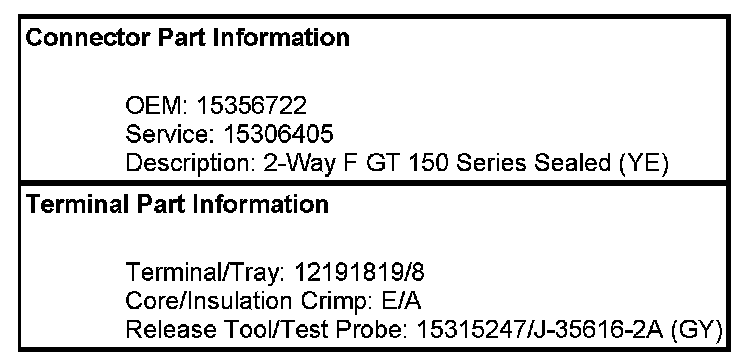

SIR Connector End Views

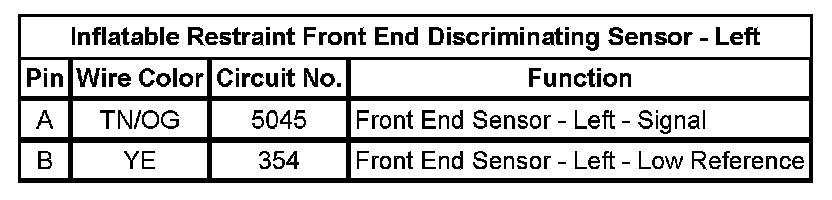

Inflatable Restraint Front End Discriminating Sensor - Left

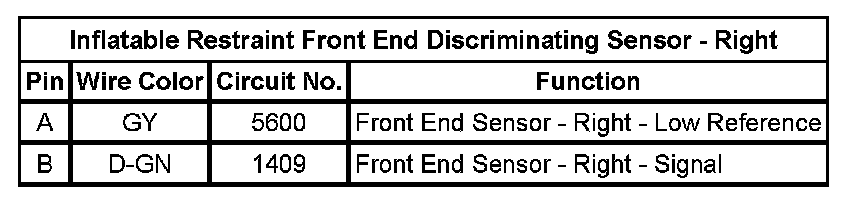

Inflatable Restraint Front End Discriminating Sensor - Right

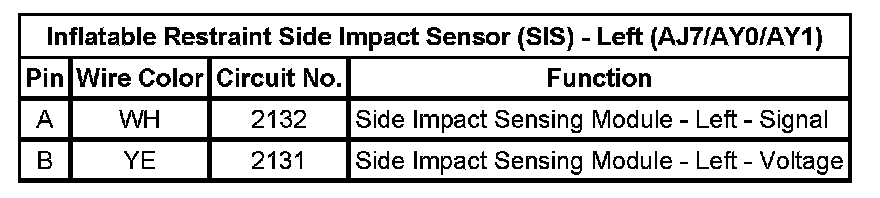

Inflatable Restraint Side Impact Sensor (SIS) - Left (AJ7/AY0/AY1)

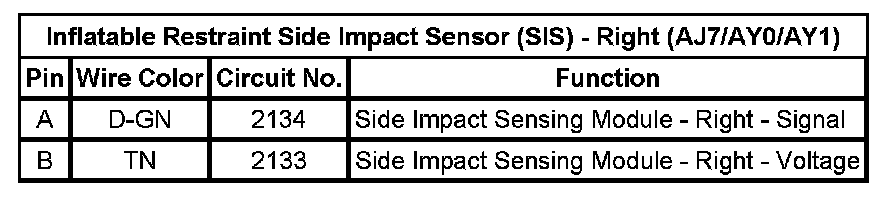

Inflatable Restraint Side Impact Sensor (SIS) - Right (AJ7/AY0/AY1)
