Pontiac
>>
2007
>>
G6 L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch

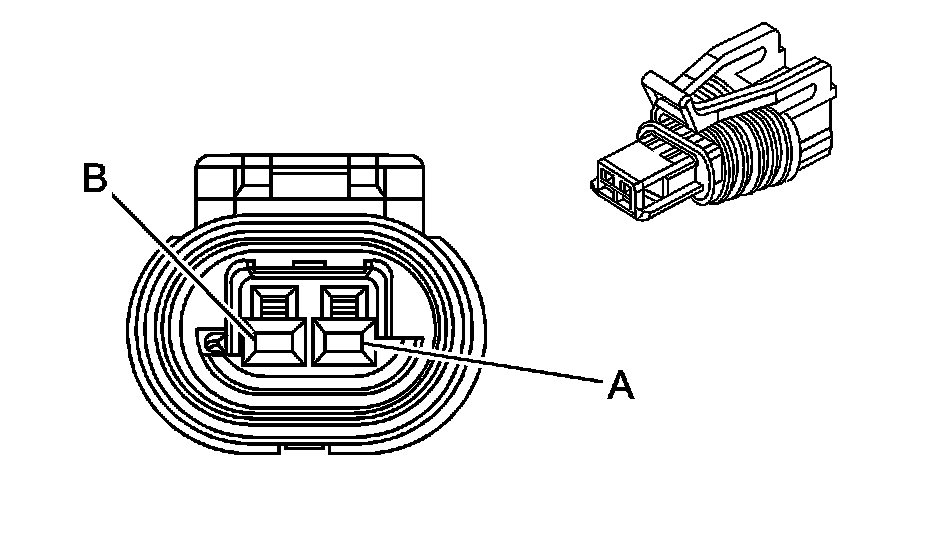

Hydraulic Brake Connector End Views

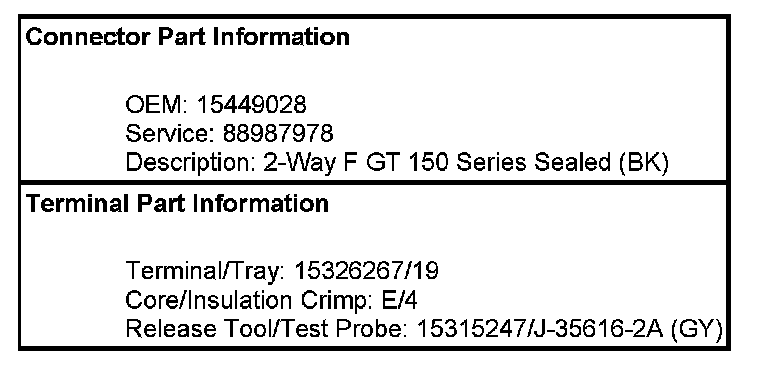

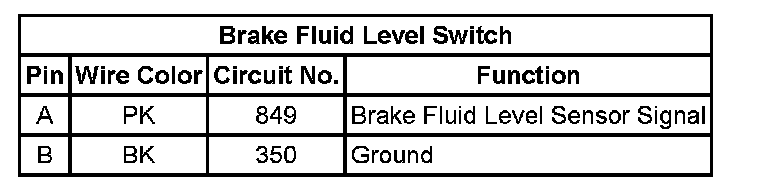

Brake Fluid Level Switch
Brake Fluid Level Switch:
