Air Bag Control Module



SIR Connector End Views

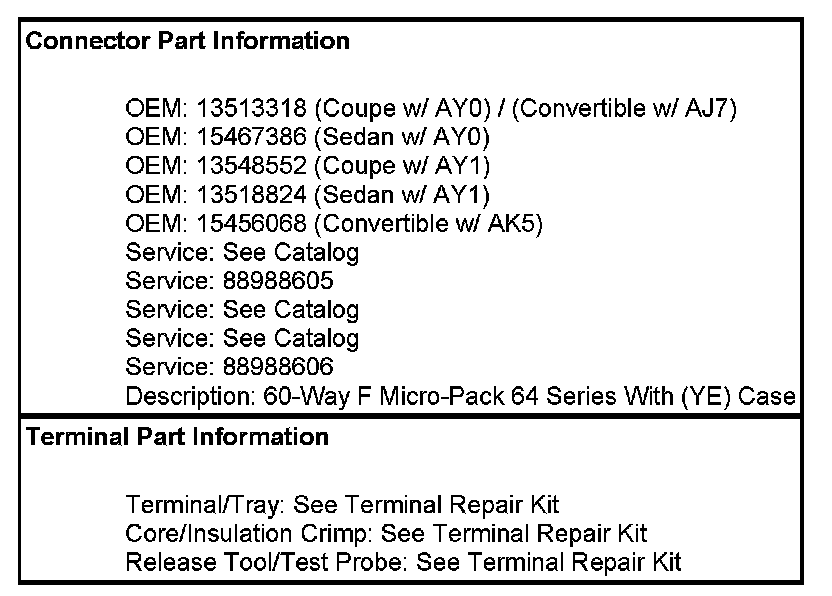

Inflatable Restraint Sensing and Diagnostic Module (SDM)

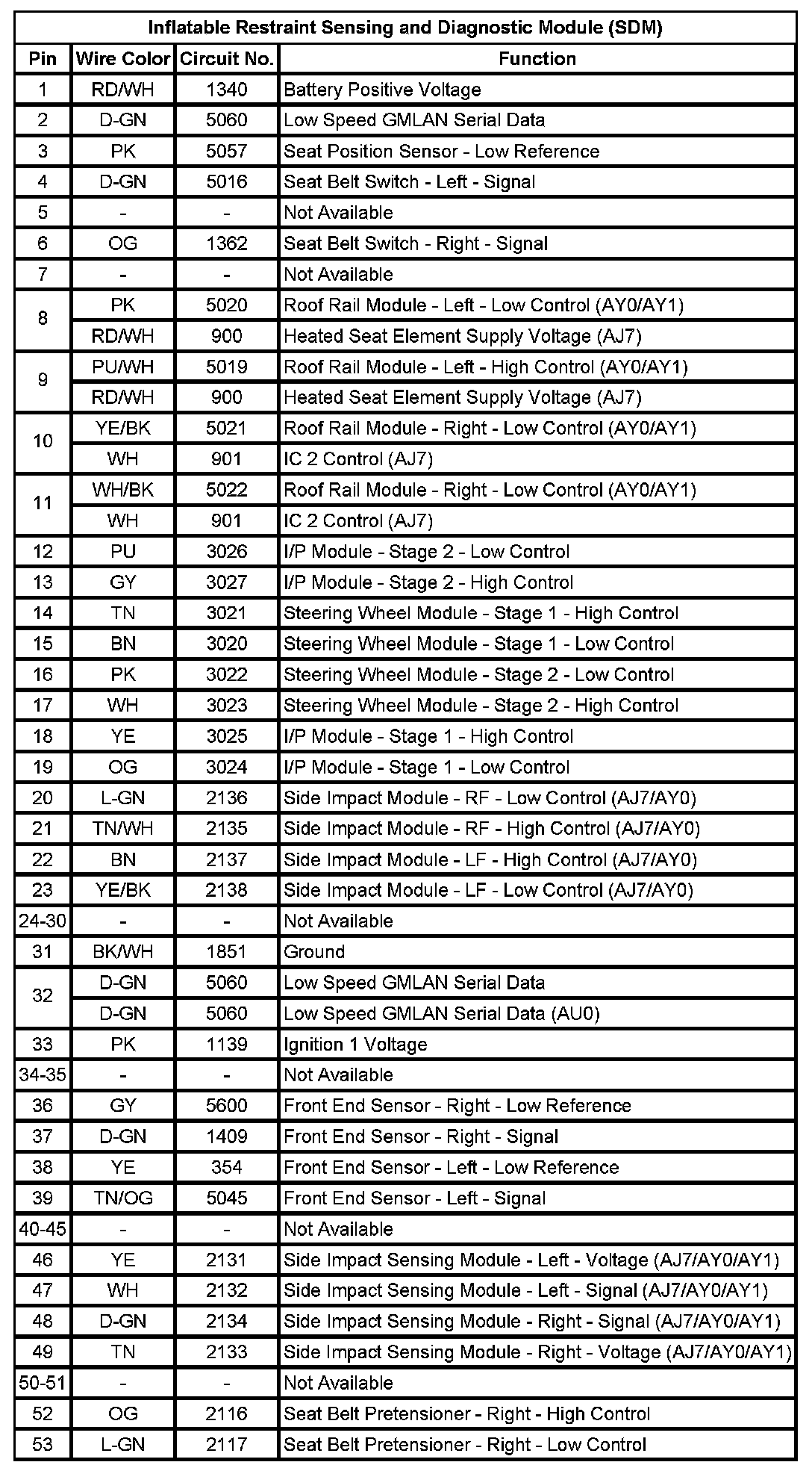

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Pin 1 To 53):

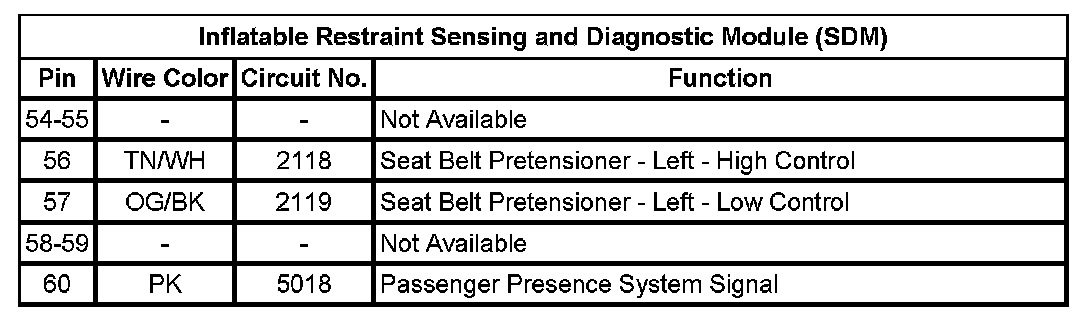

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Pin 54 To 60):
