Ignition Control Module

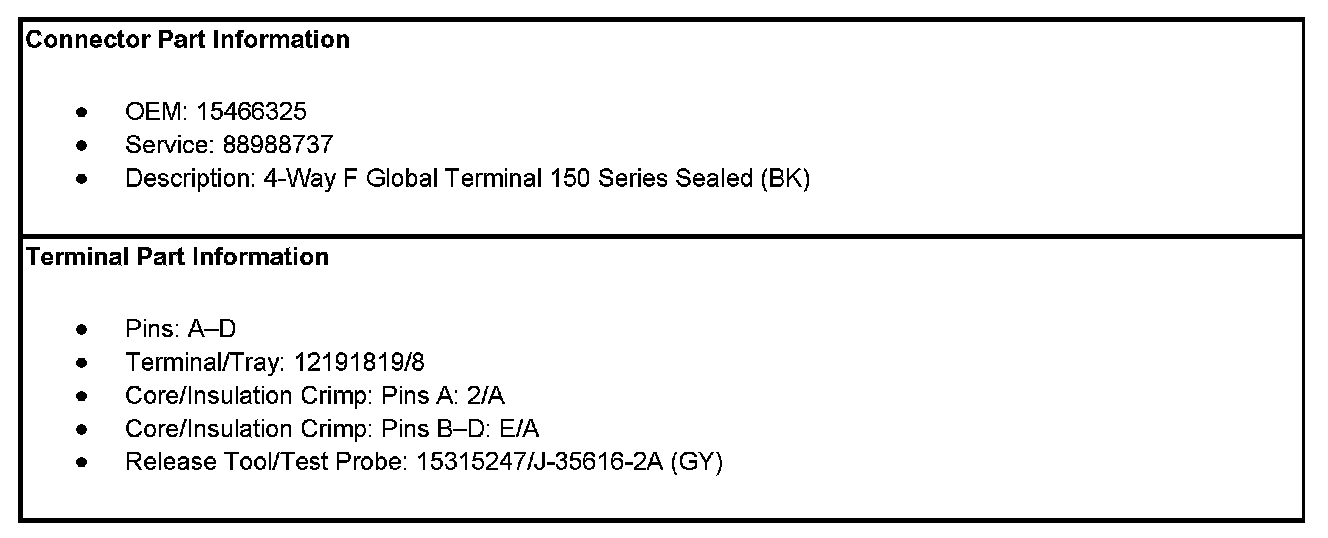

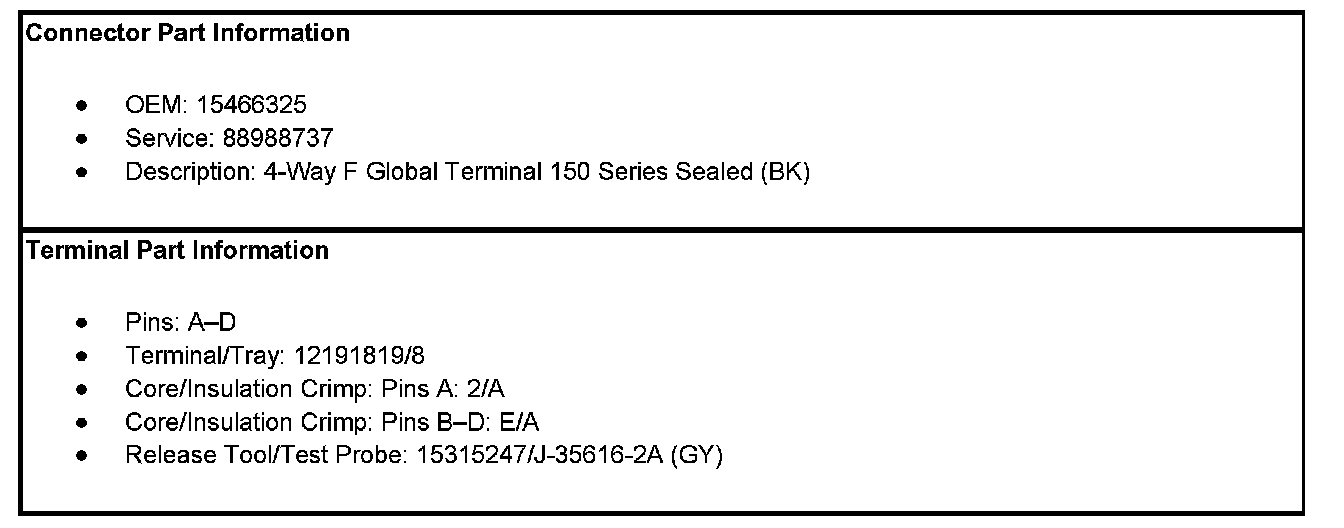

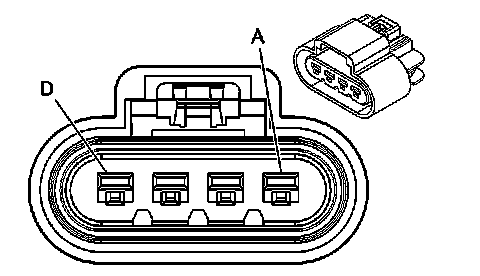

Engine Controls Connector End Views

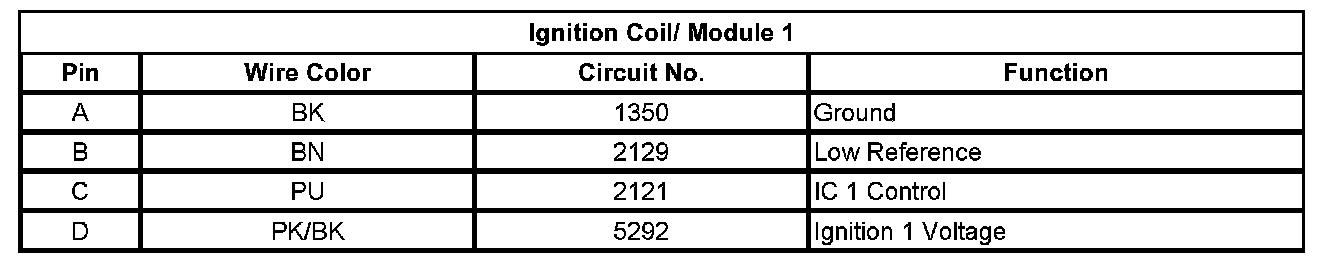

Ignition Coil/ Module 1

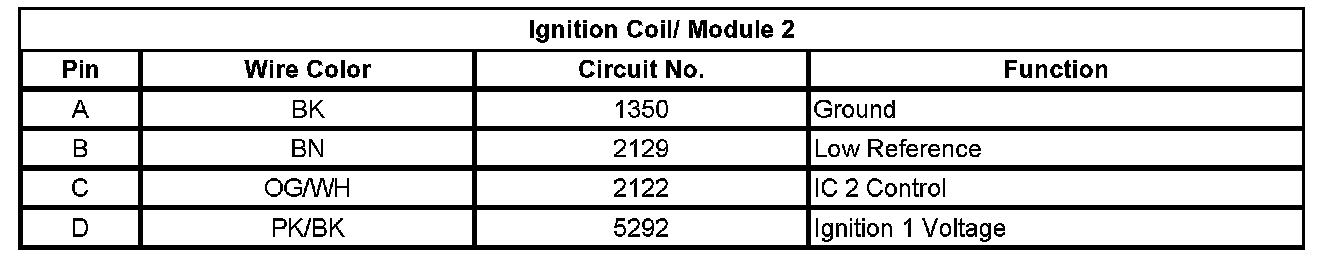

Ignition Coil/ Module 2

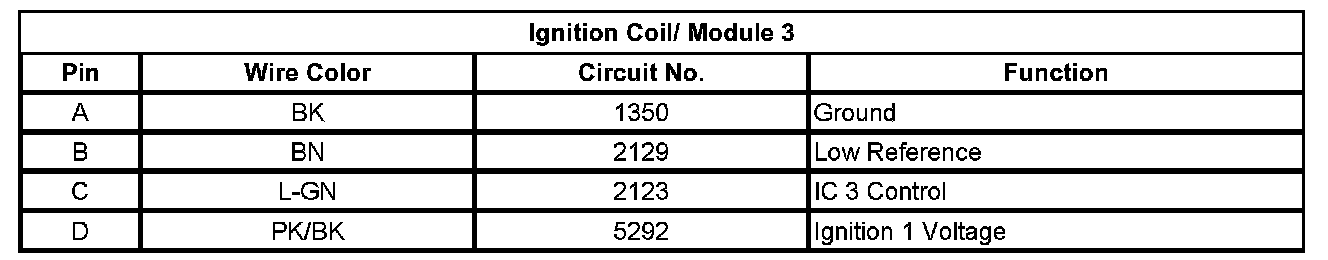

Ignition Coil/ Module 3

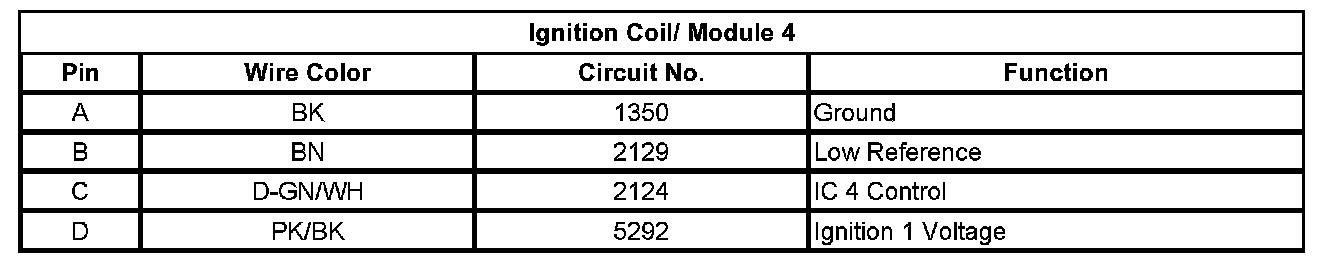

Ignition Coil/ Module 4
