Home >> Pontiac >> 2007 >> G5 L4-2.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams

Transmission Position Sensor/Switch: Diagrams

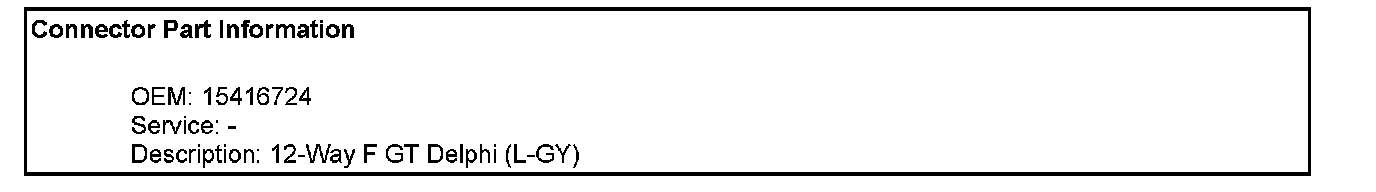

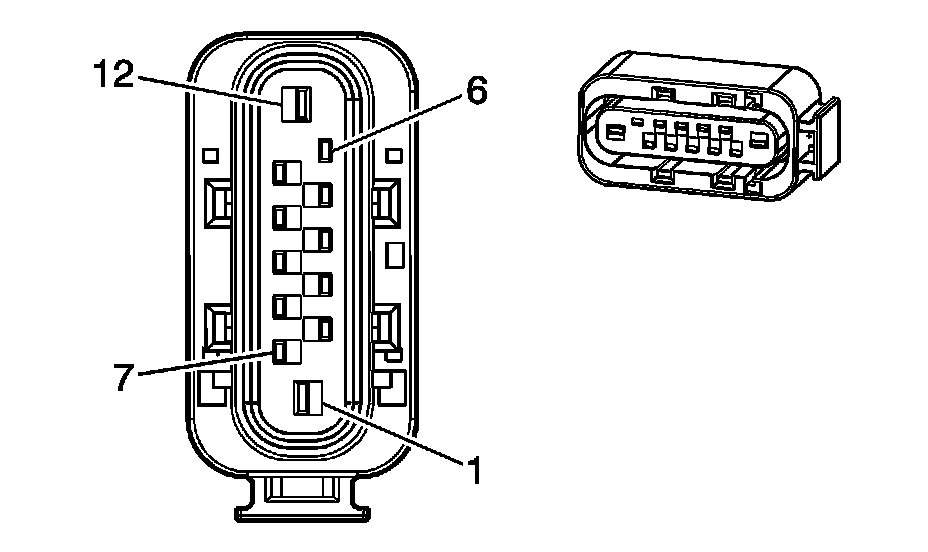

Automatic Transmission Related Connector End Views

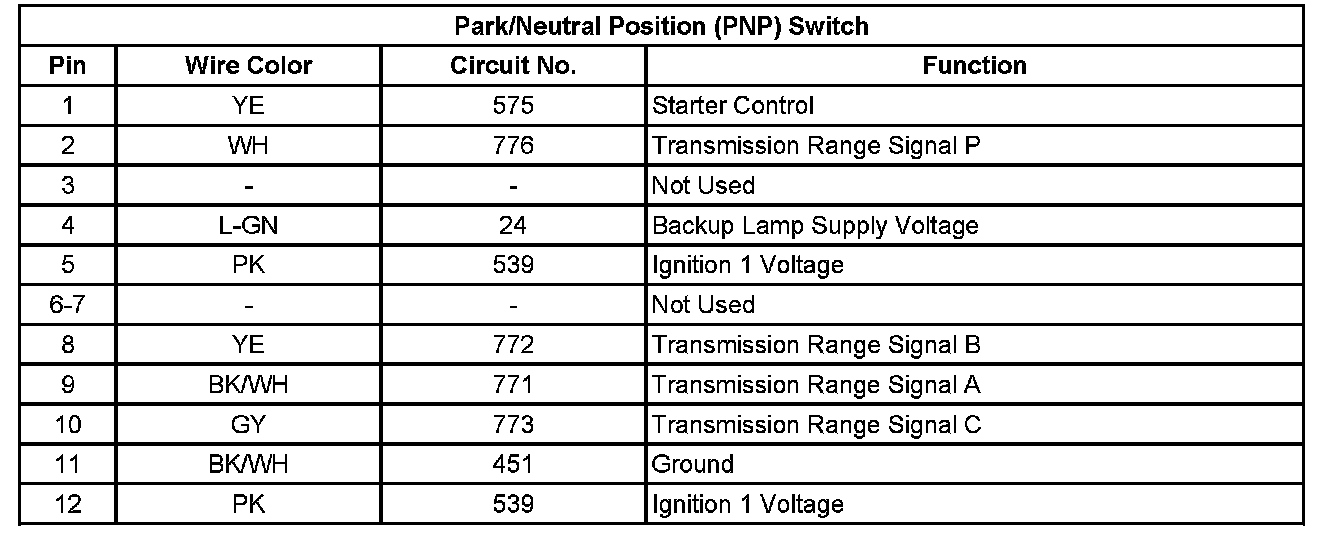

Park/Neutral Position (PNP) Switch

Park/Neutral Position (PNP) Switch:
