Home >> Pontiac >> 2007 >> G5 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module

Seat Temperature Control Module

Heated Seat Control Module - Driver:

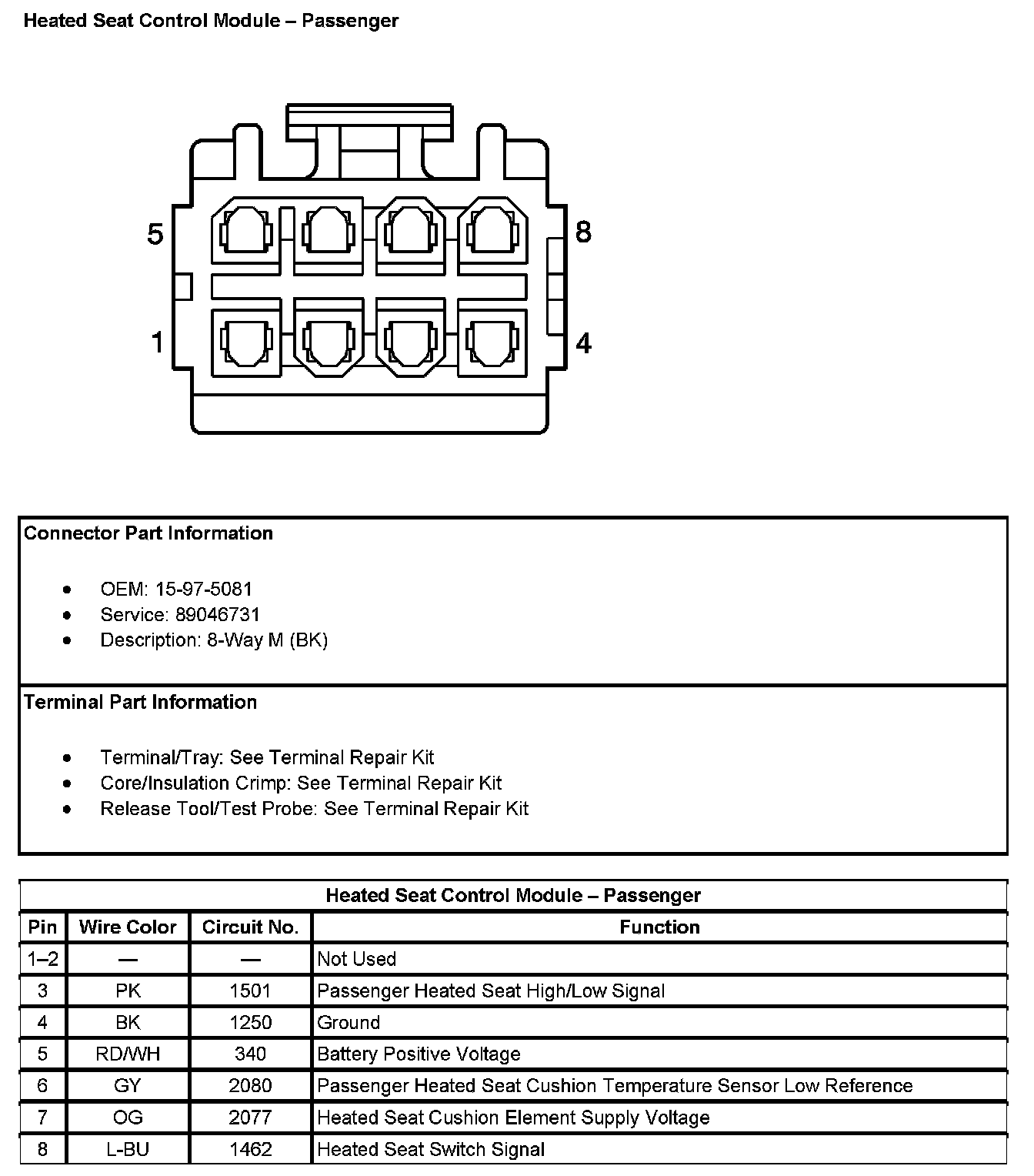

Heated Seat Control Module - Passenger:
