Home >> Pontiac >> 2006 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Shift Interlock, A/T >> Shift Interlock Control Module >> Ignition Lock Module

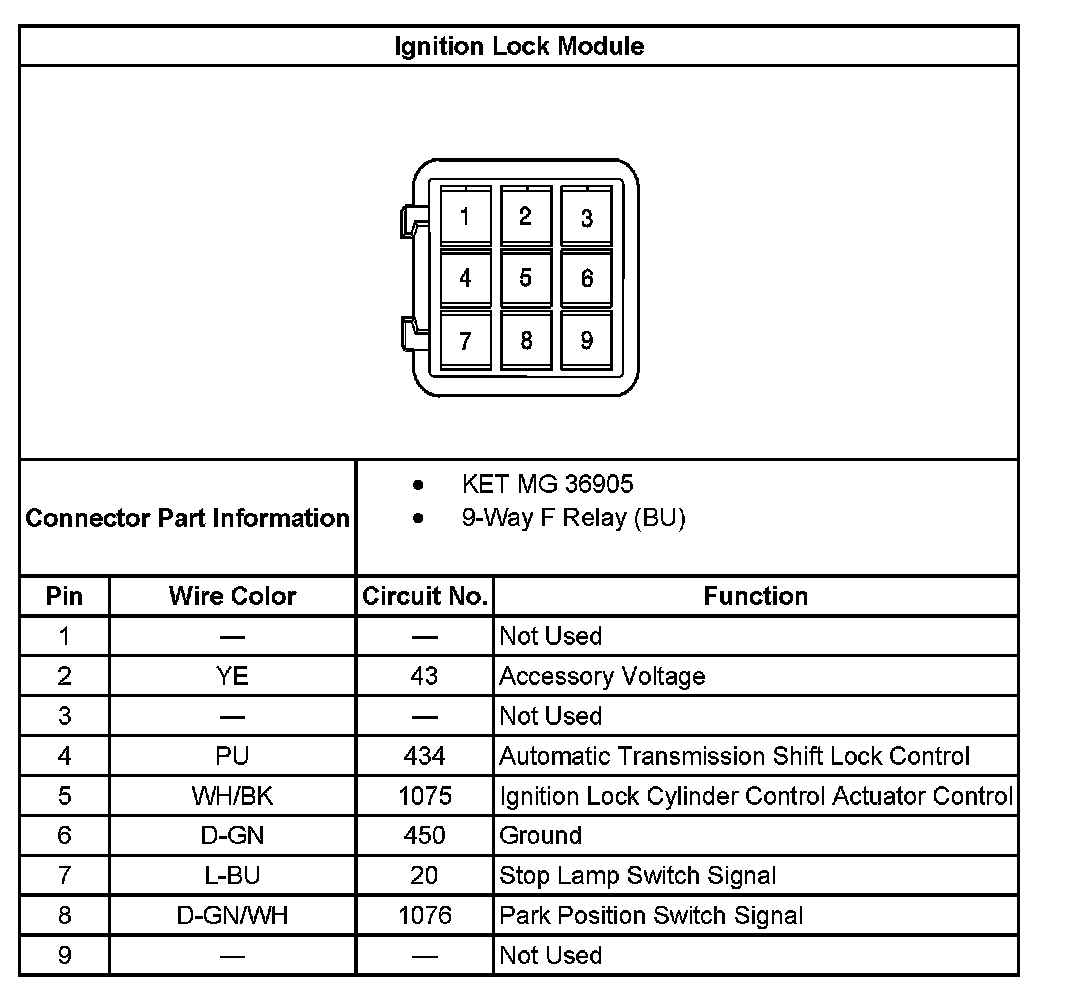

Ignition Lock Module

Ignition Lock Module:
