Home >> Pontiac >> 2006 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Components

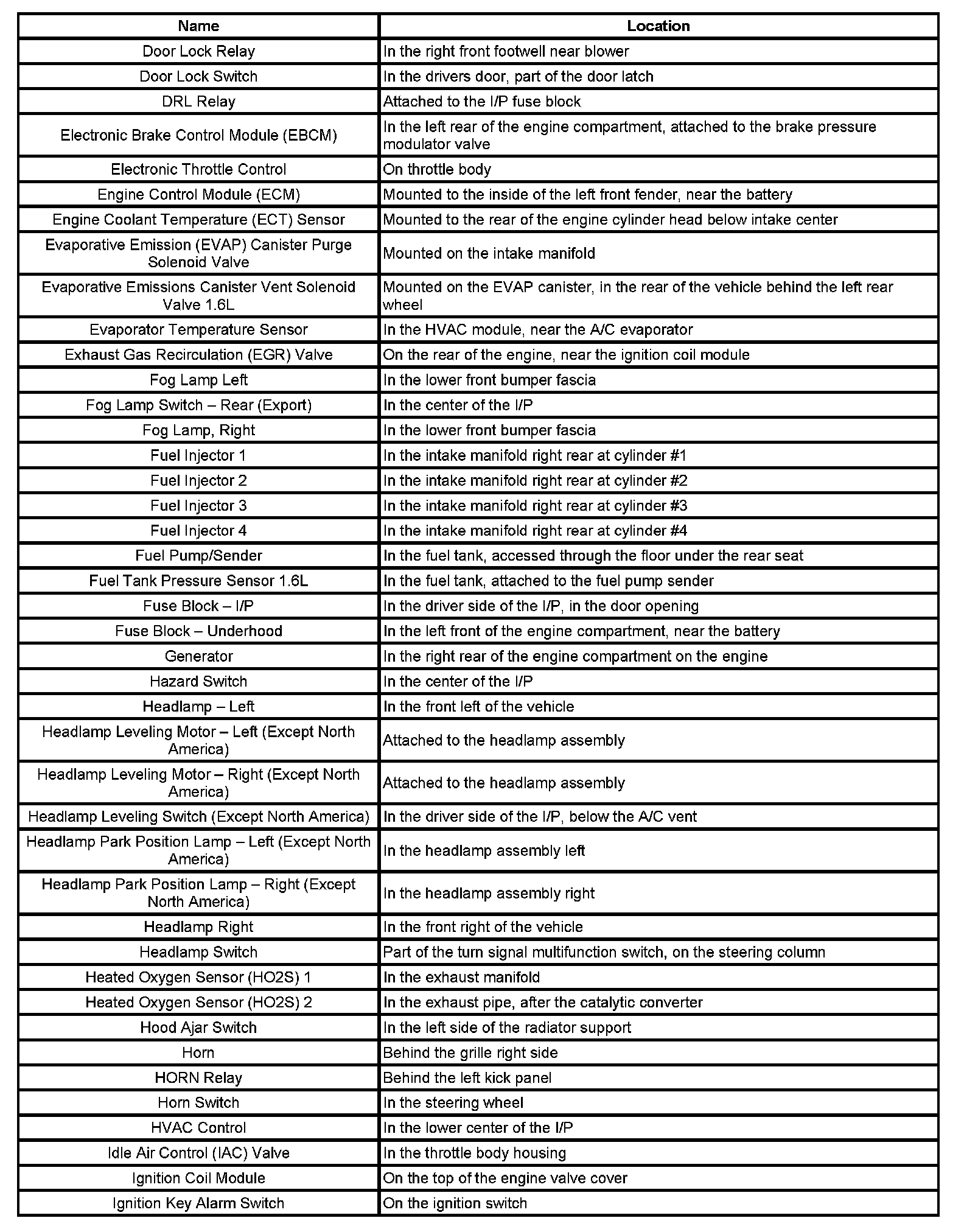

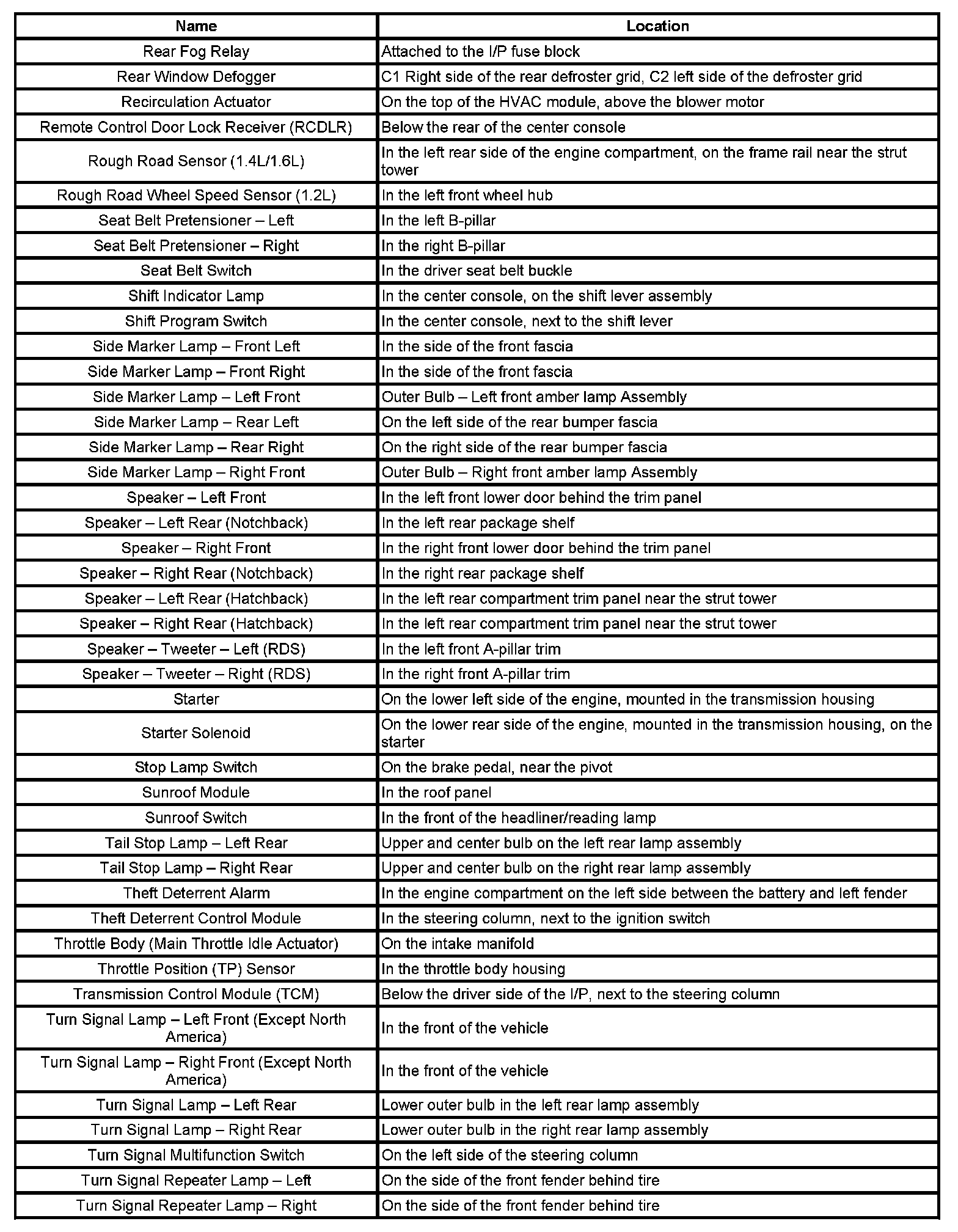

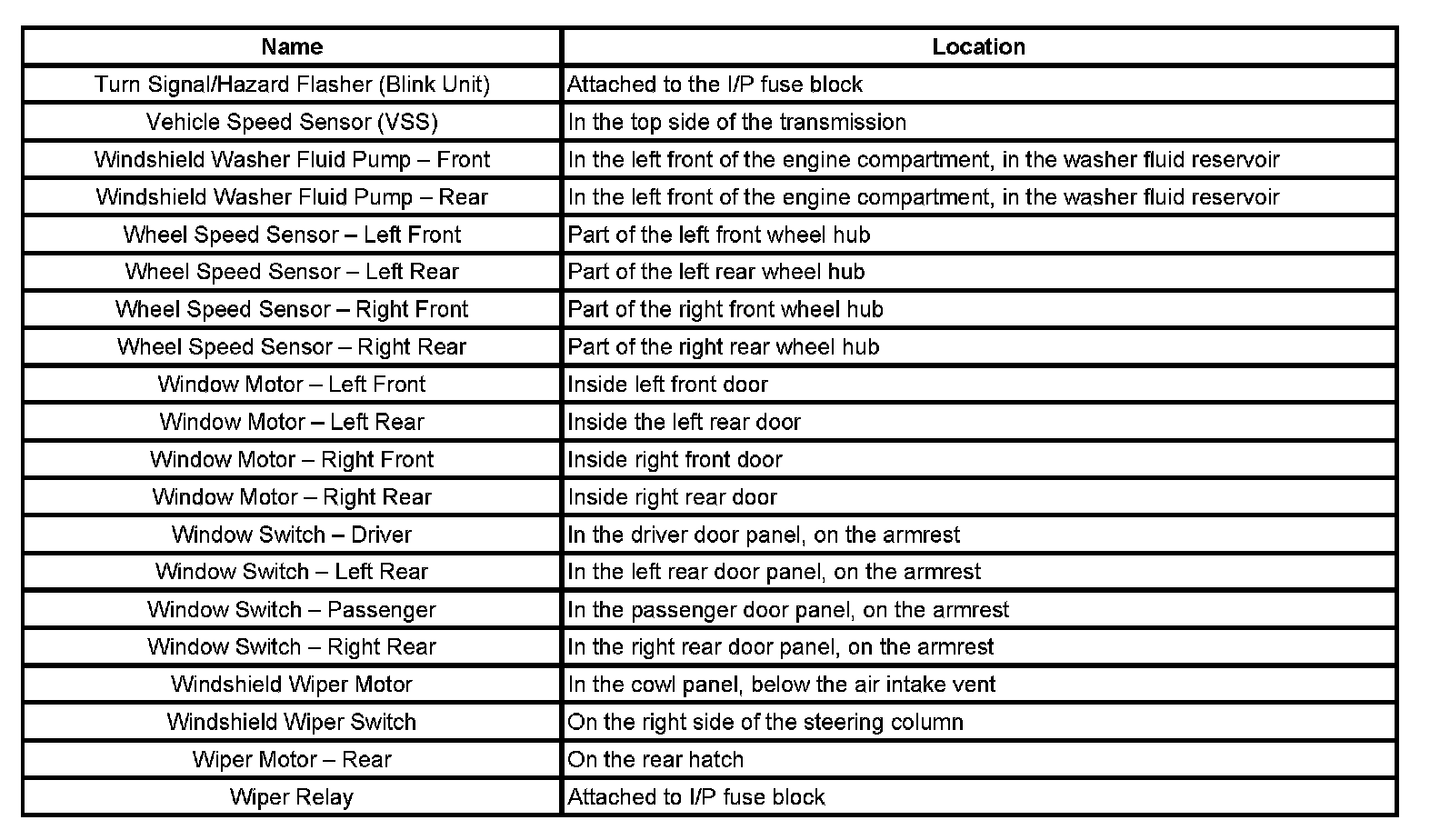

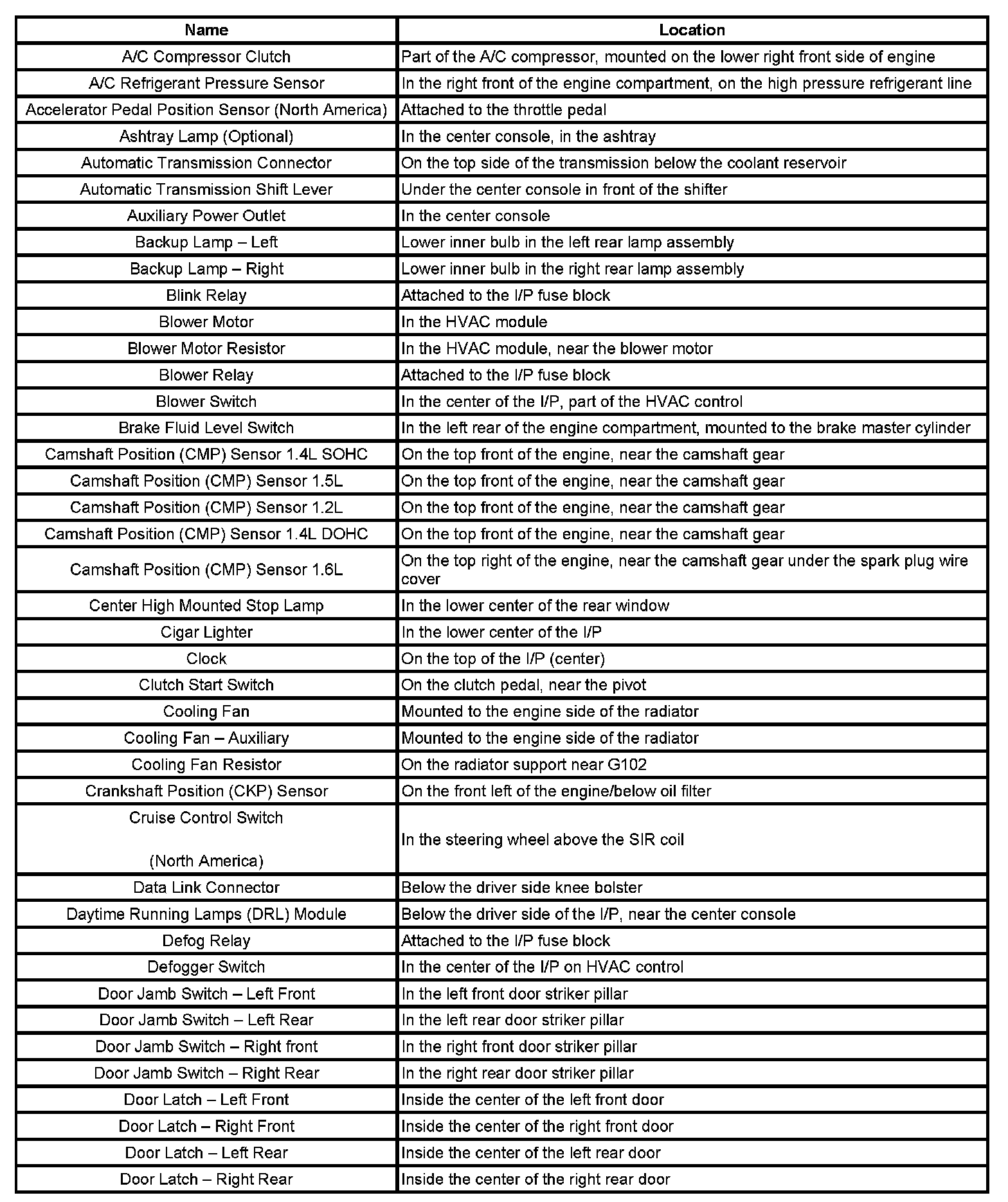

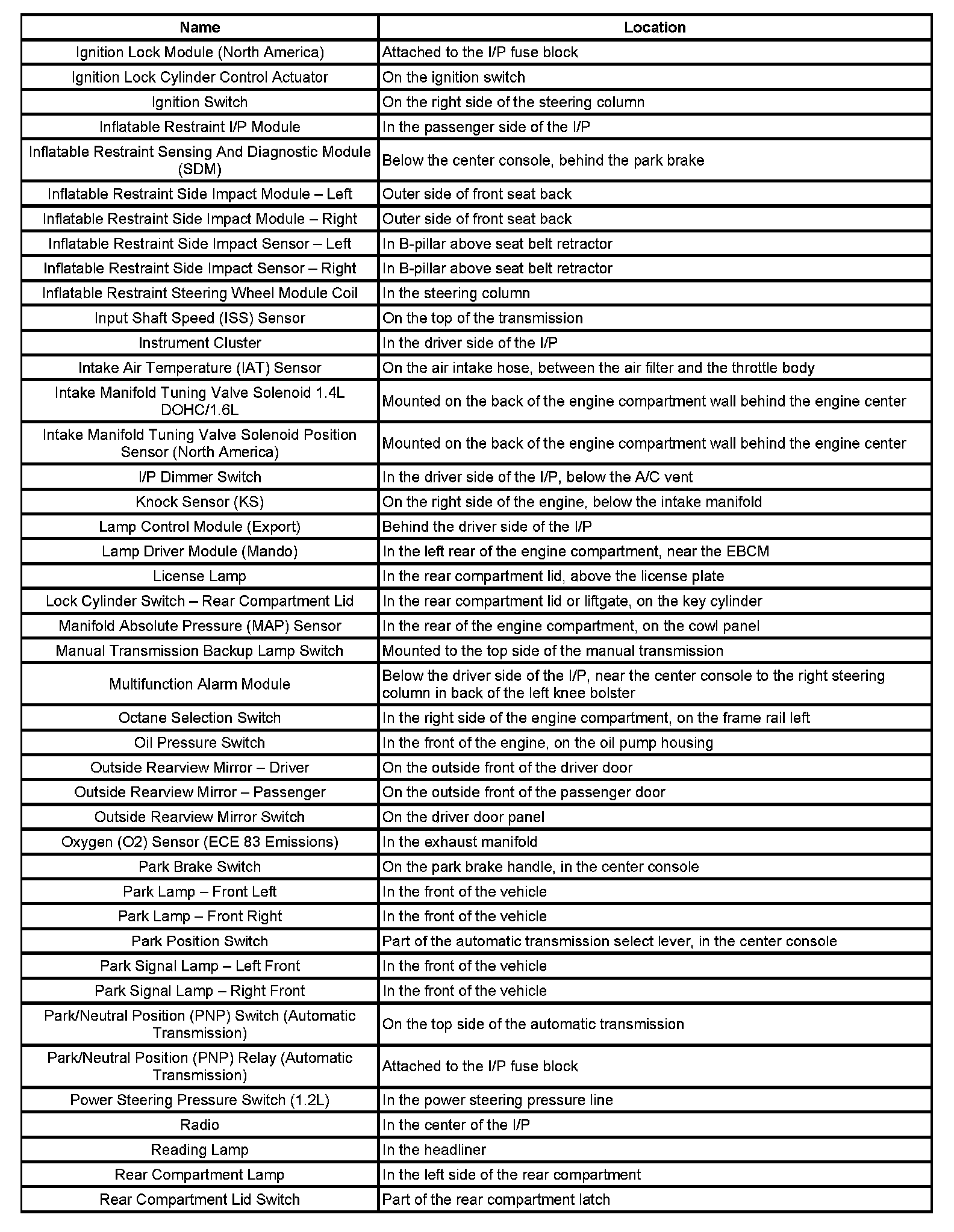

Components

A/C - Do:




Do - Ig:




Ig - Re:




Re - Tu:




Tu - Wi:
