Control Module: Locations

Cooling System Component Views

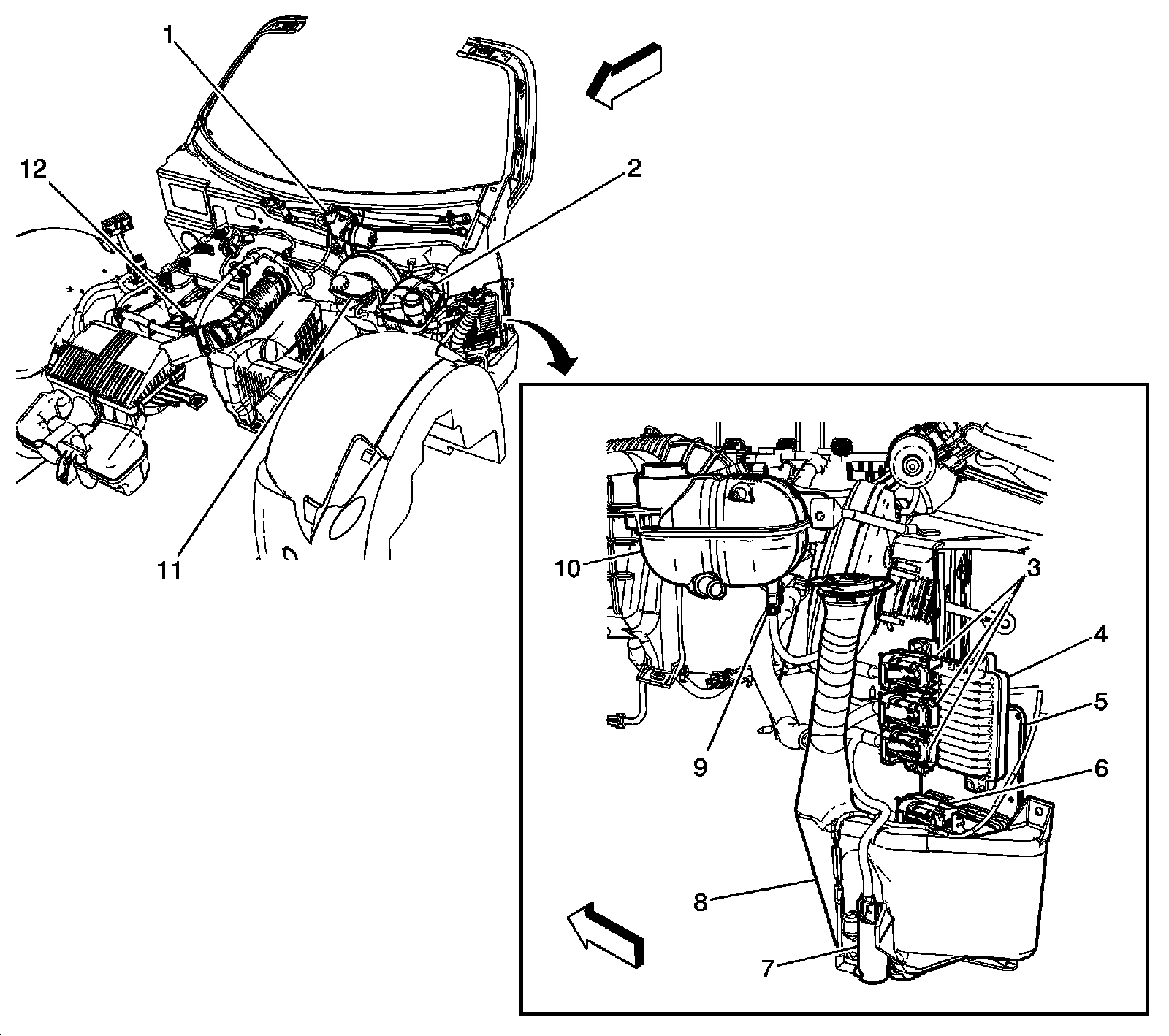

Front Engine Compartment:

1 - Windshield Wiper Motor and Module
2 - Coolant Surge Tank
3 - Engine Control Module (ECM) Connectors
4 - Engine Control Module (ECM)
5 - Transmission Control Module (TCM)
6 - Transmission Control Module (TCM) Connector
7 - Windshield Washer Fluid Pump
8 - Windshield Washer Fluid Container
9 - Engine Coolant Level Switch
10 - Coolant Surge Tank
