Air Flow Meter/Sensor: Service and Repair

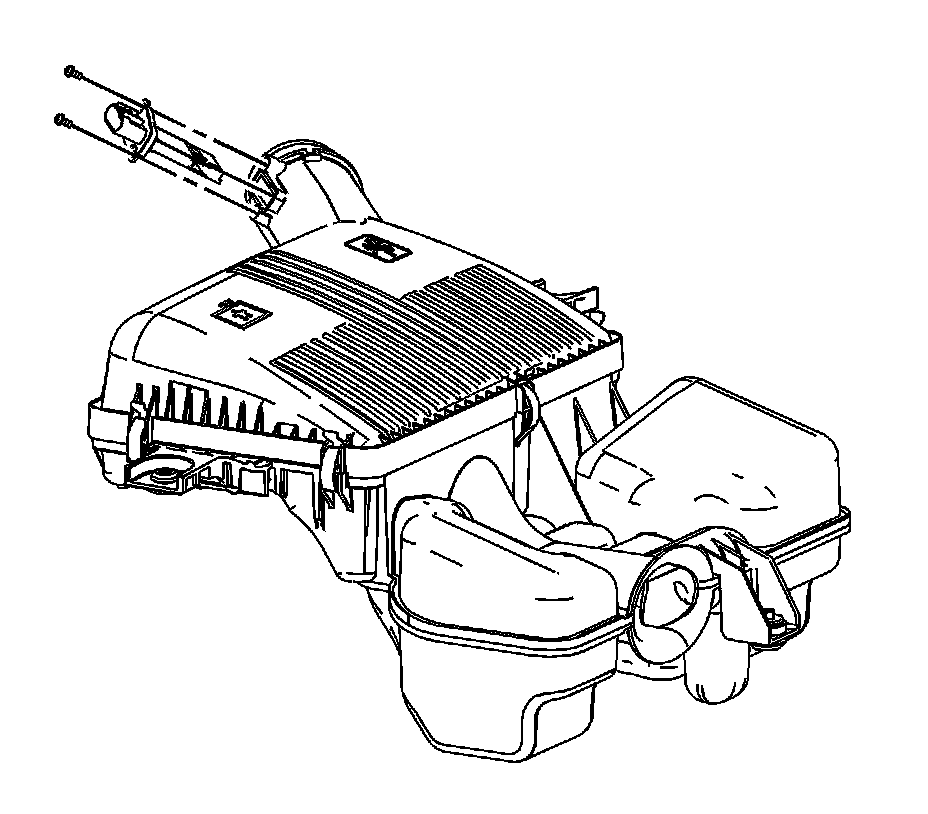

MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REPLACEMENT

REMOVAL PROCEDURE

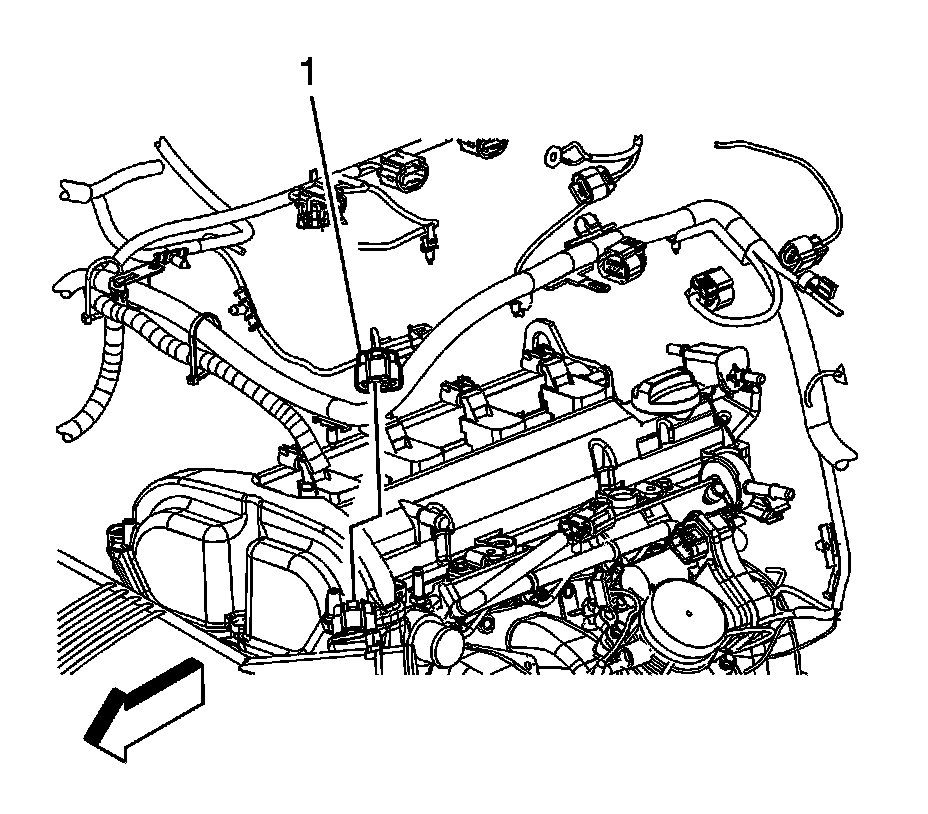

1. Disconnect the mass air flow (MAF)/intake air temperature (IAT) sensor electrical connector.




2. Remove the MAF/IAT sensor screws.
3. Remove the MAF/IAT sensor.

INSTALLATION PROCEDURE




1. Install the MAF/IAT sensor.

NOTE: Refer to Fastener Notice.

2. Install the MAF/IAT sensor screws.

Tighten the screws to 0.6 N.m (5 lb in).




3. Connect the MAF/IAT sensor electrical connector.
