lemon-mirror
:
Home
>>
Pontiac
>>
2006
>>
Solstice L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Global Positioning System Module
Global Positioning System Module

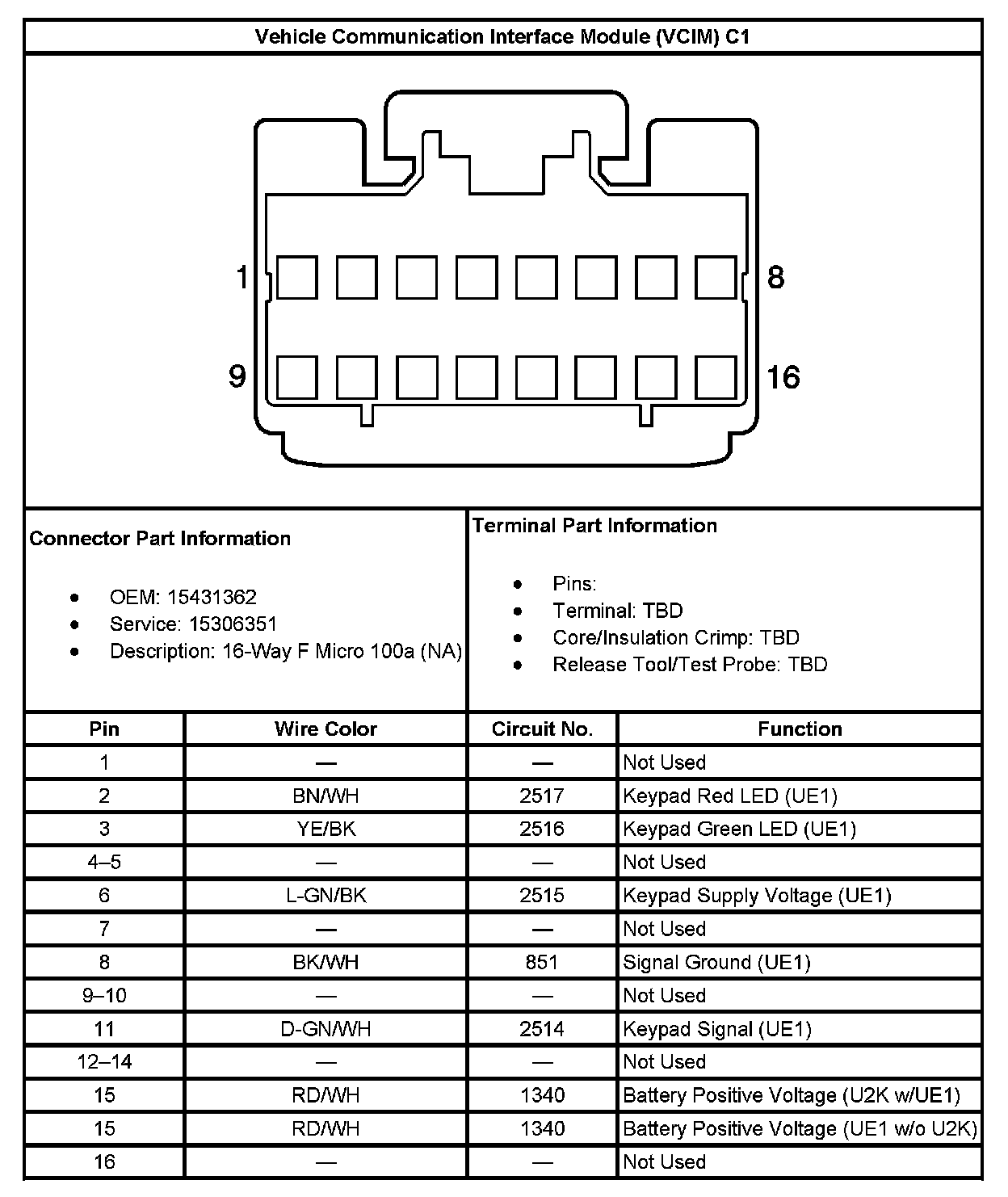

Vehicle Communication Interface Module (VCIM) C1:

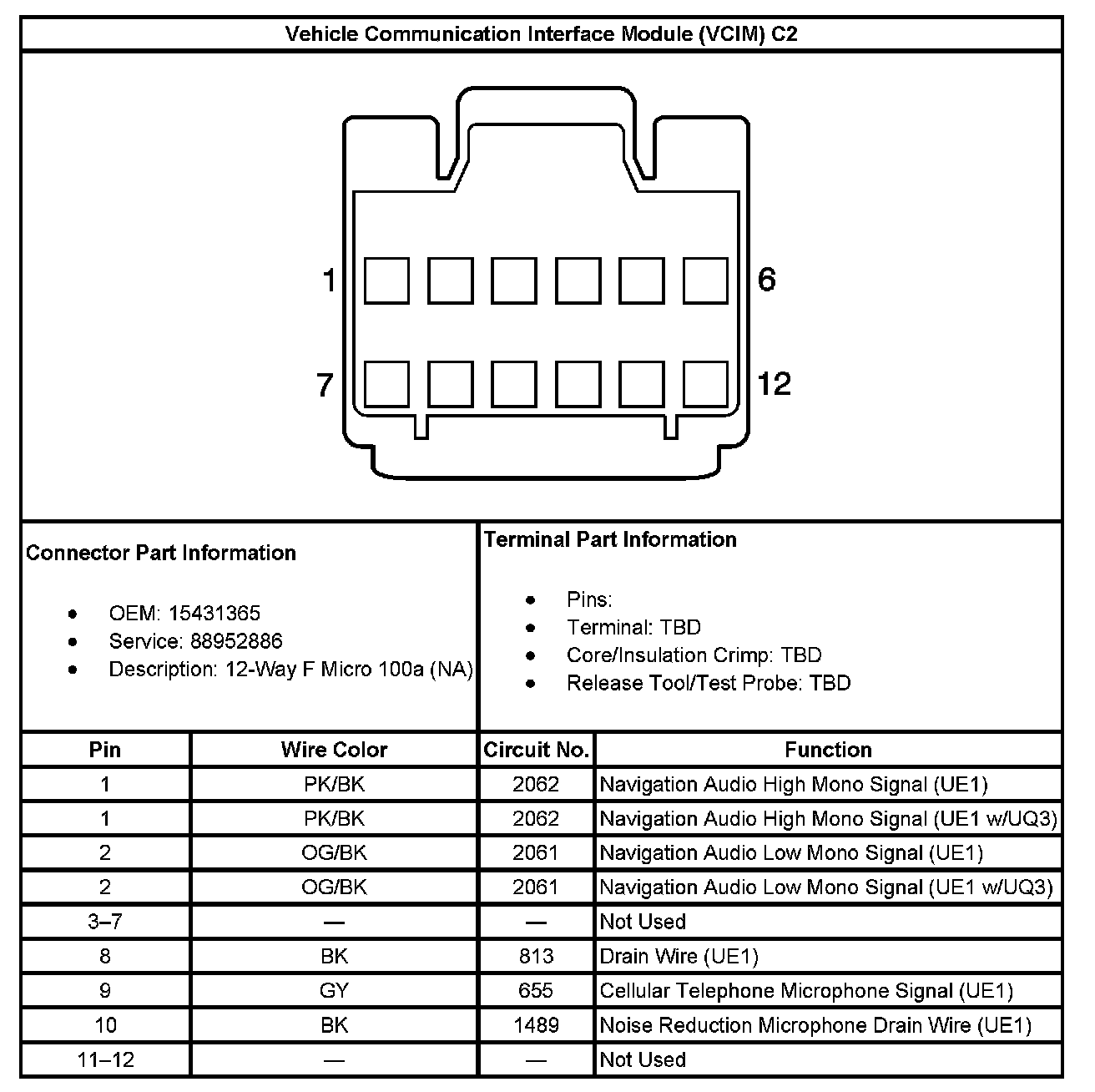

Vehicle Communication Interface Module (VCIM) C2:

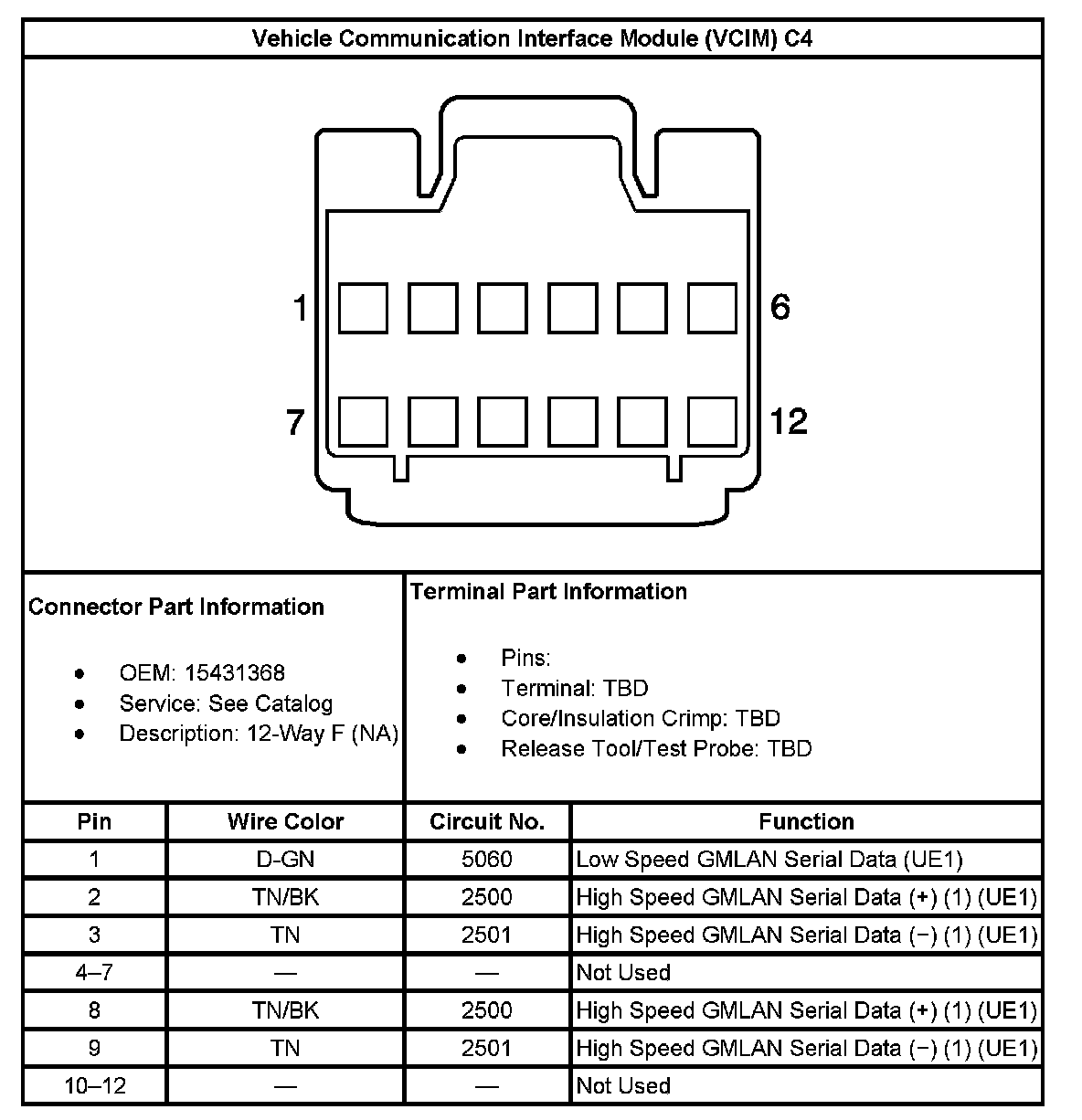

Vehicle Communication Interface Module (VCIM) C4:
