Home >> Pontiac >> 2006 >> Solstice L4-2.4L VIN B >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Engine Control Module (ECM) C3

Engine Control Module (ECM) C3

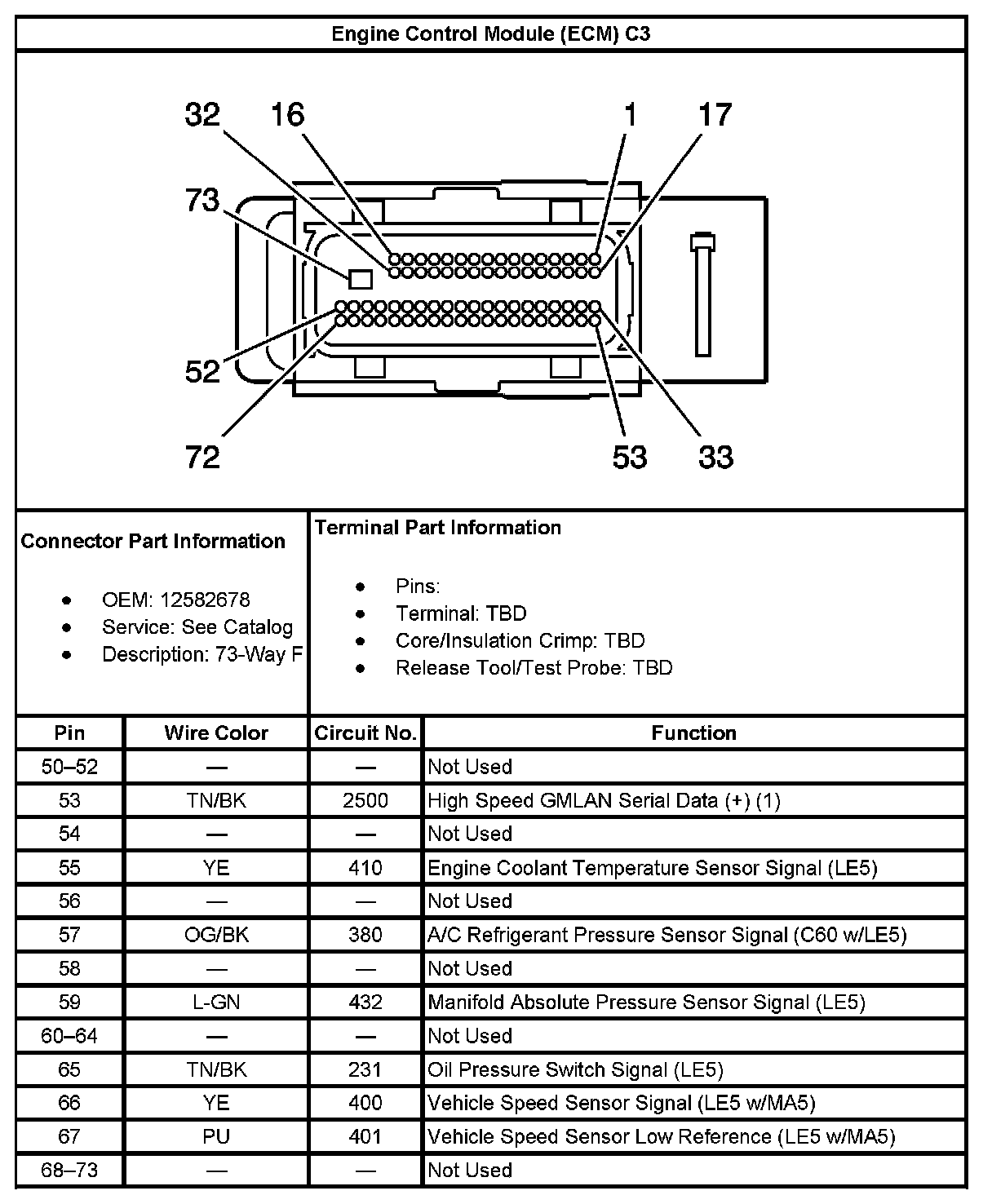

Engine Control Module (ECM) C3 (Part 1):

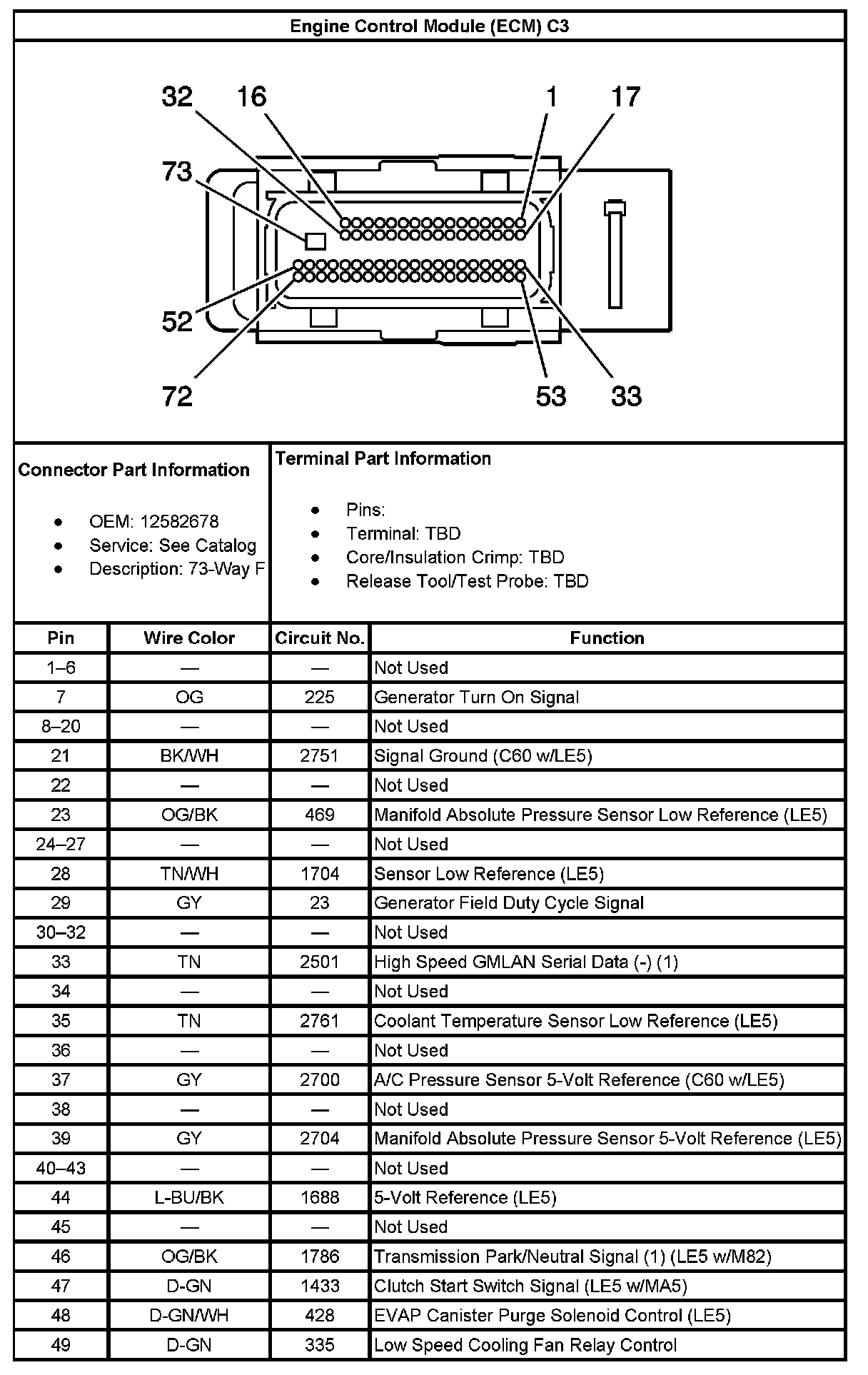

Engine Control Module (ECM) C3 (Part 2):
