Home >> Pontiac >> 2006 >> Solstice L4-2.4L VIN B >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

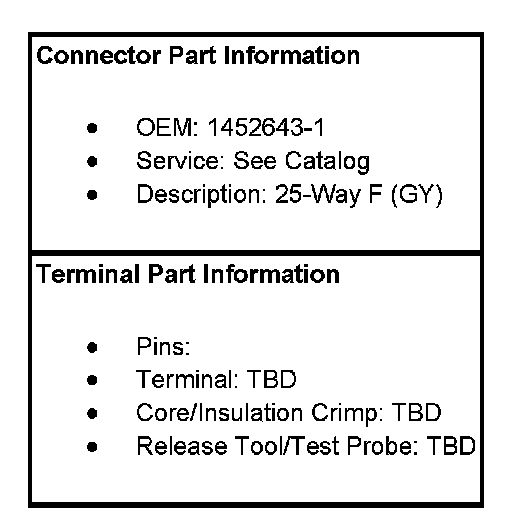

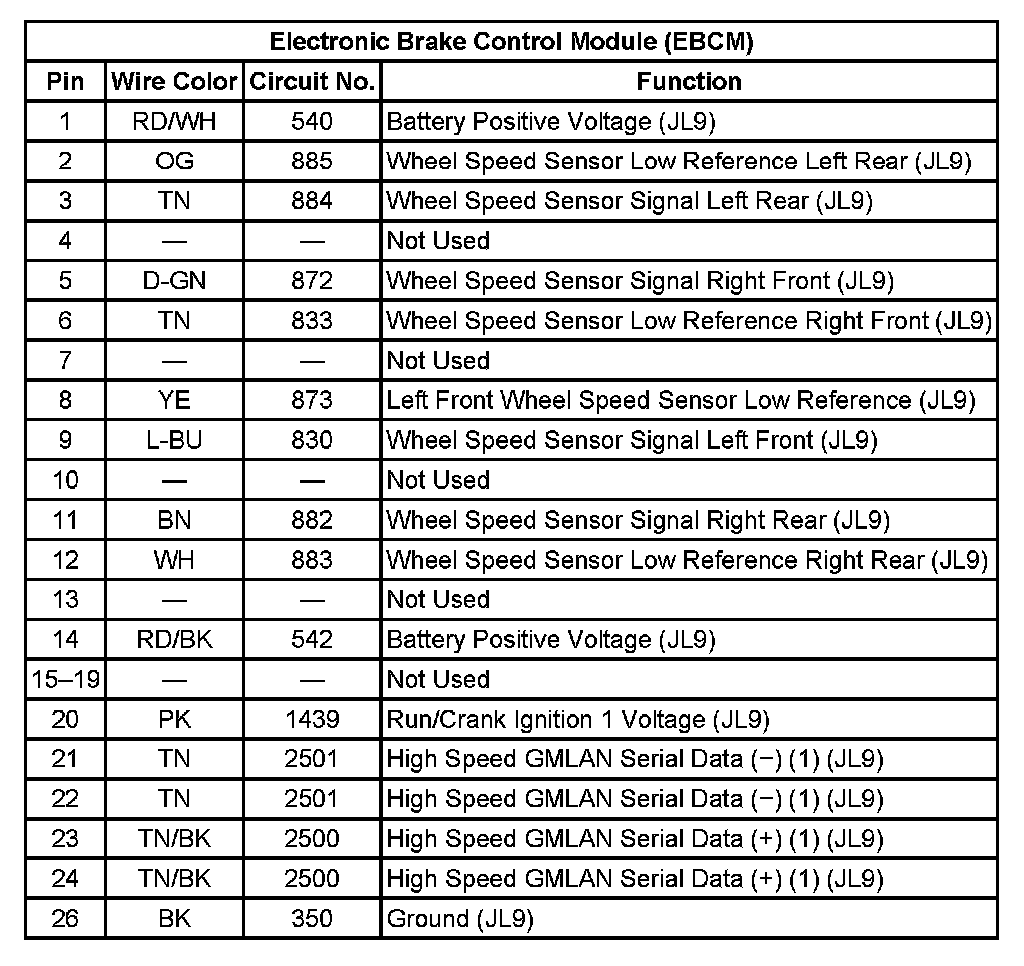

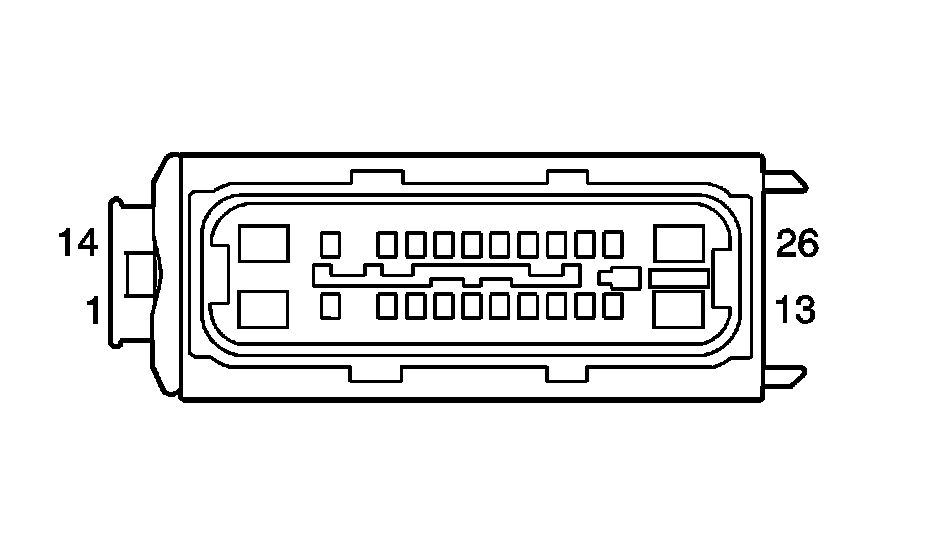

Electronic Brake Control Module (EBCM)




Electronic Brake Control Module (EBCM):




Electronic Brake Control Module (EBCM):
