Home >> Pontiac >> 2006 >> Solstice L4-2.4L VIN B >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) - C1

Body Control Module (BCM) - C1

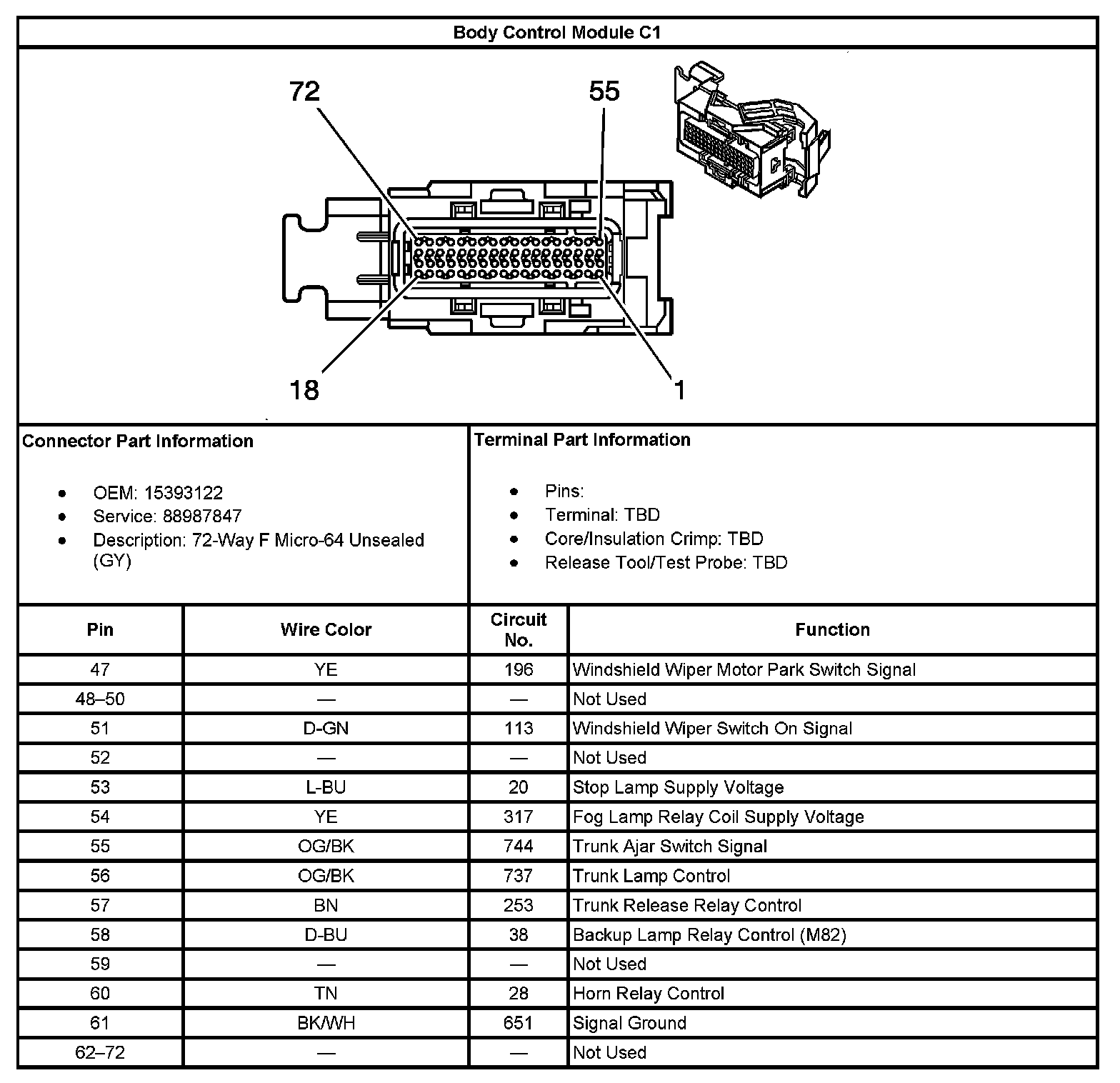

Body Control Module C1 (Part 1):

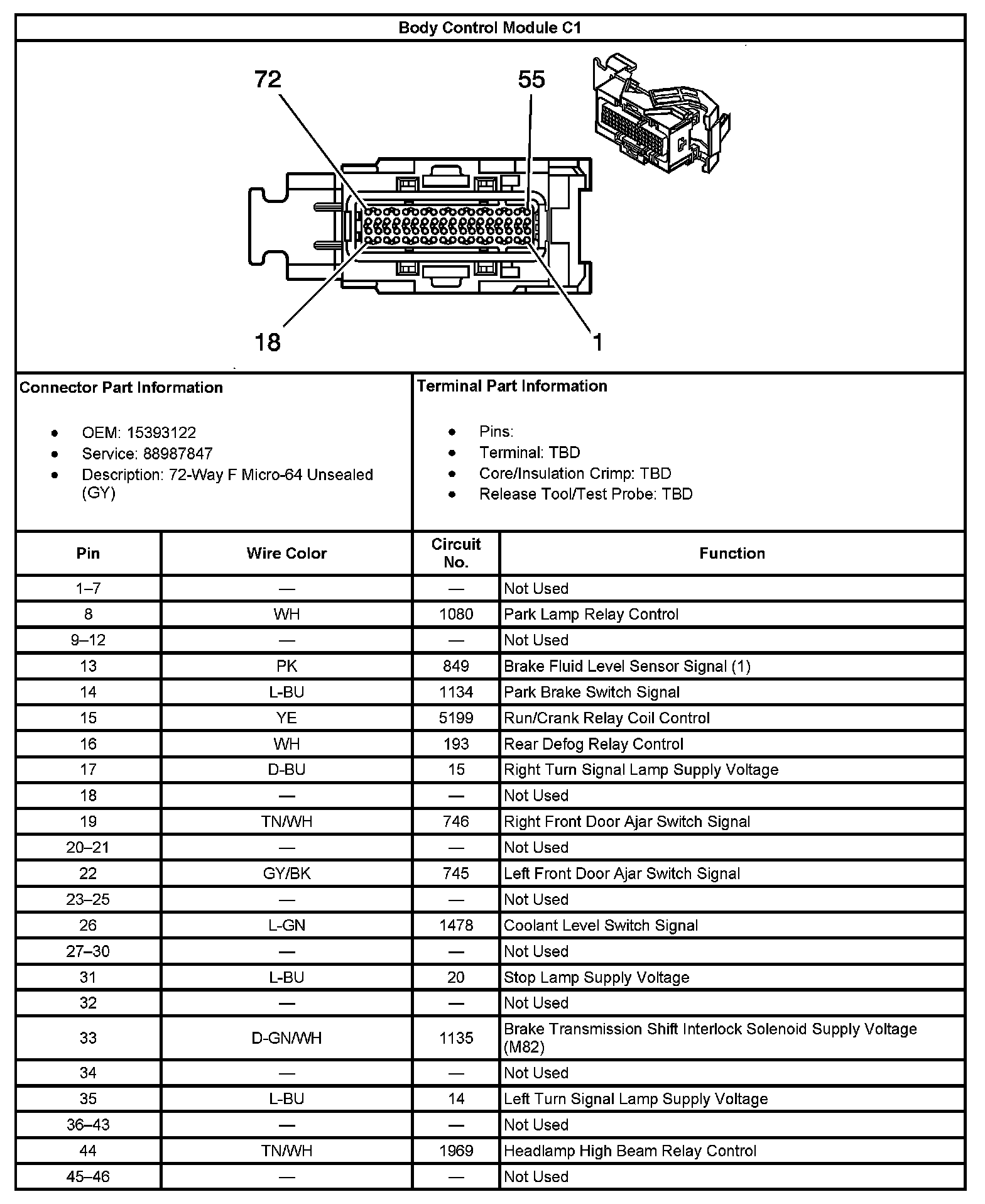

Body Control Module C1 (Part 2):
