Home >> Pontiac >> 2006 >> G6 L4-2.4L VIN B >> Repair and Diagnosis >> Diagrams >> Components

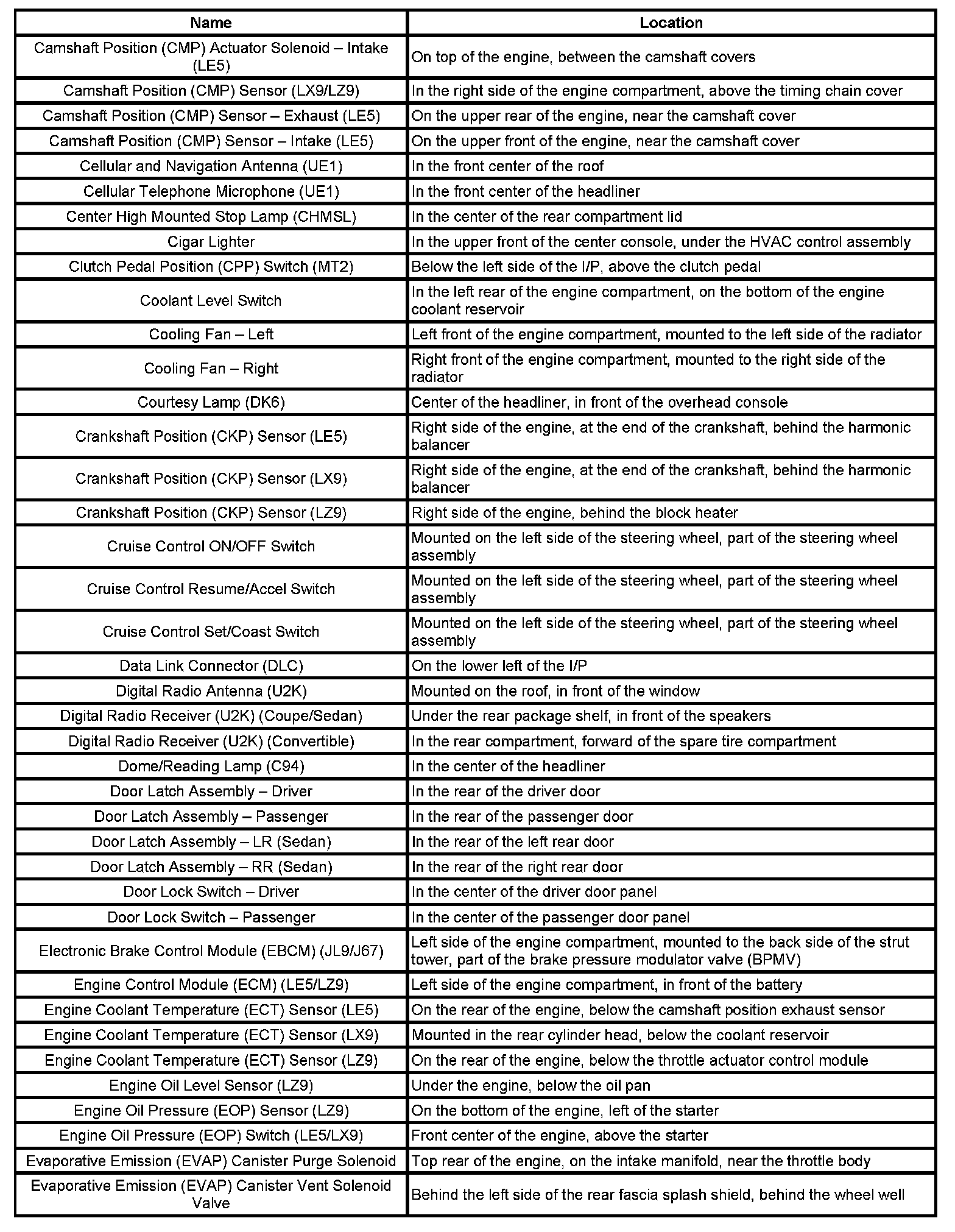

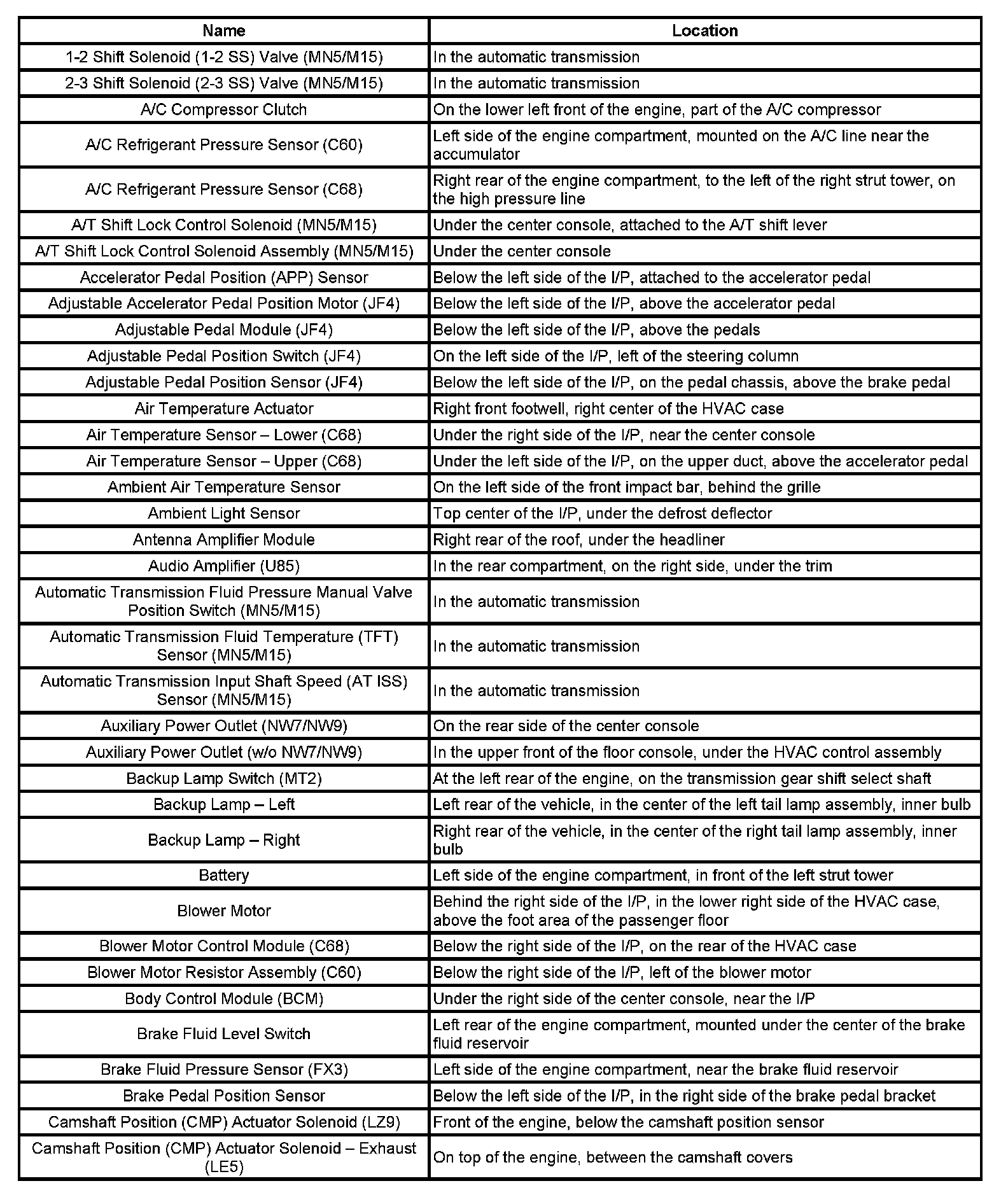

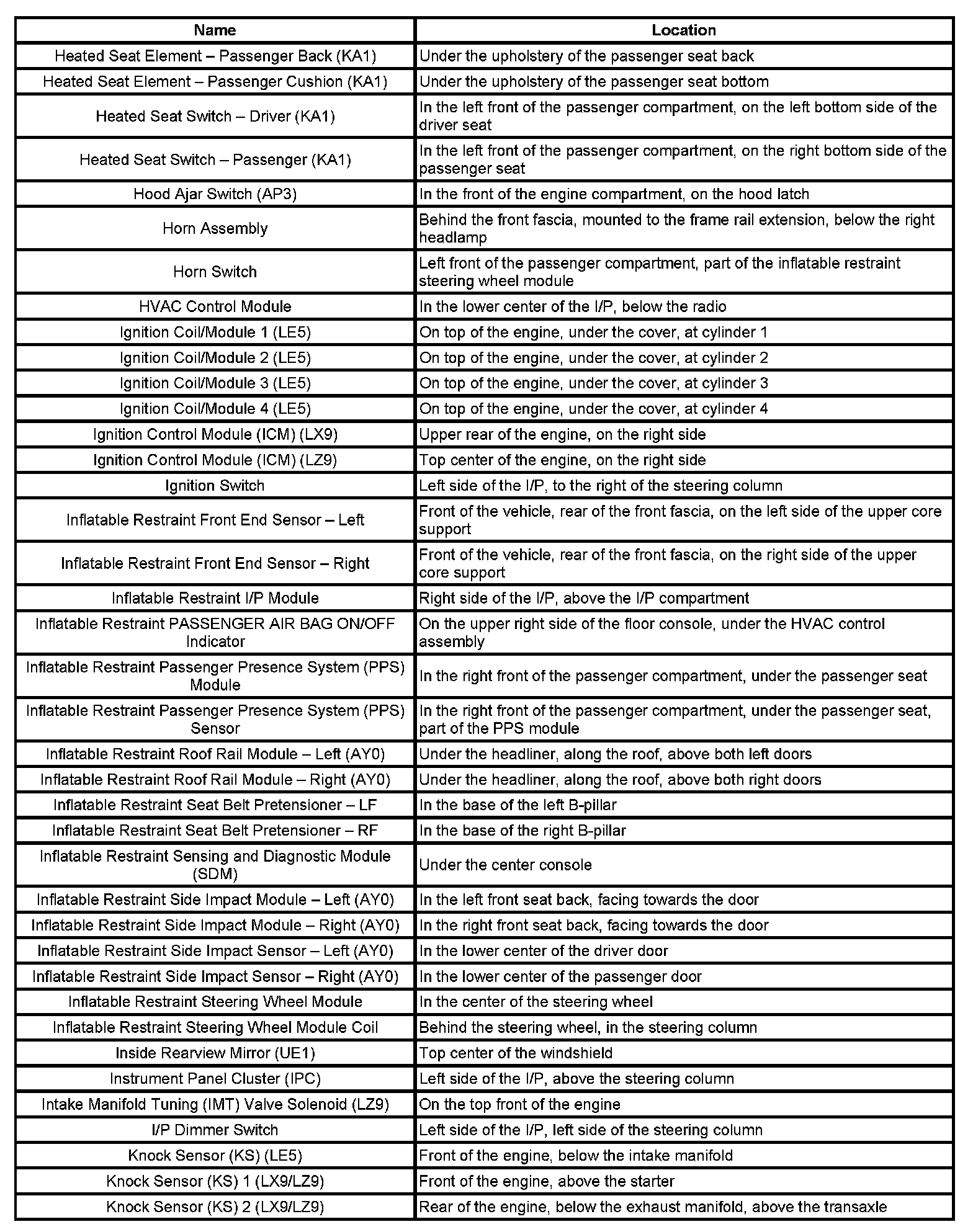

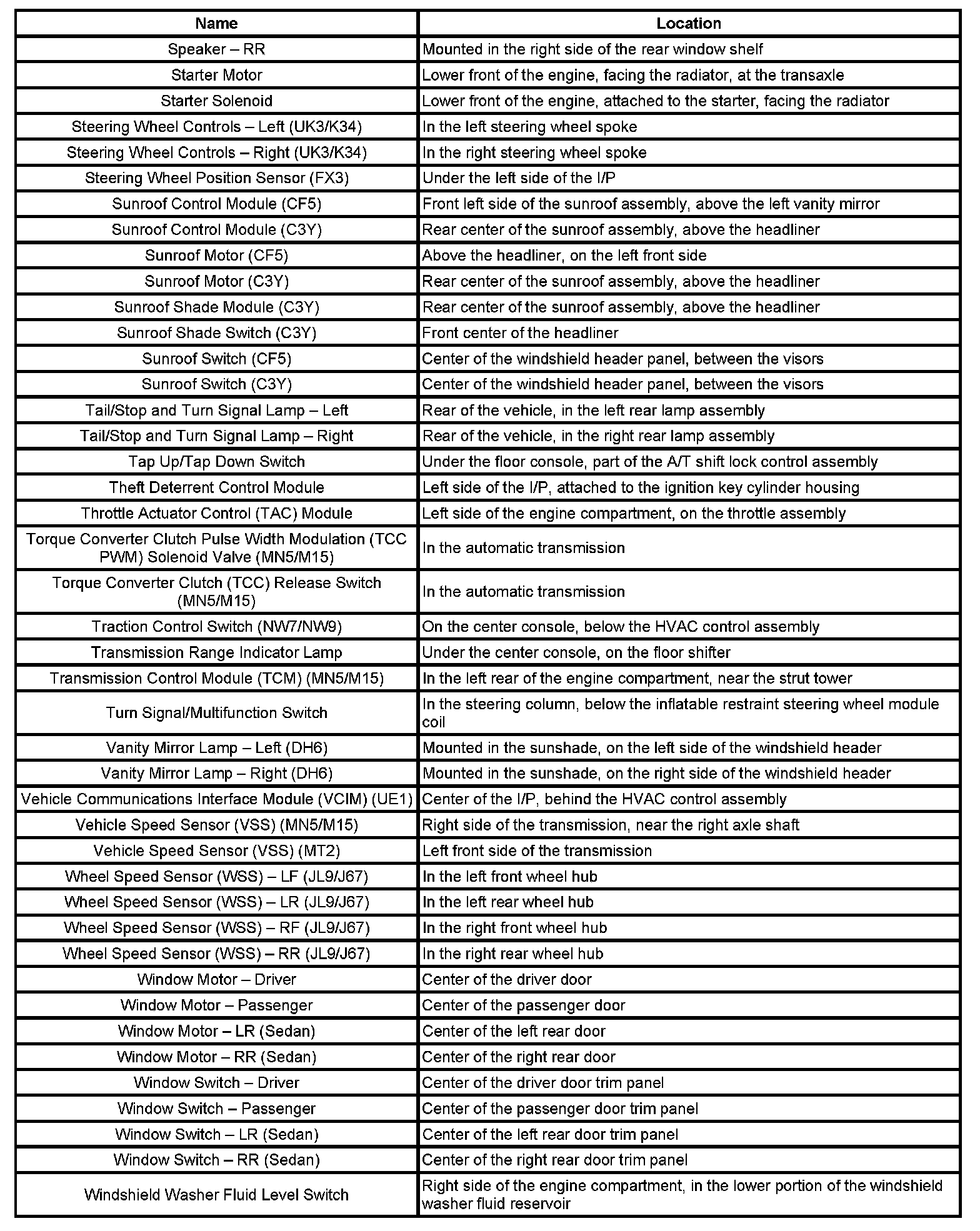

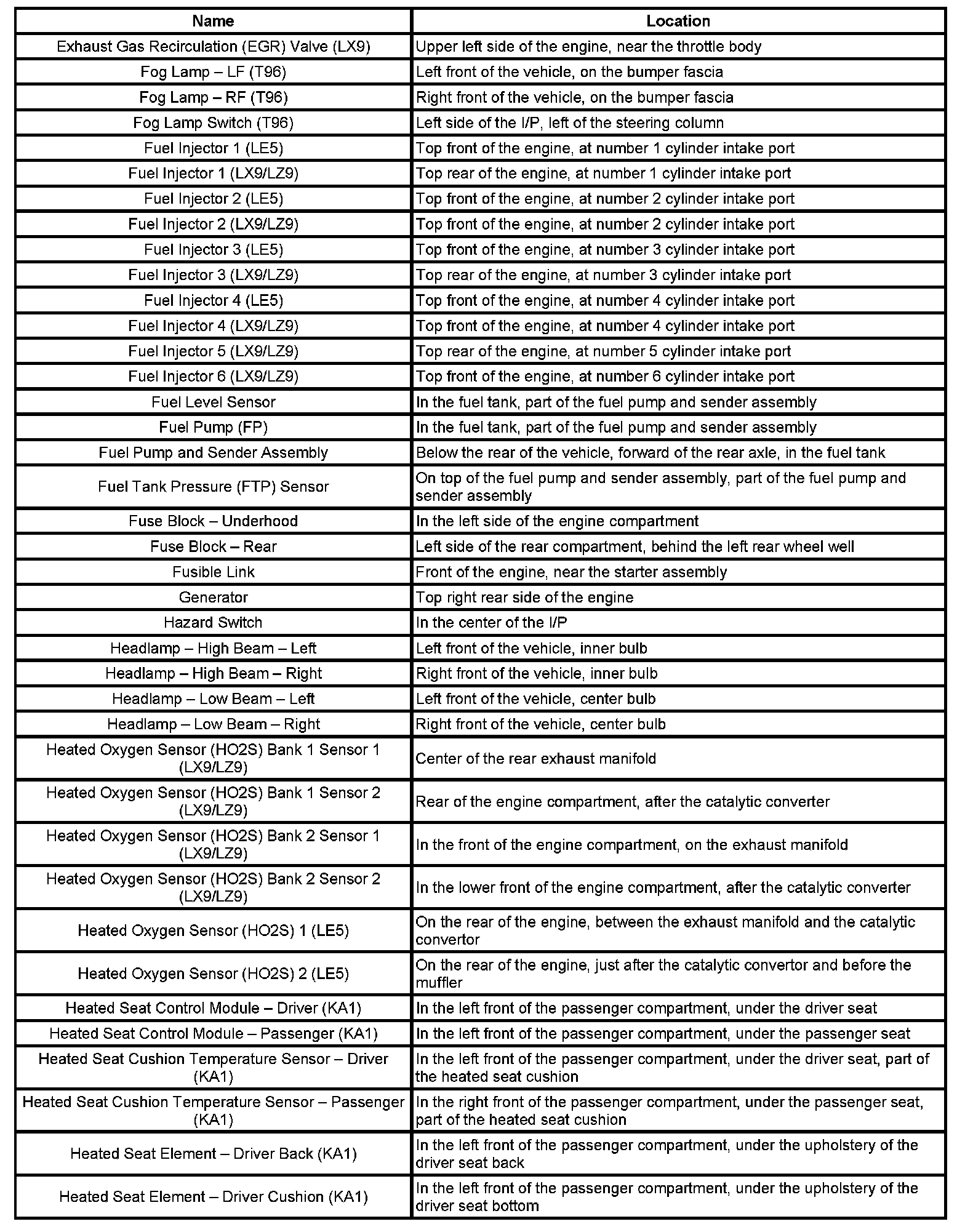

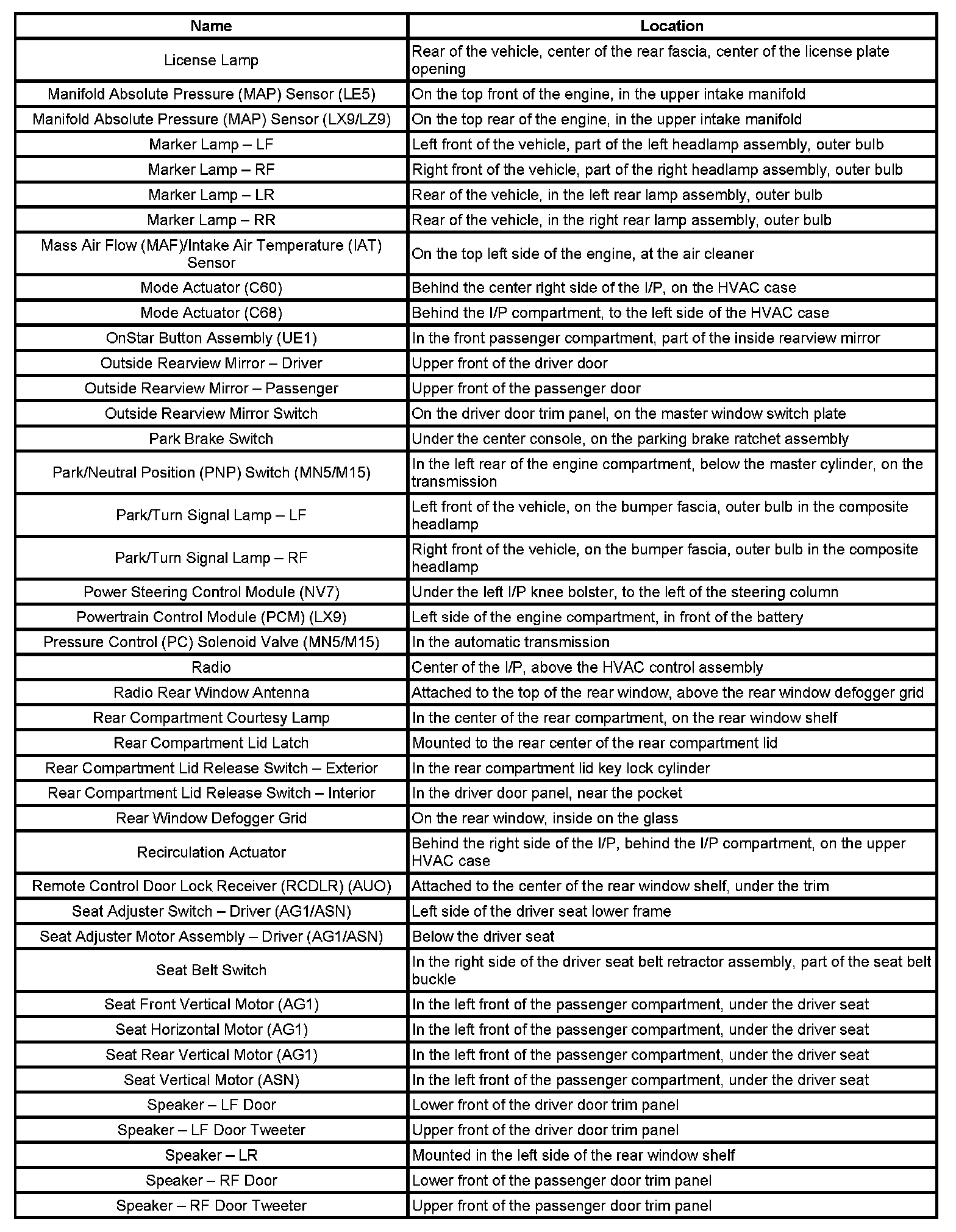

Components



1-2 Sh - Ca:




Ca - Ev:




Ex - He:




He - Kn:




Li - Sp:




Sp - Wi:




Wi - Ya:
