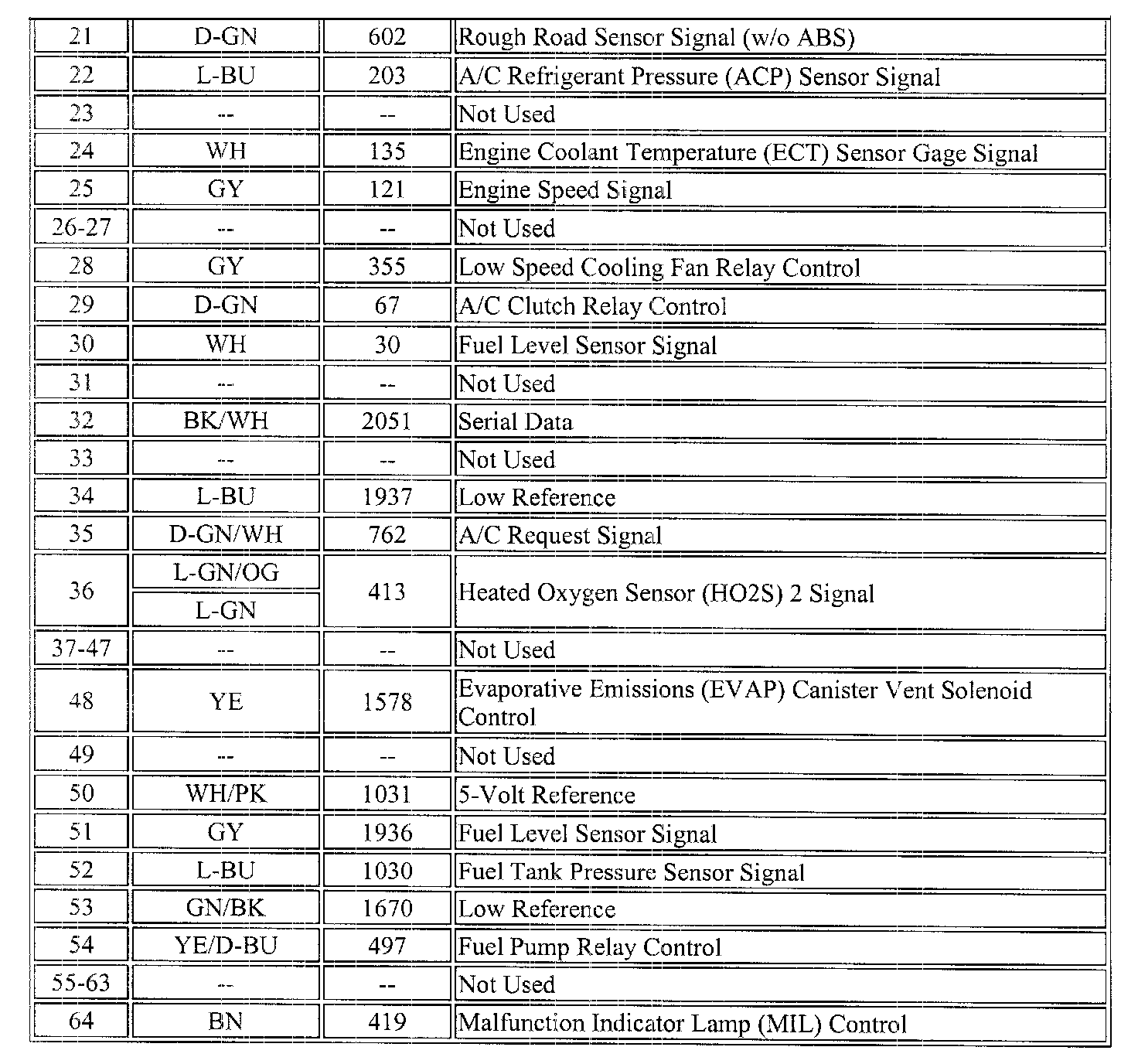

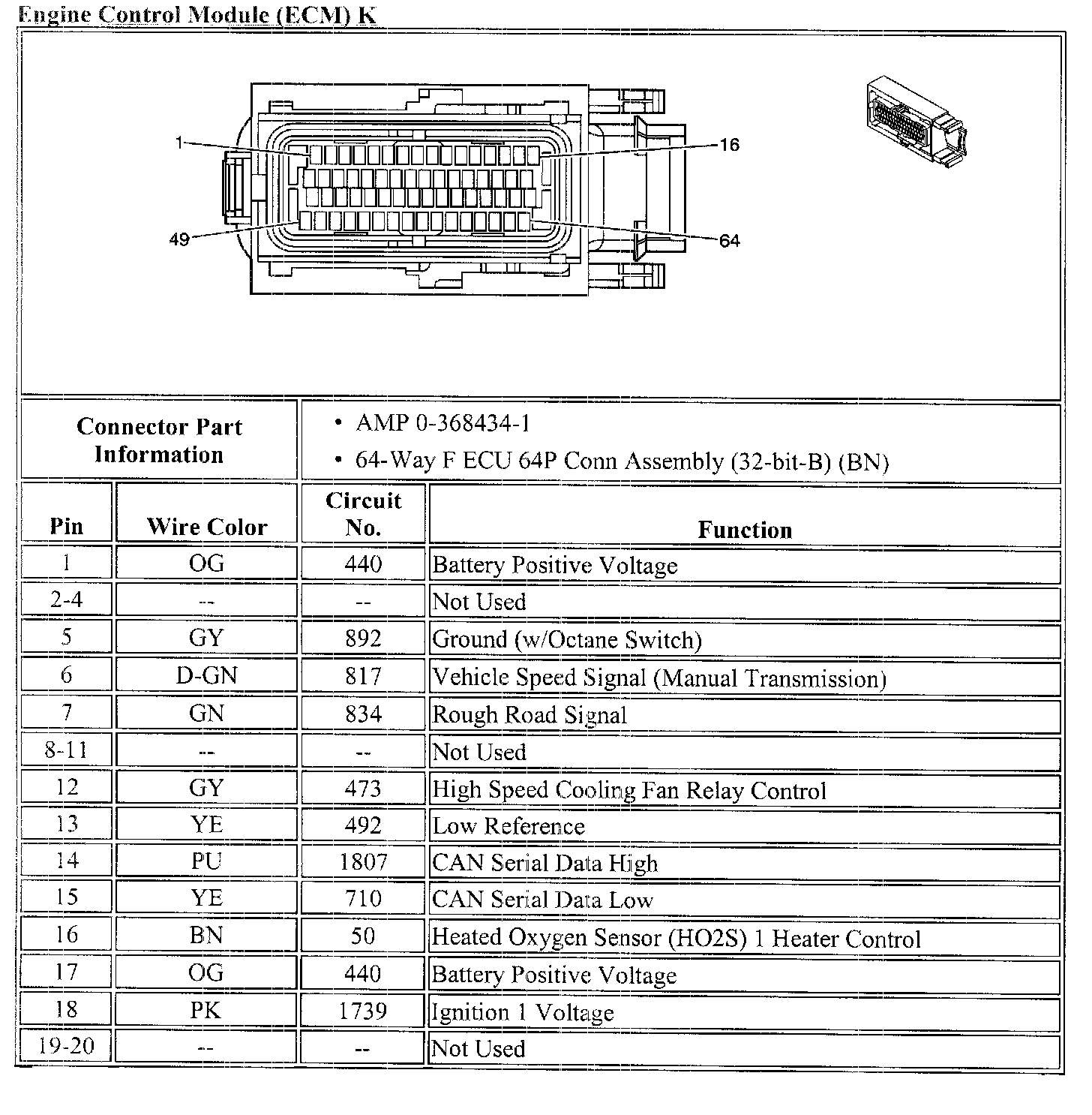

Home >> Pontiac >> 2005 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> Engine Control Module (ECM) - K
