Removal

COMPRESSOR CONTROL VALVE ASSEMBLY REMOVAL

TOOLS REQUIRED
J 5403 Snap Ring Pliers




1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging.

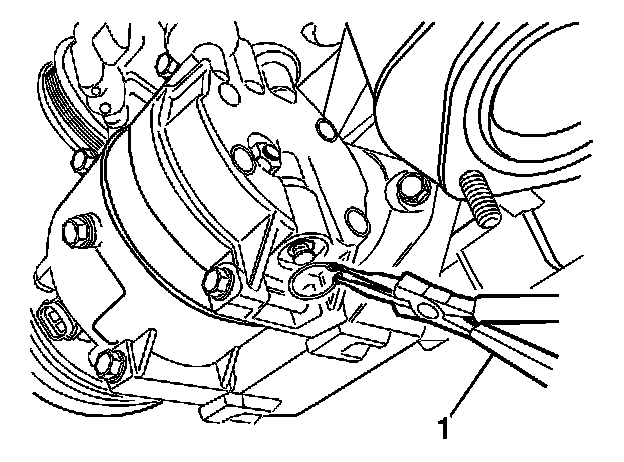

2. Remove the control valve retaining ring using the J 5403 (1).
3. Remove the control valve assembly.
