Home >> Pontiac >> 2005 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC

Control Module HVAC

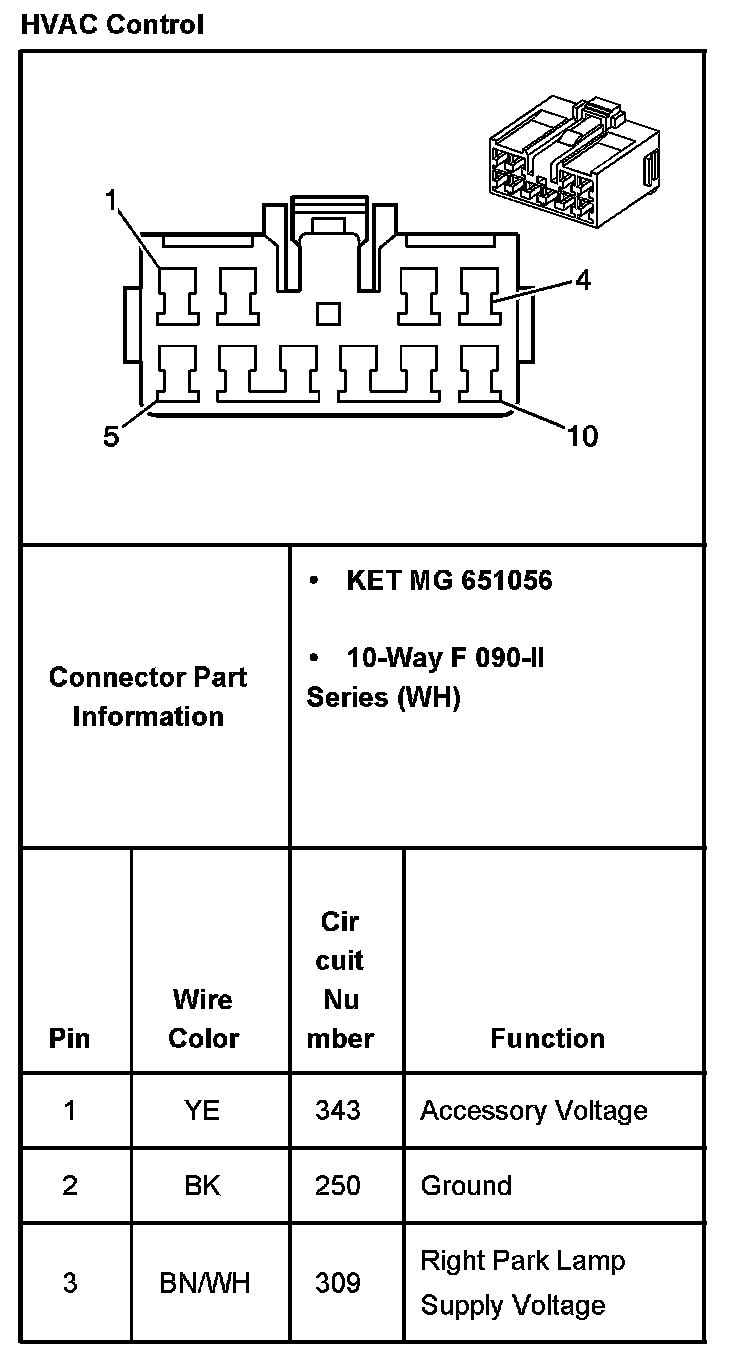

HVAC Control Part 1:

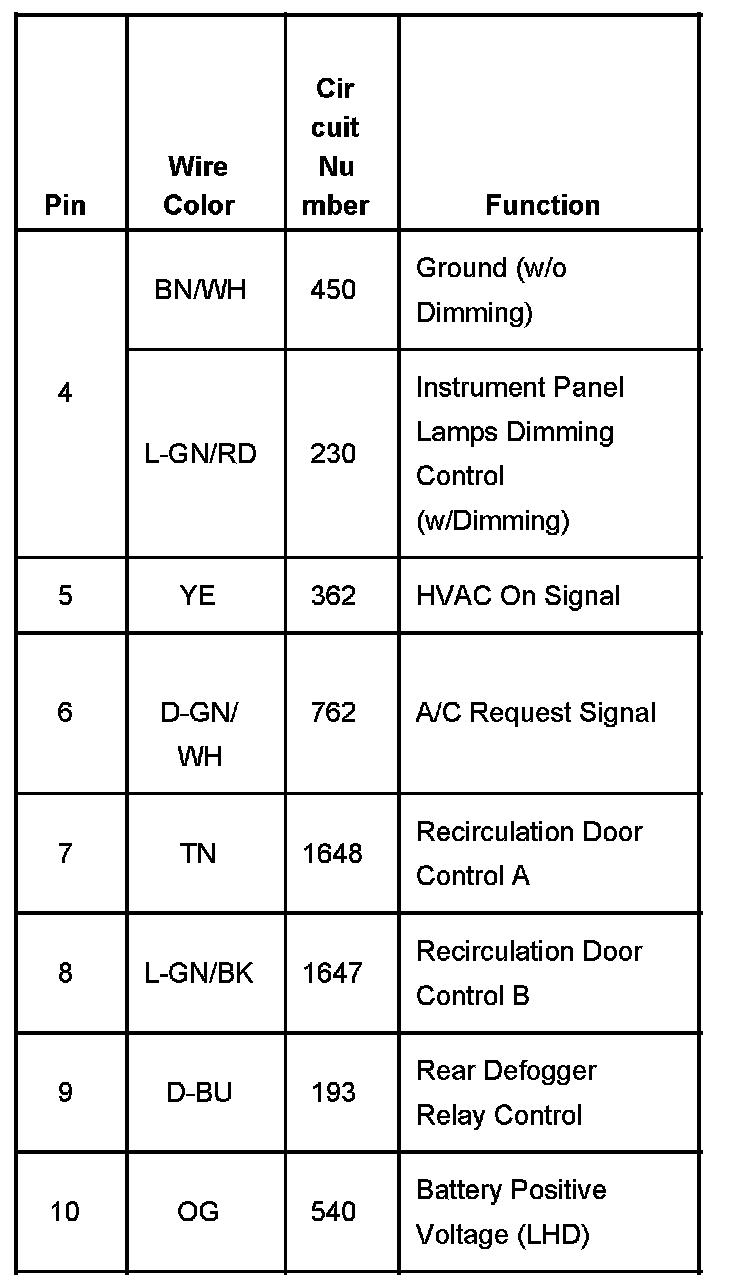

HVAC Control Part 2:
