Home >> Pontiac >> 2005 >> Sunfire L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Powertrain Control Module C1

Powertrain Control Module C1

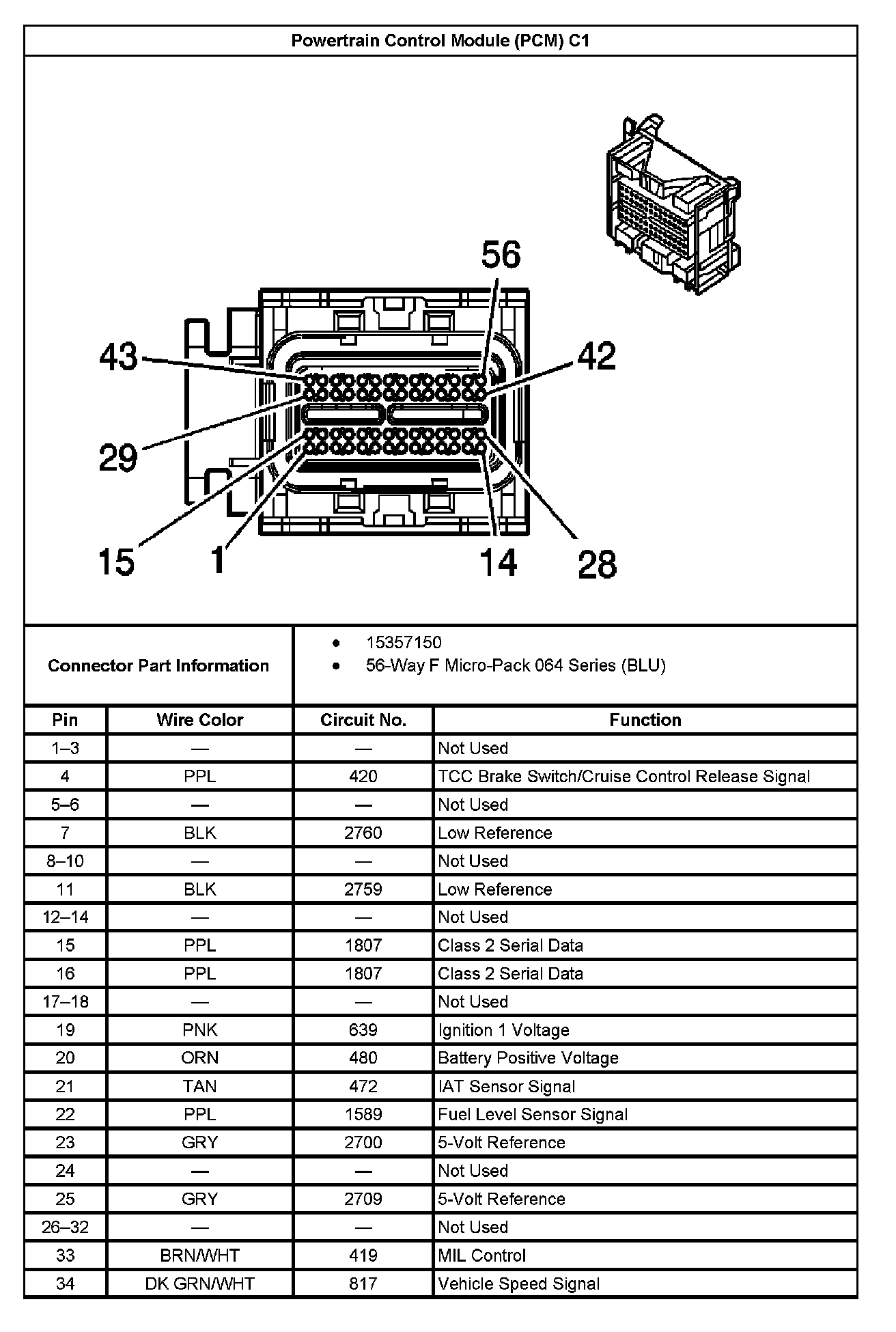

Powertrain Control Module (PCM) C1 Part 1:

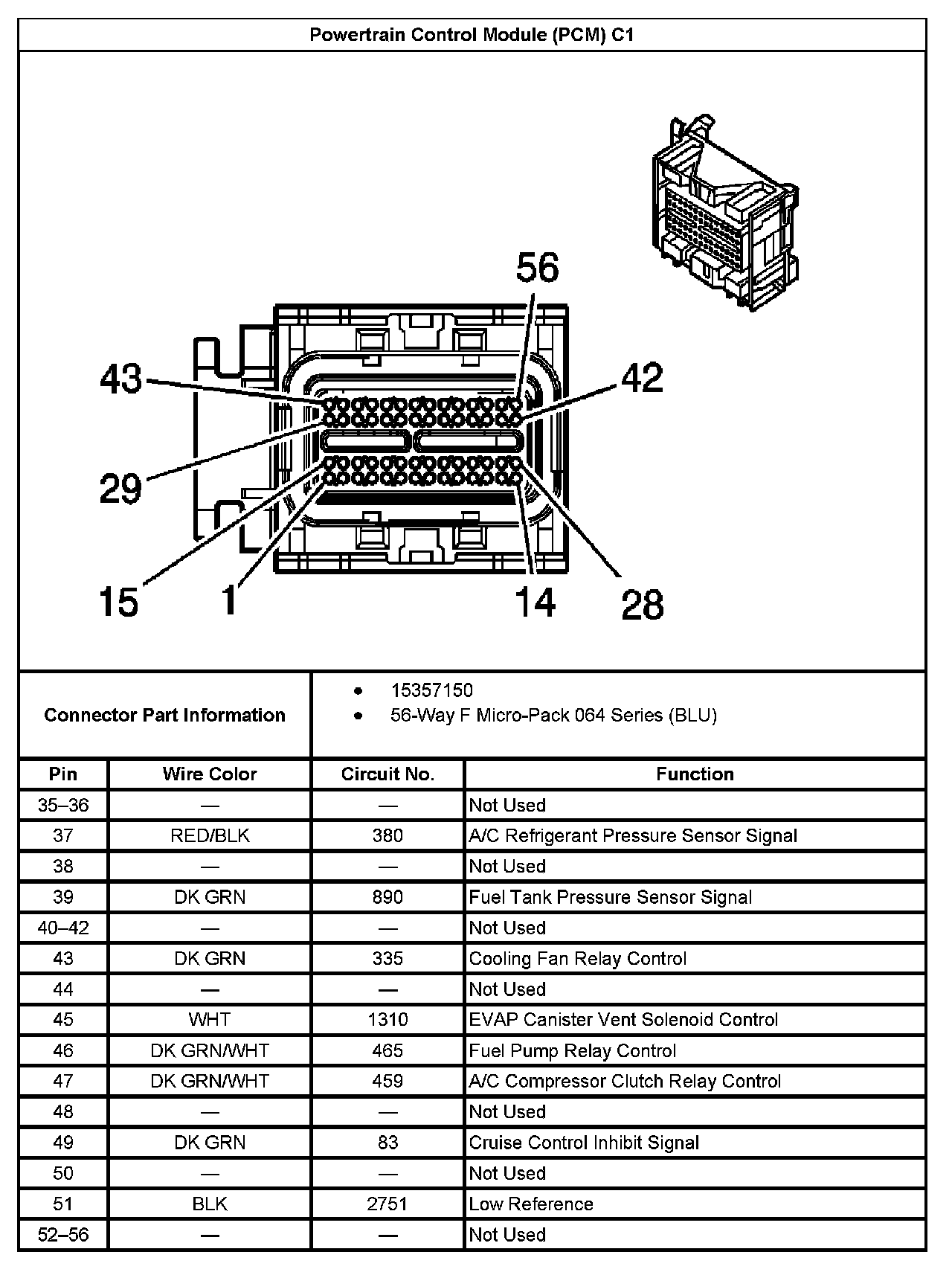

Powertrain Control Module (PCM) C1 Part 2:
