Air Bag Control Module
Air Bag Control Module

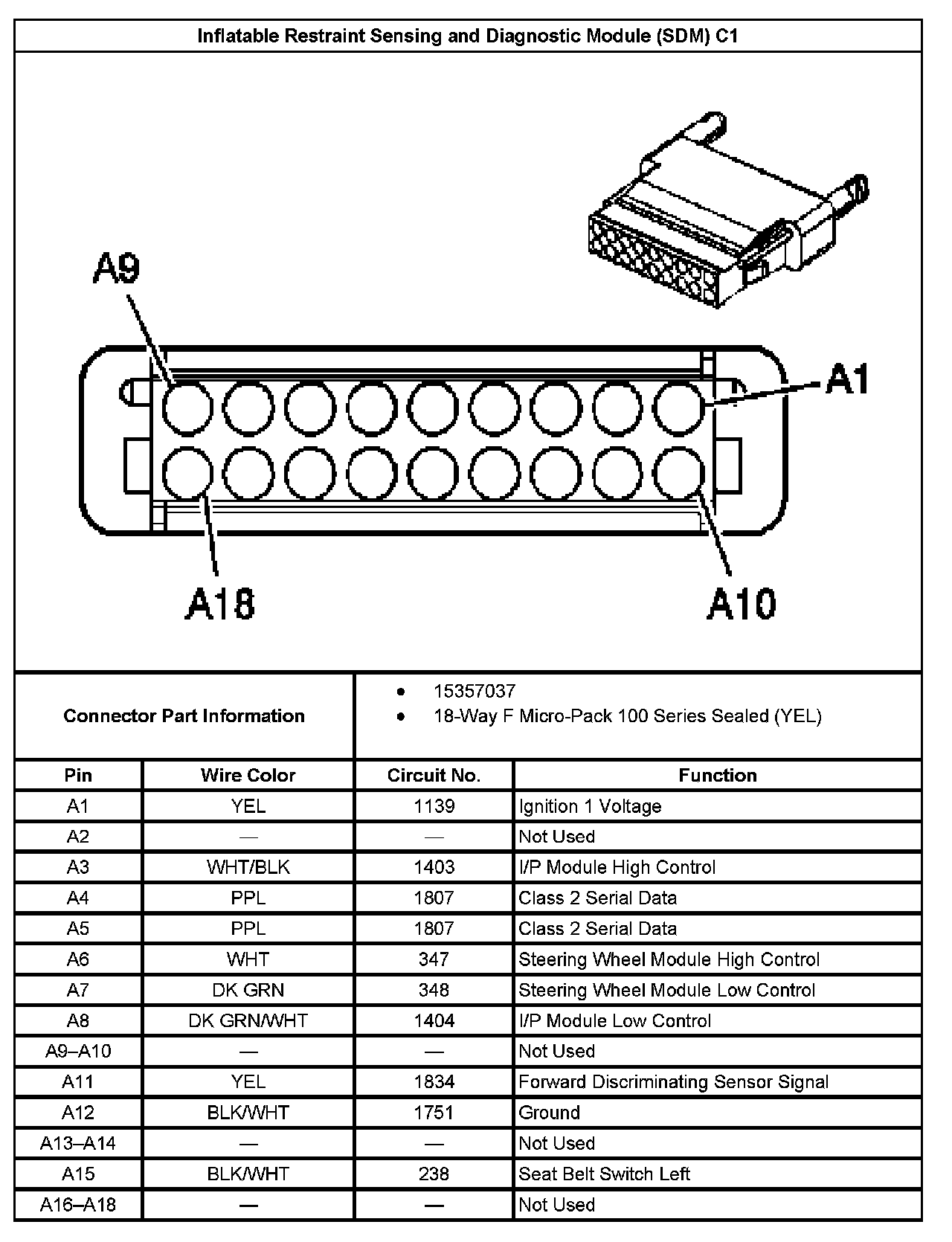

Inflatable Restraint Sensing And Diagnostic Module (SDM) C1:

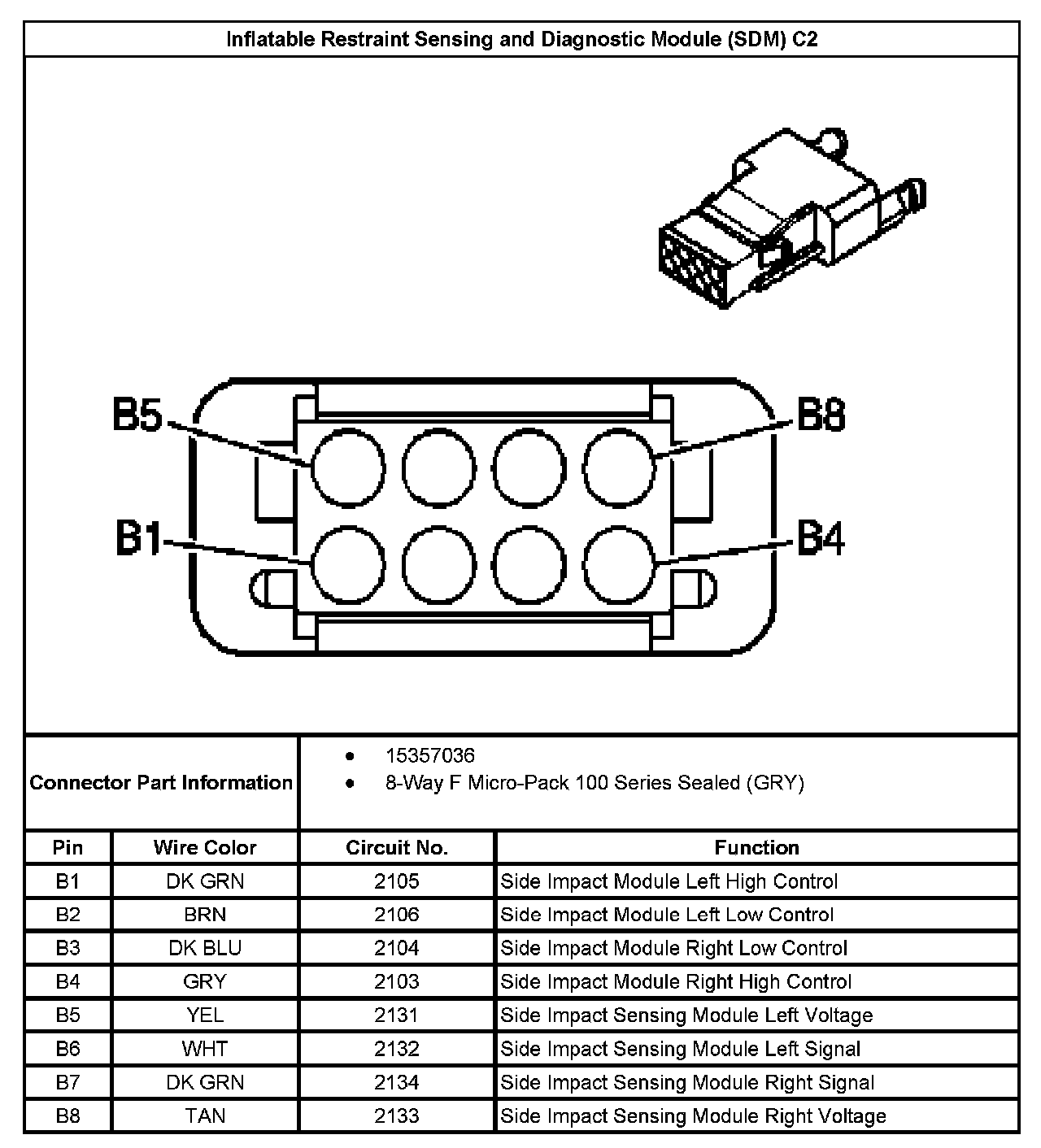

Inflatable Restraint Sensing And Diagnostic Module (SDM) C2:
