Home >> Pontiac >> 2005 >> Aztek FWD V6-3.4L VIN E >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Diagrams >> HVAC System - Automatic >> HVAC Control Module

HVAC Control Module

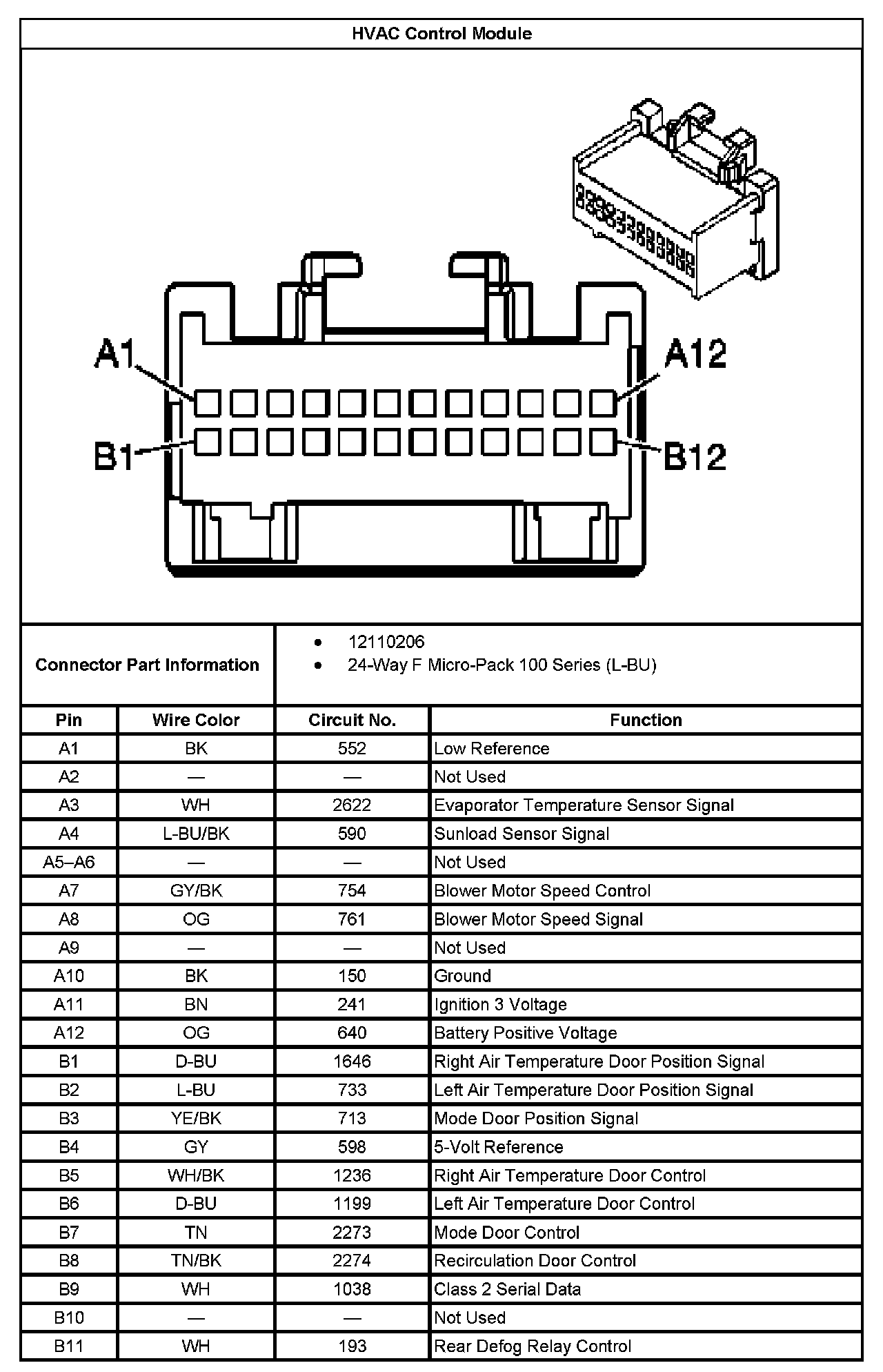

HVAC Control Module Part 1:

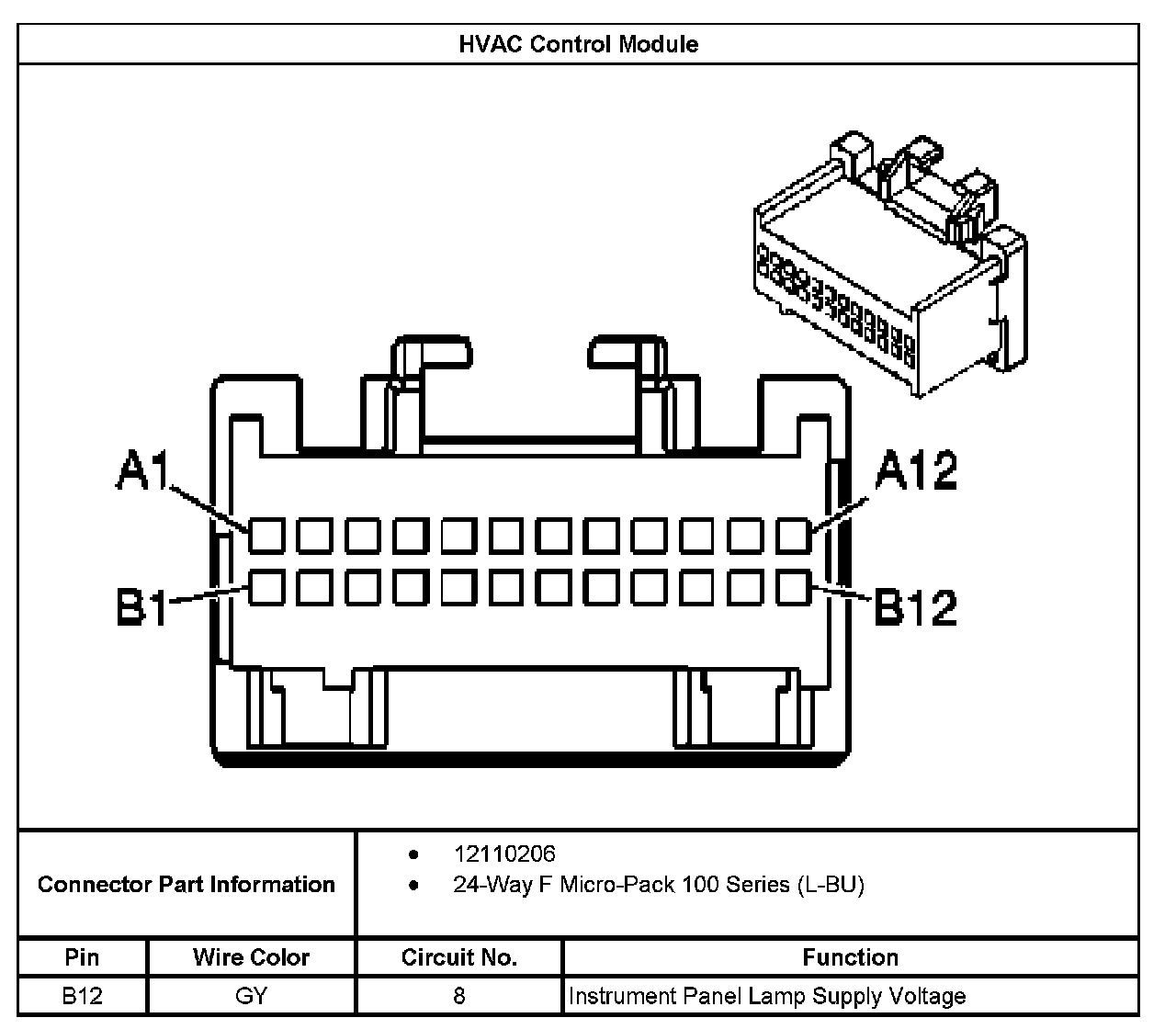

HVAC Control Module Part 2:
