Home >> Pontiac >> 2005 >> Aztek FWD V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> Power Mirror Control Module

Power Mirror Control Module

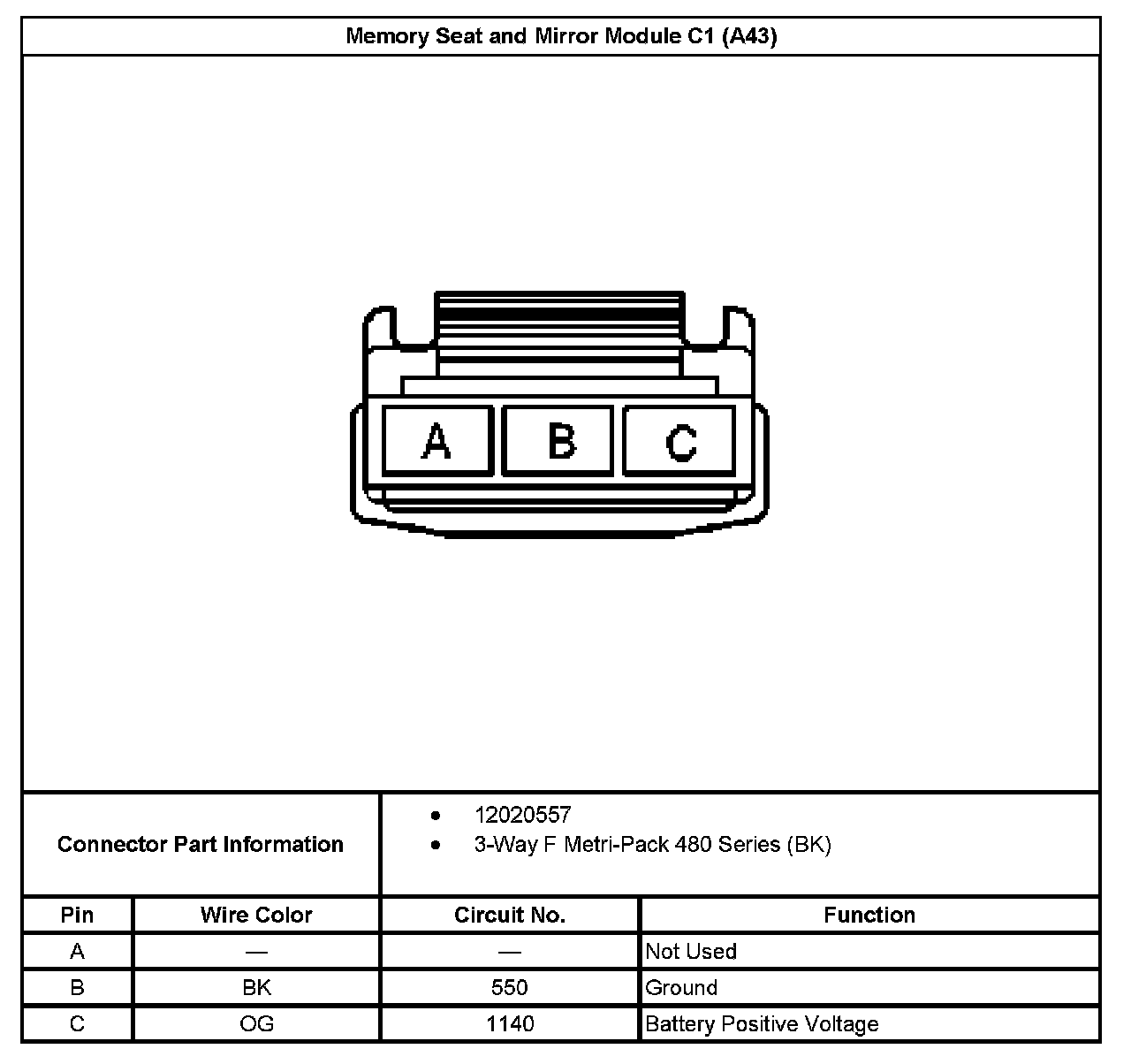

Memory Seat And Mirror Module C1 (With RPO Code A43):

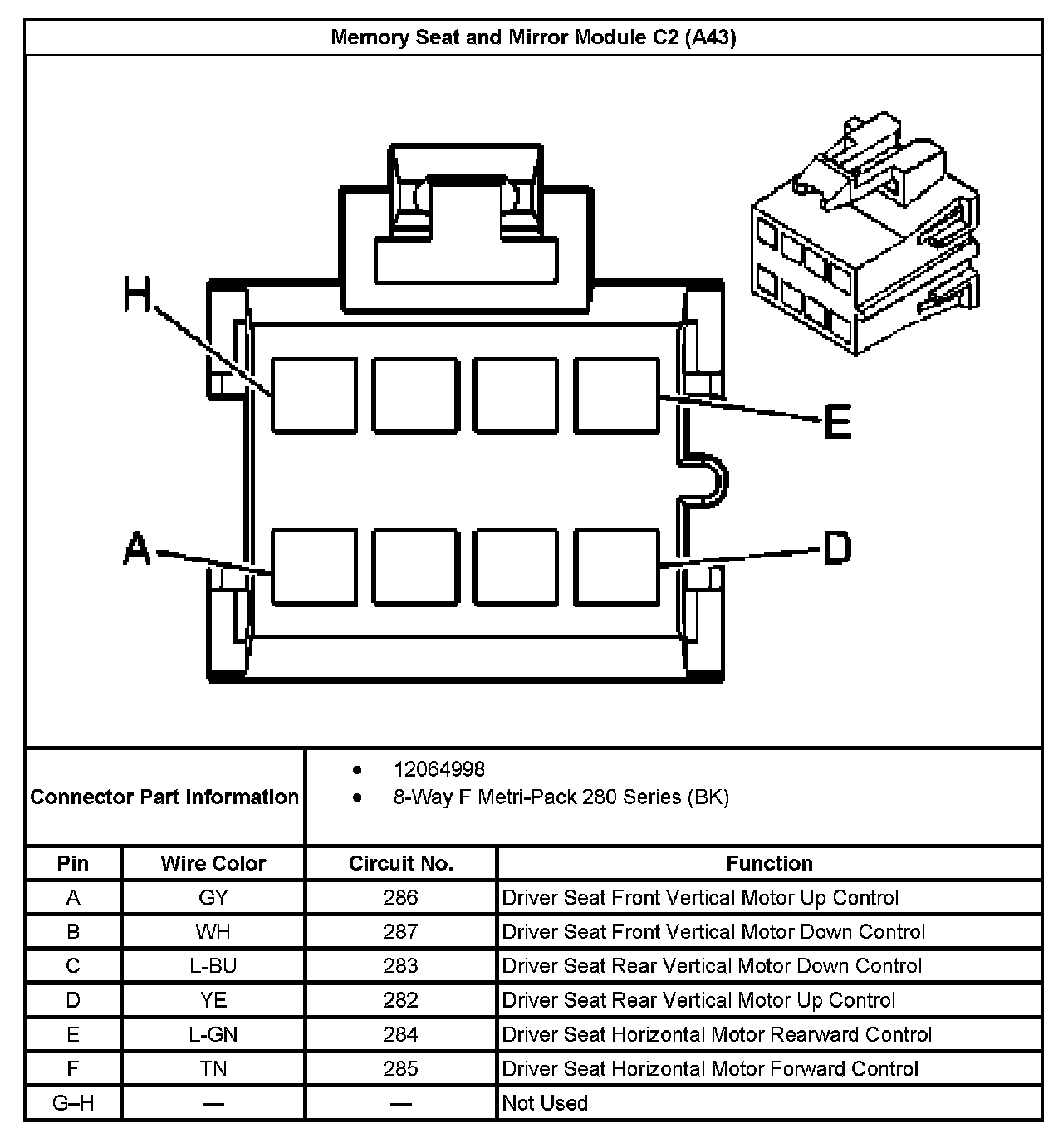

Memory Seat And Mirror Module C2 (With RPO Code A43):

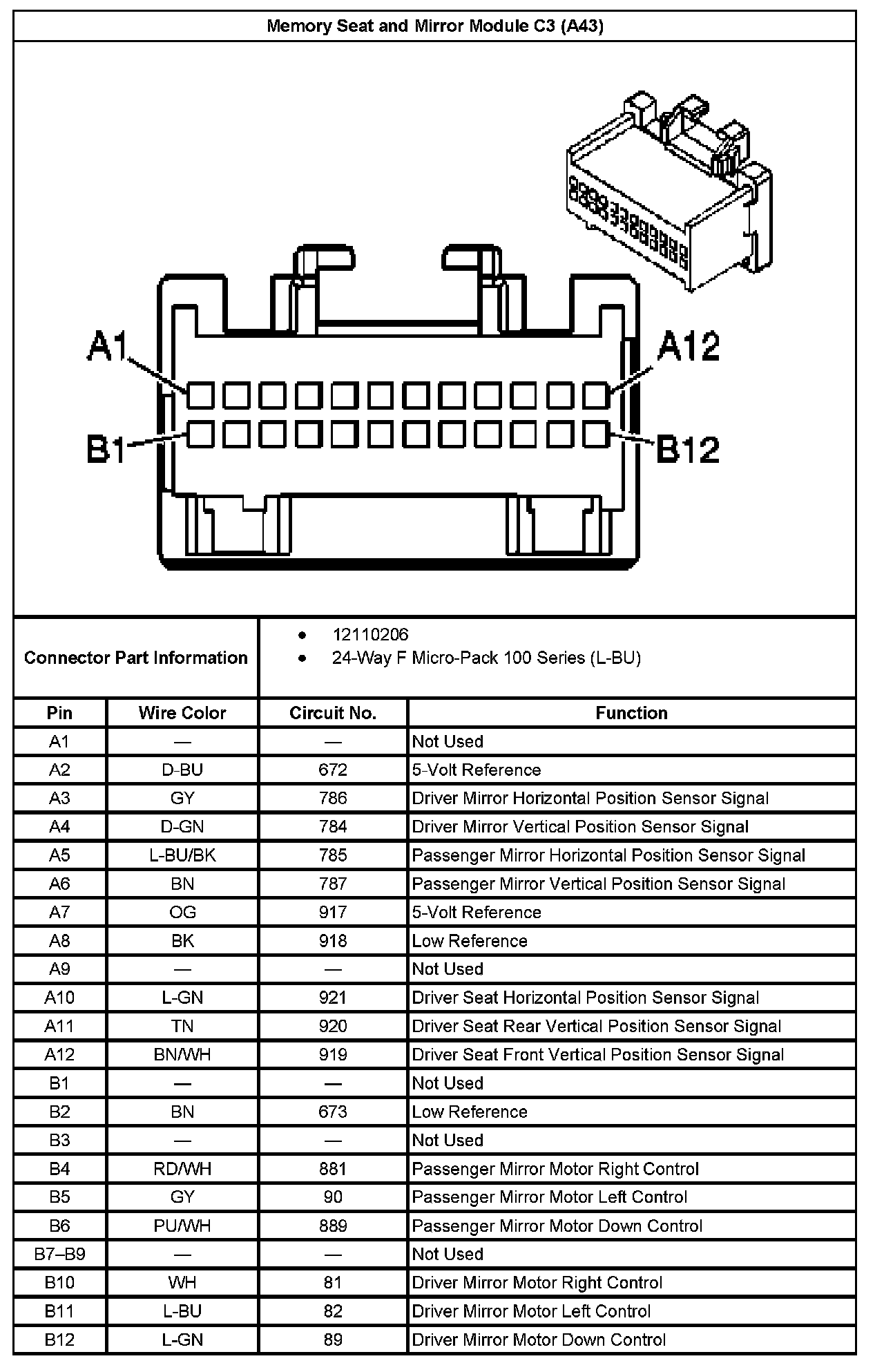

Memory Seat And Mirror Module C3 (With RPO Code A43):

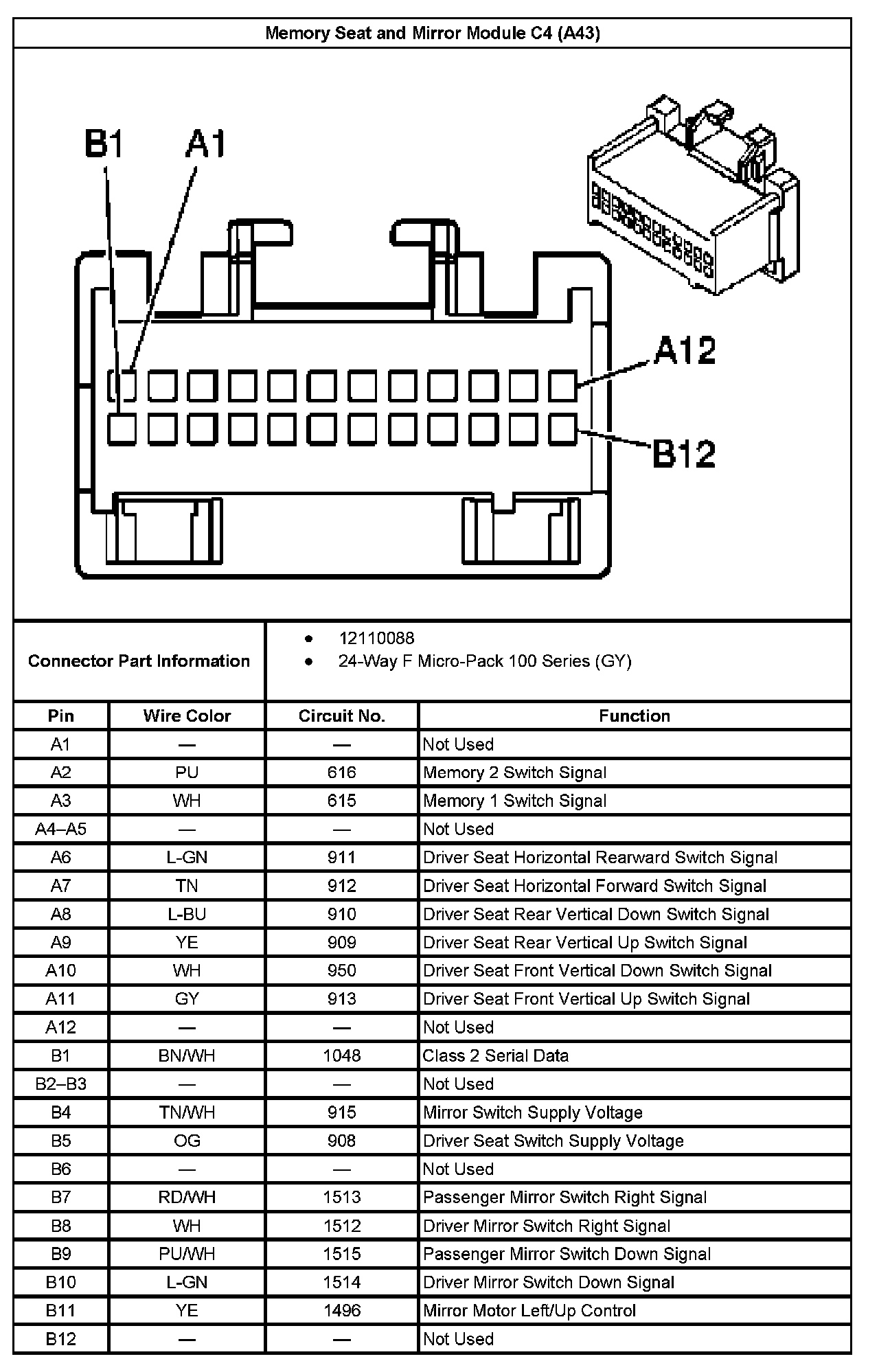

Memory Seat And Mirror Module C4 (With RPO Code A43):
