Home >> Pontiac >> 2005 >> Aztek FWD V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Components

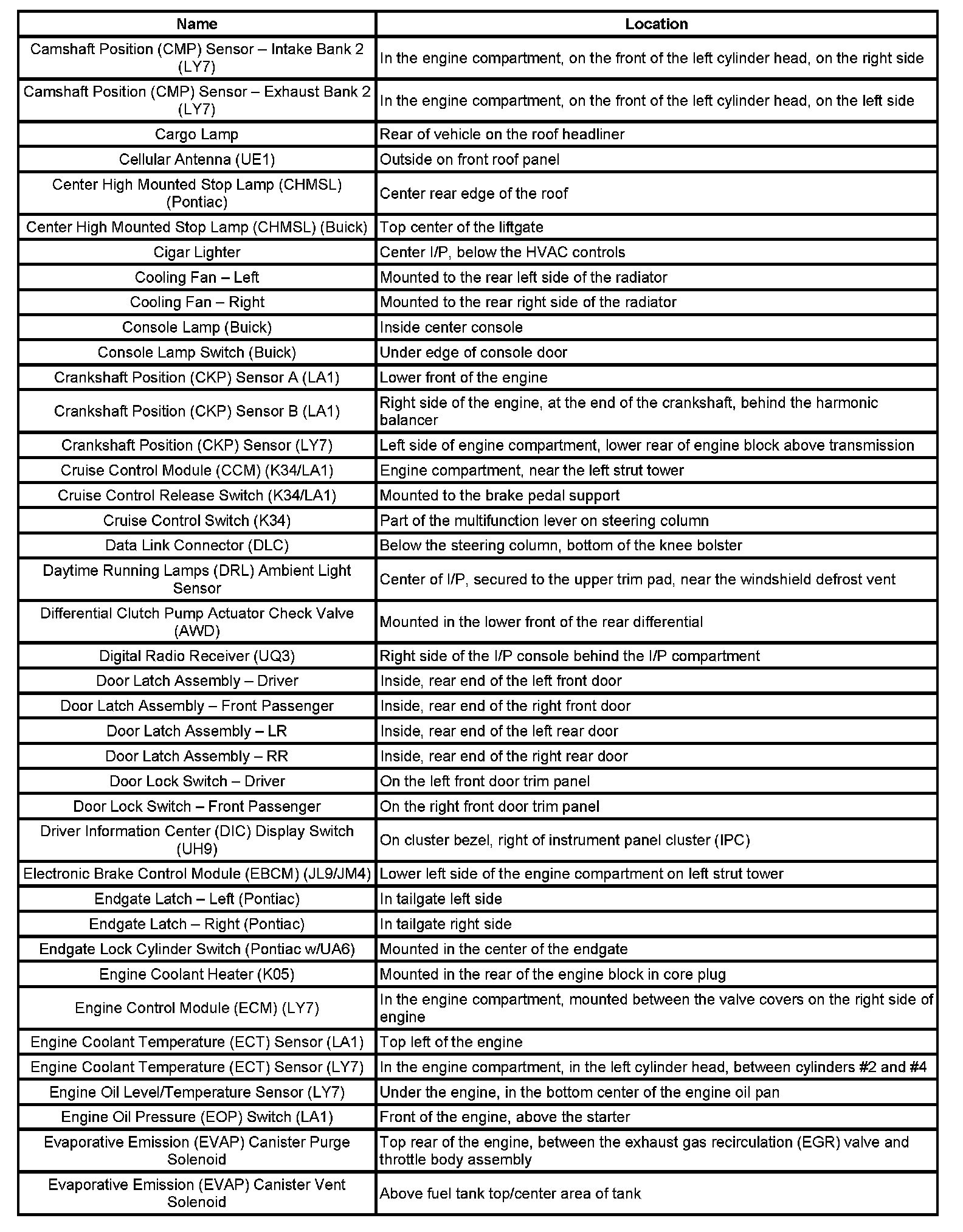

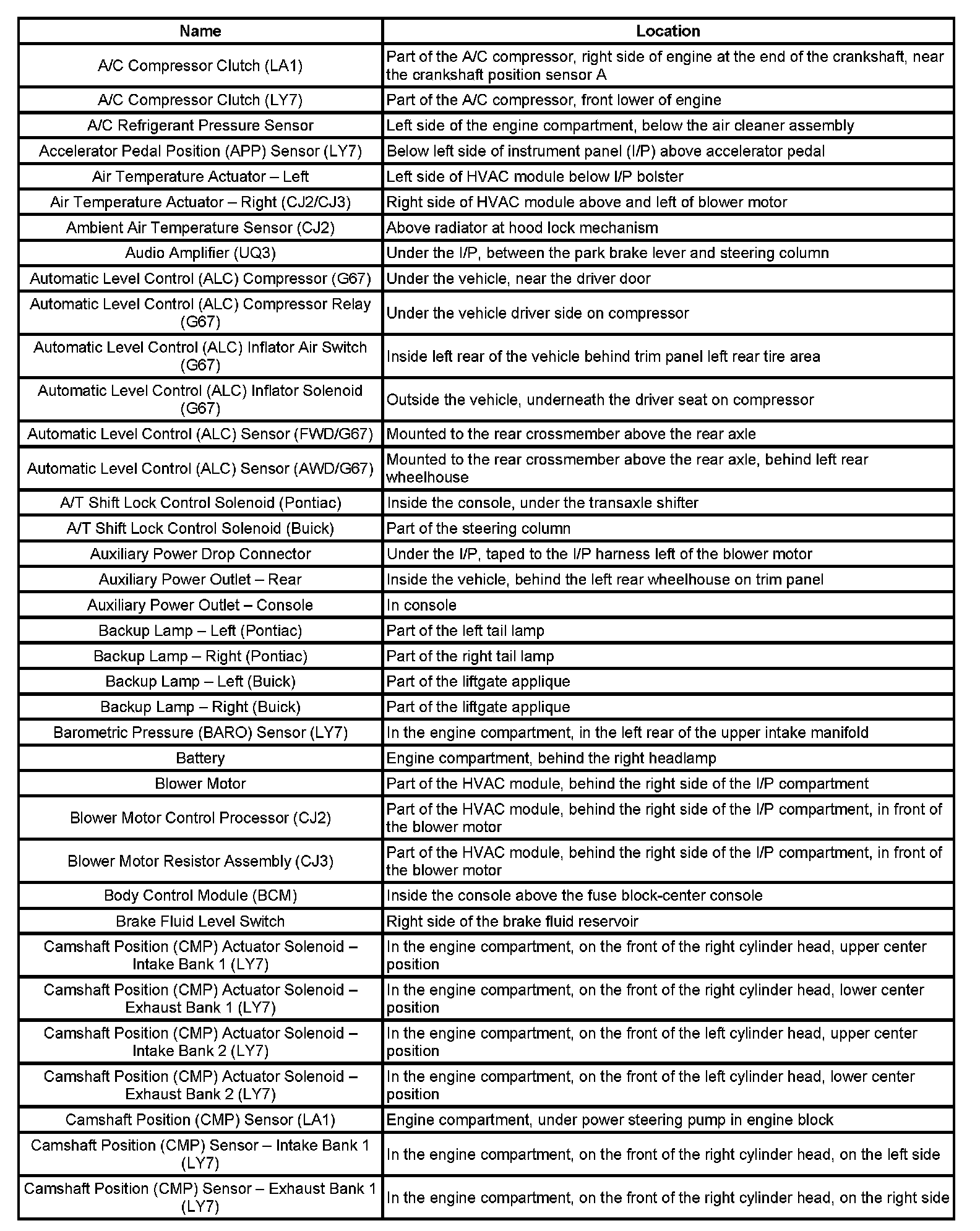

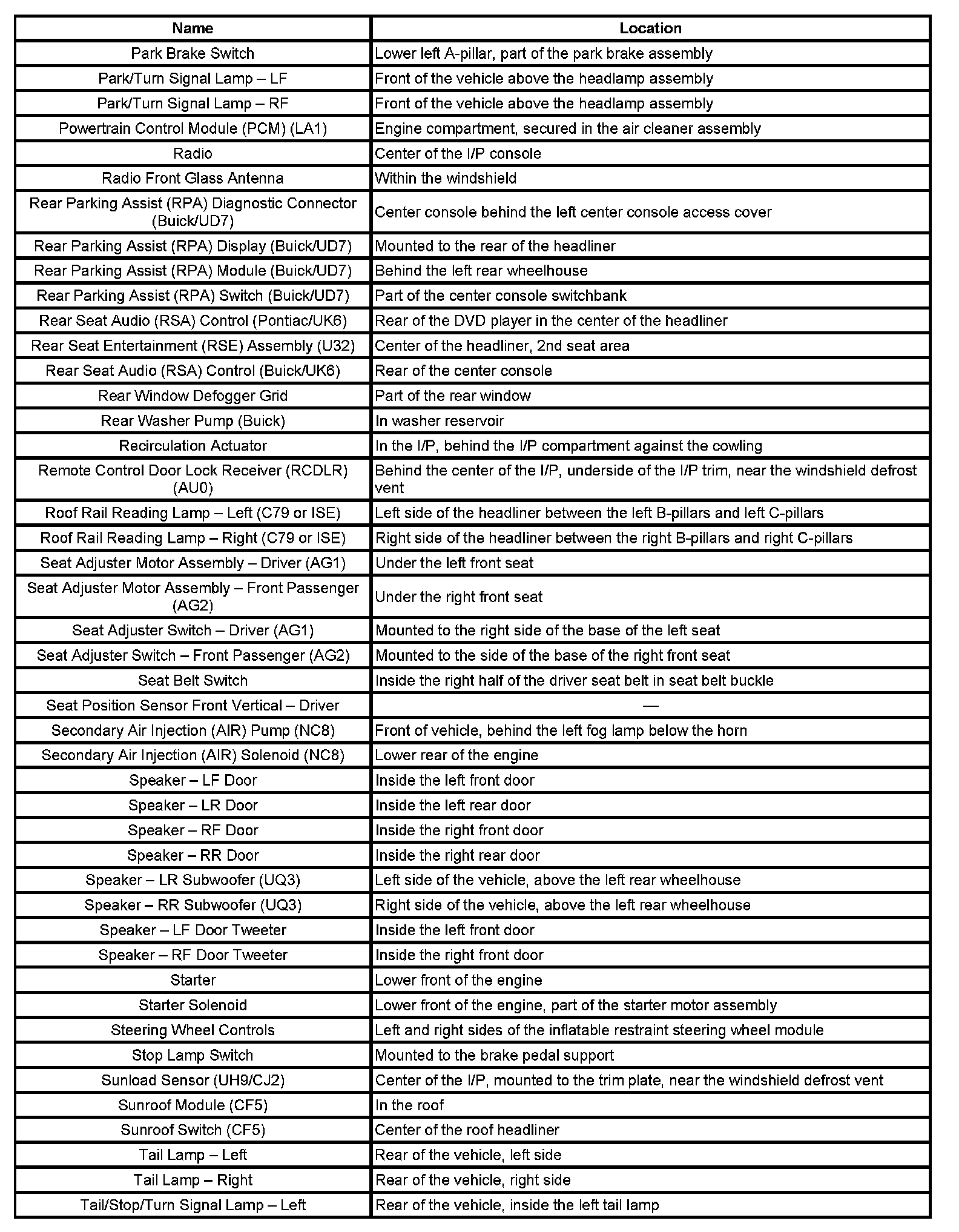

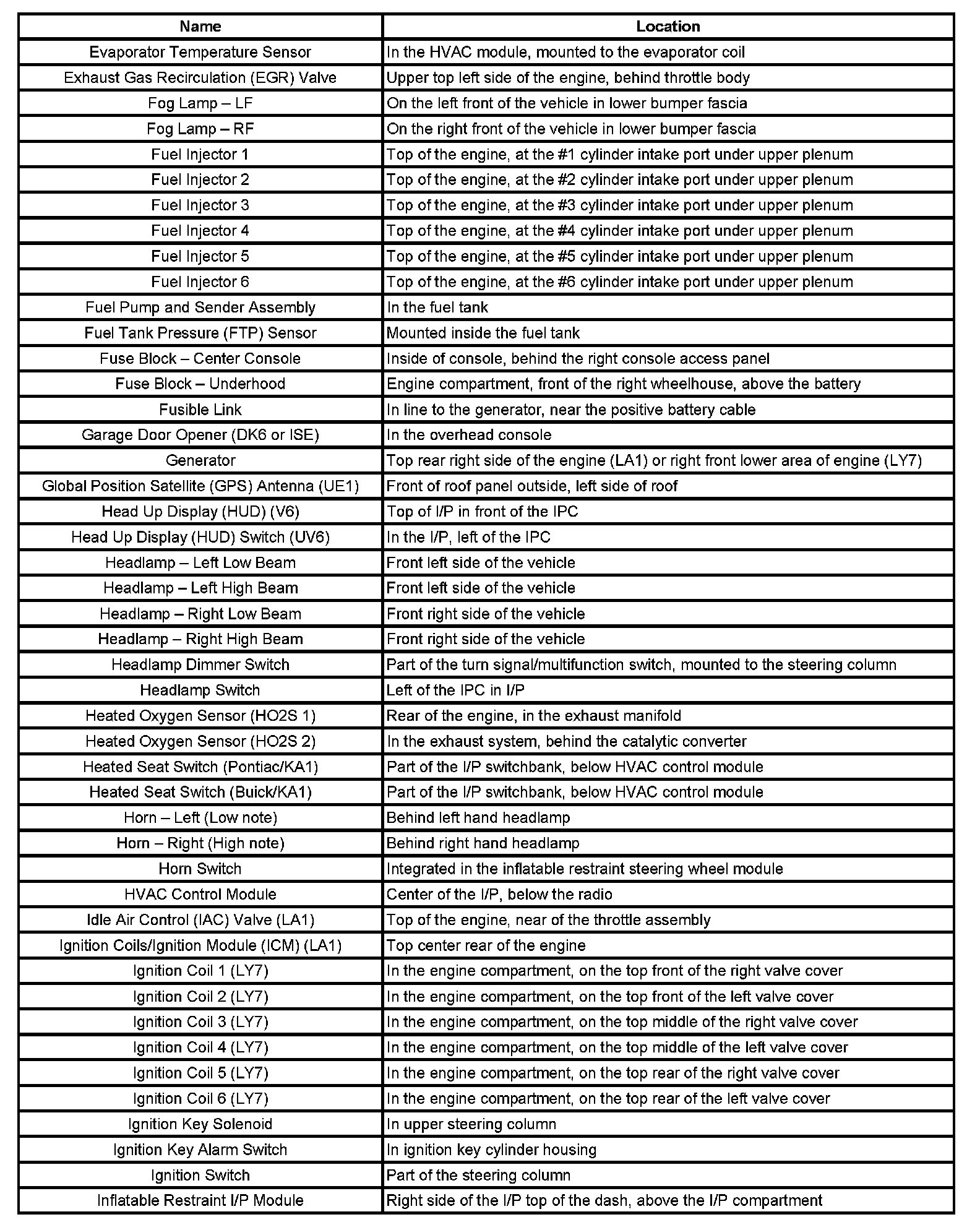

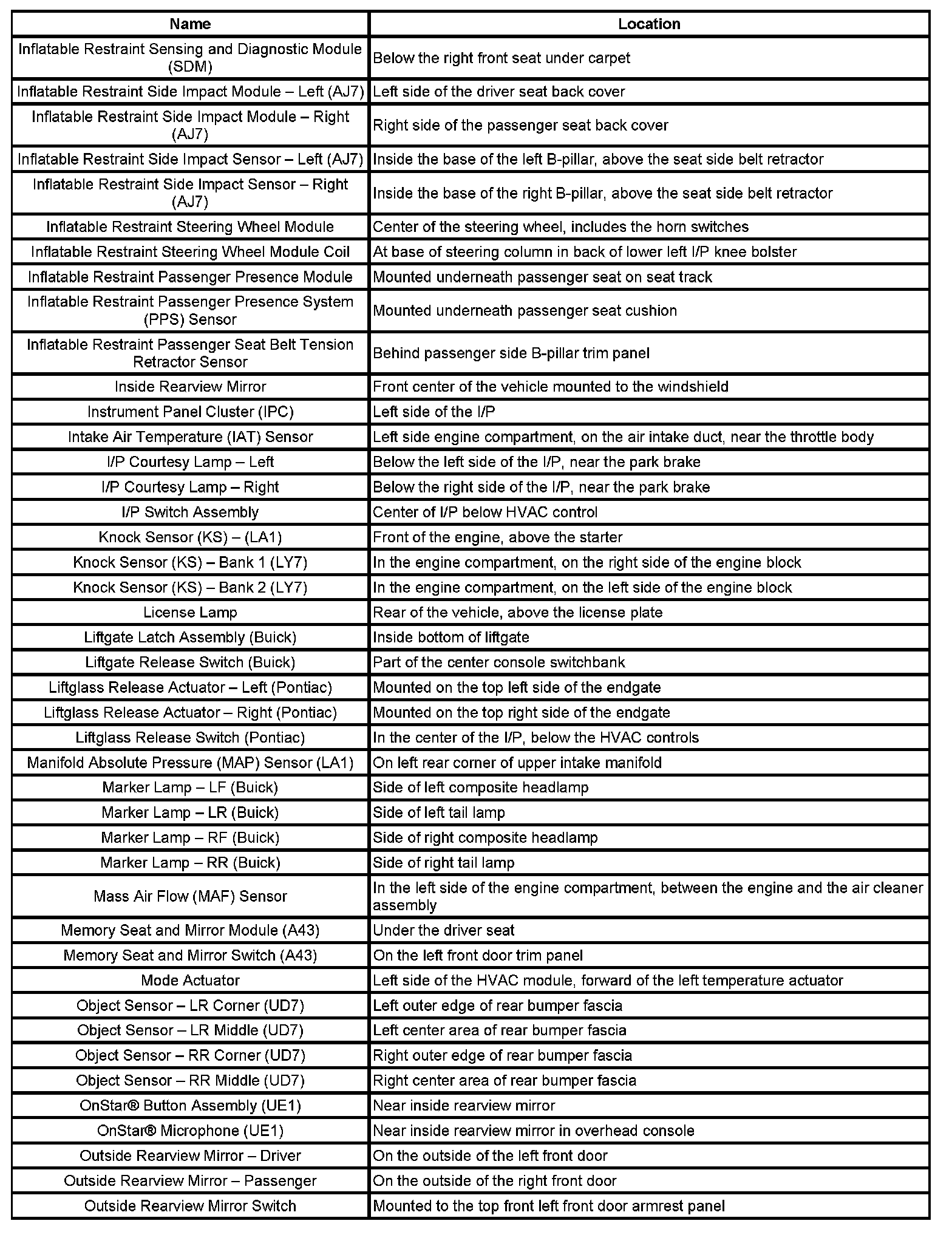

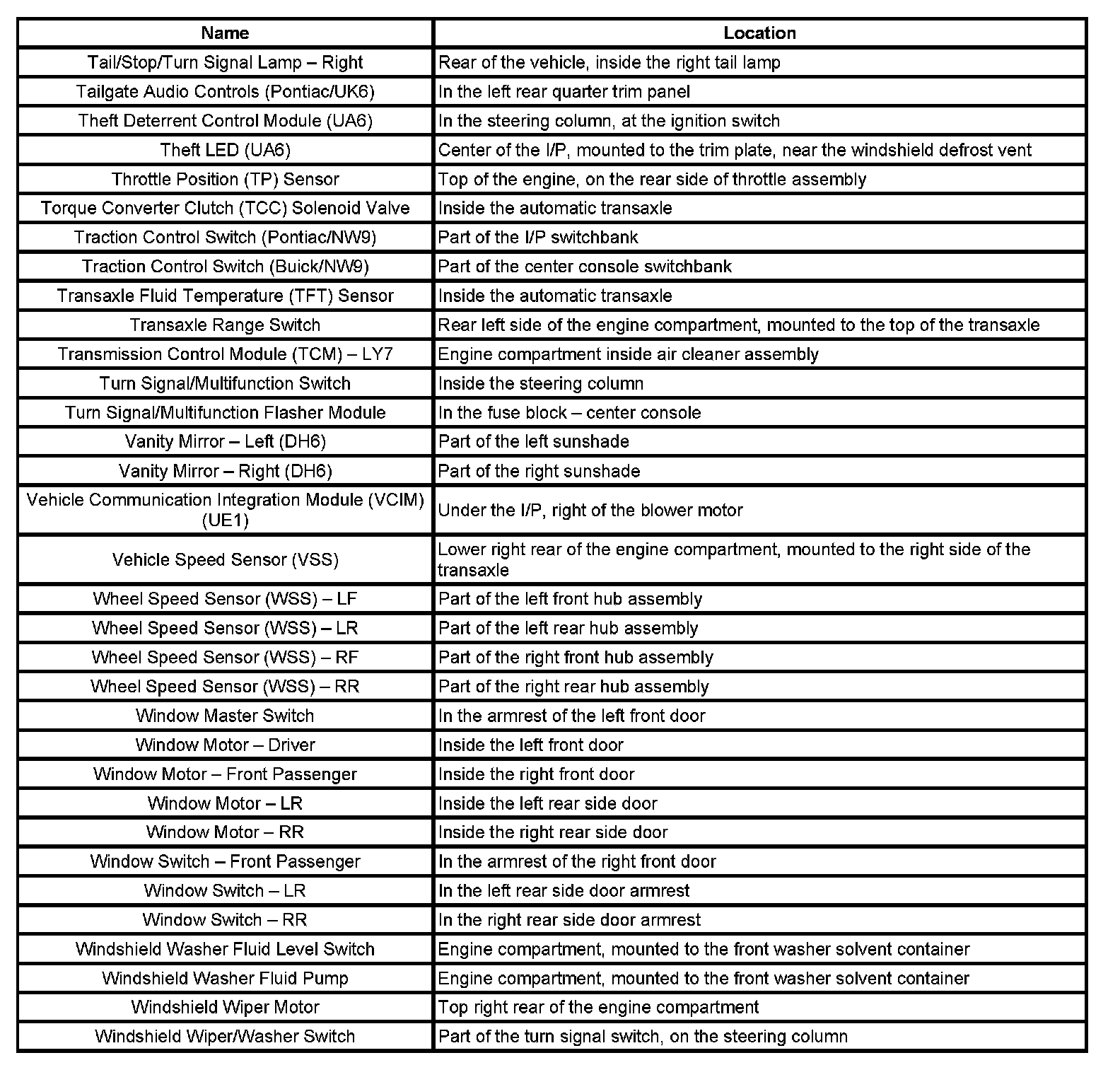

Components



A/C - Ca:




Ca - Ev:




Ev - In:




In - Ou:




Pa - Ta:




Ta - Wi:
