Home >> Pontiac >> 2004 >> Sunfire L4-2.2L VIN F >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Diagrams

Throttle Position Sensor: Diagrams

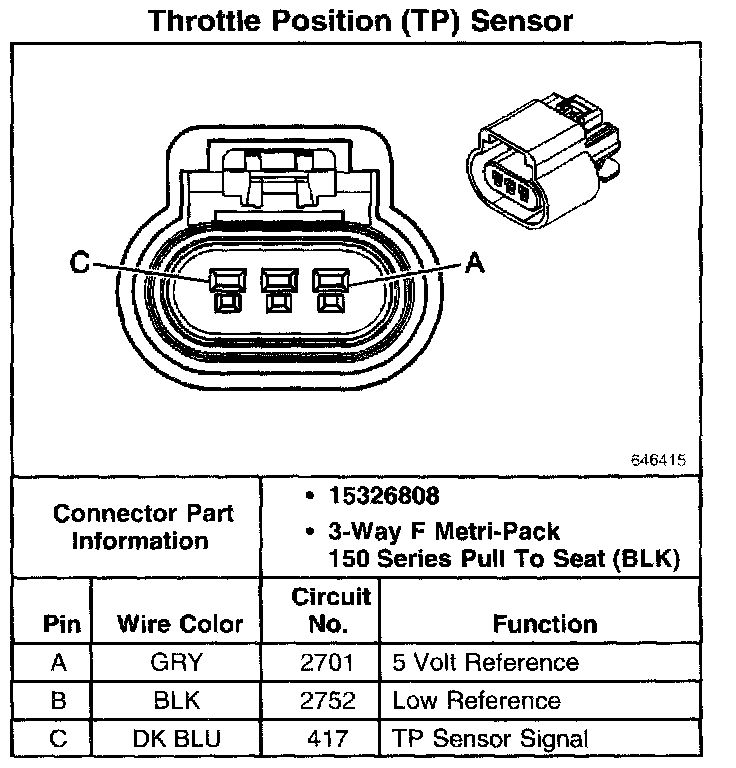

Throttle Position (TP) Sensor:
