Engine Control Module: Diagrams

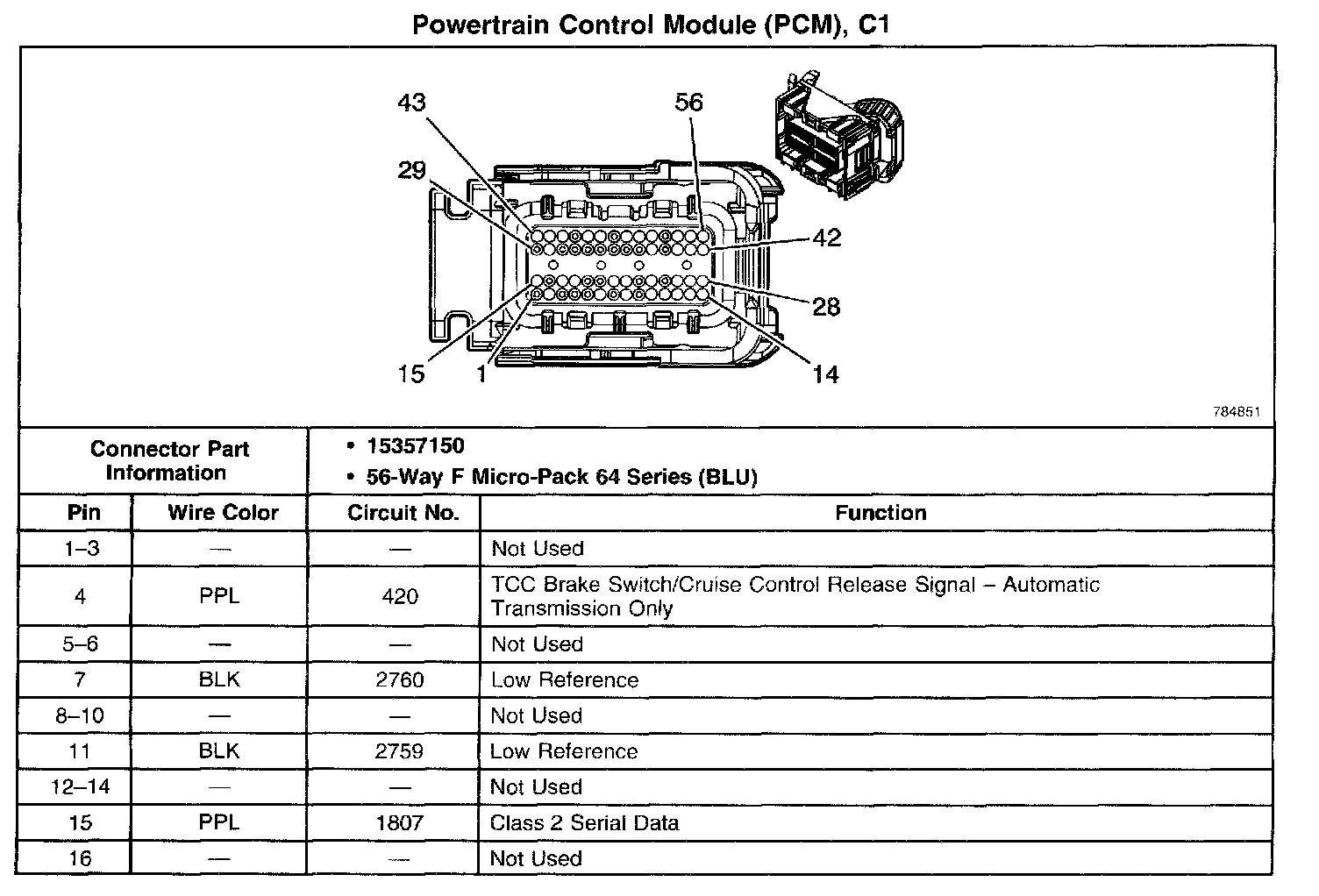

Powertrain Control Module (PCM), C1 Part 1:

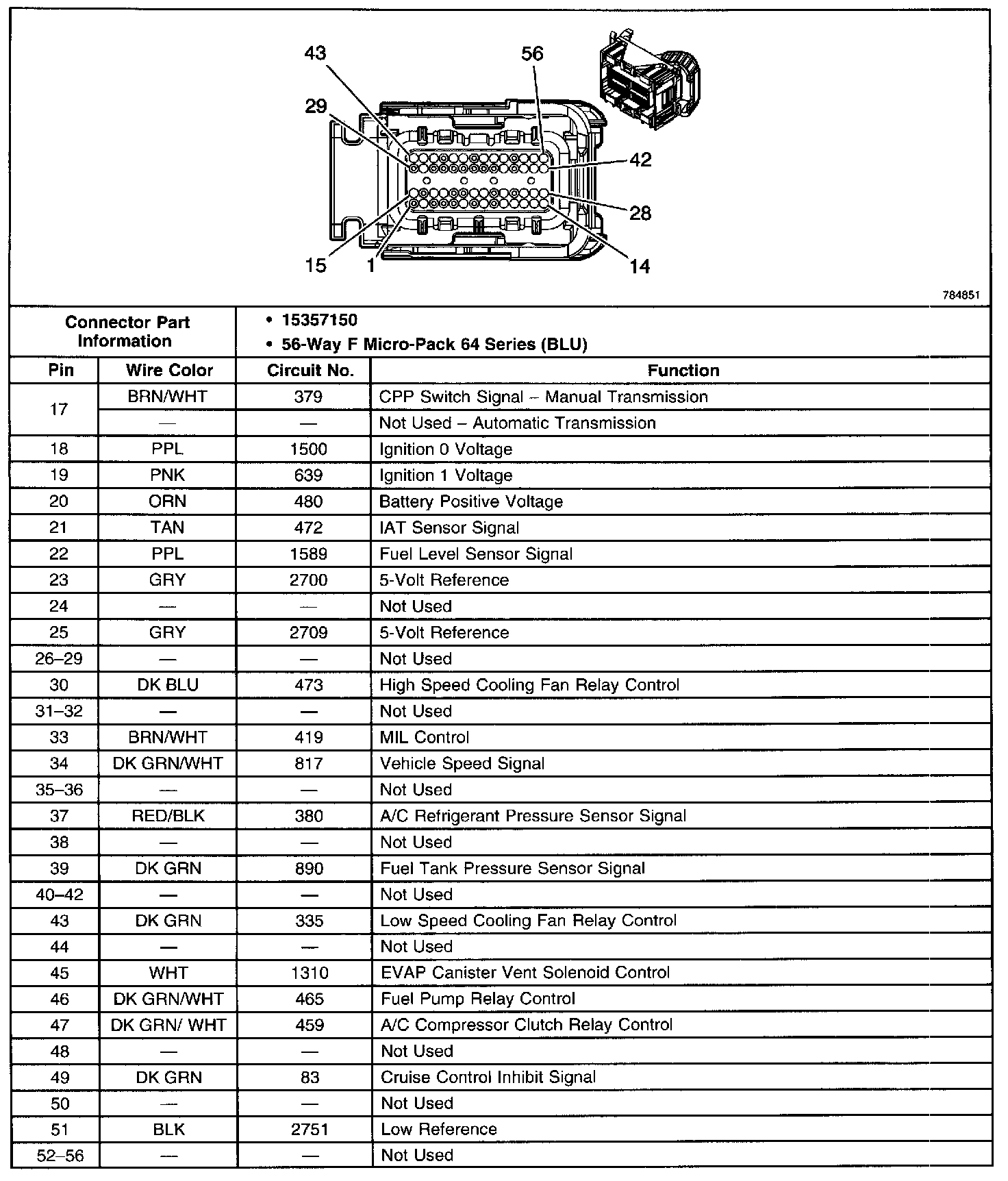

Powertrain Control Module (PCM), C1 Part 2:

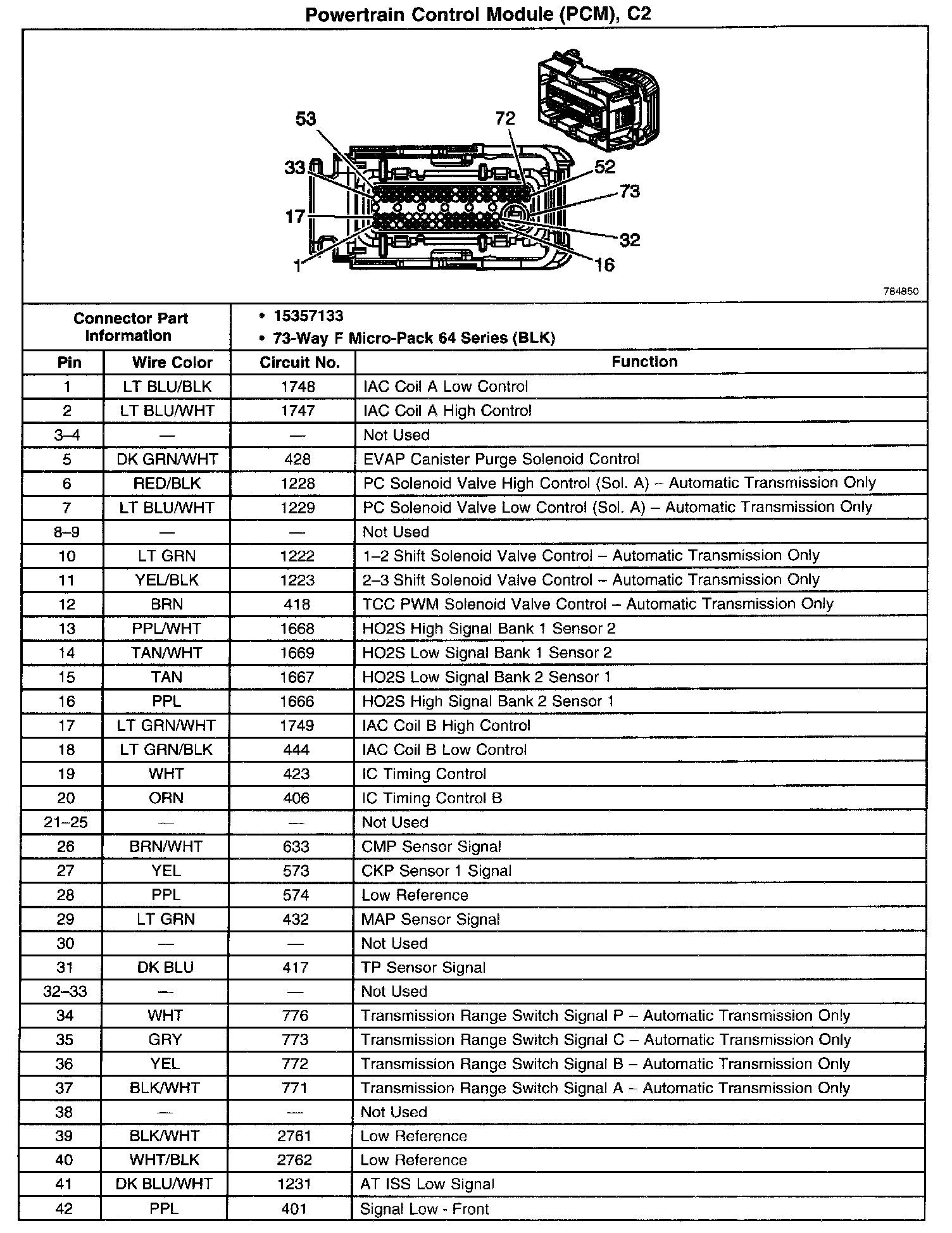

Powertrain Control Module (PCM), C2 Part 1:

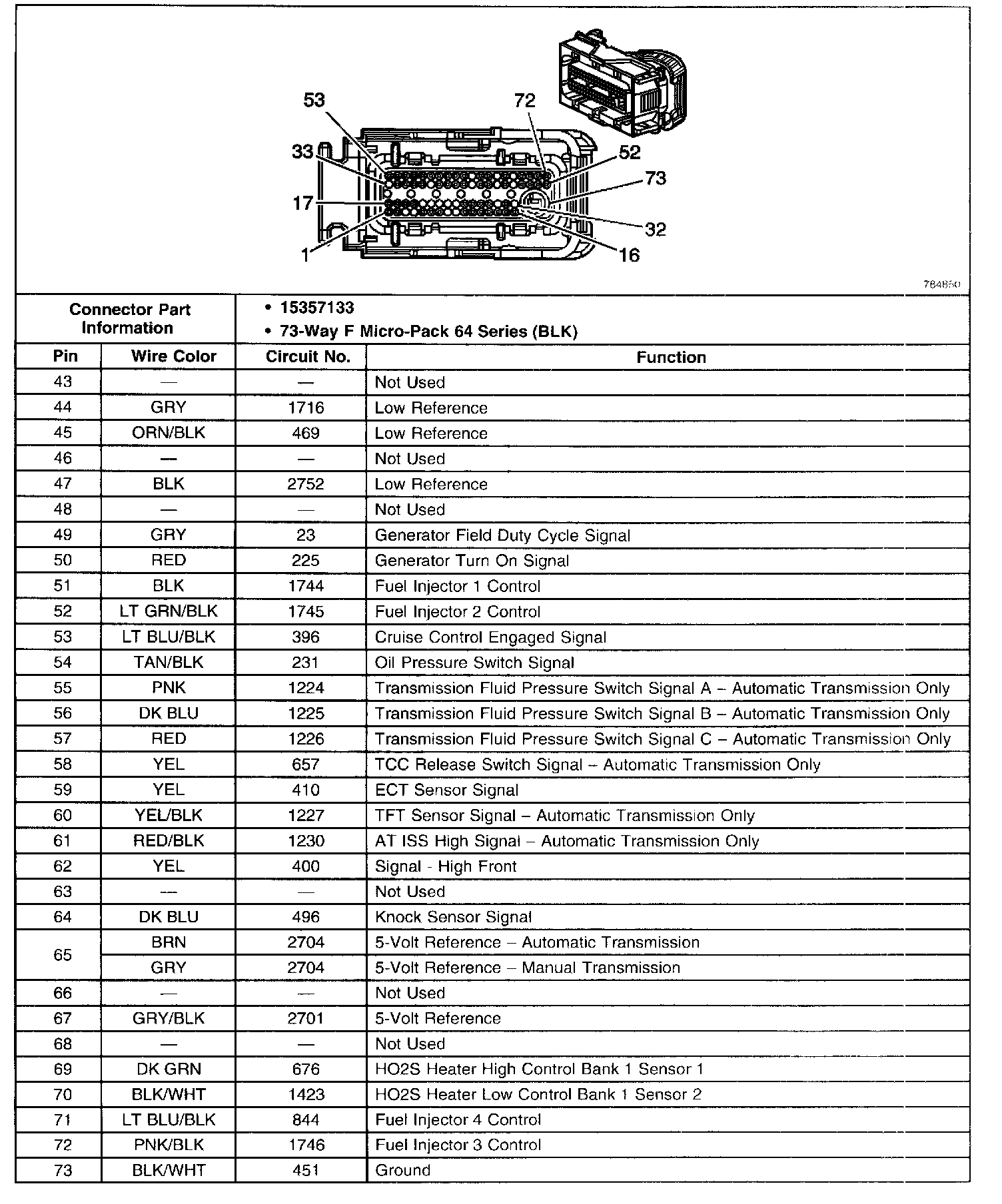

Powertrain Control Module (PCM), C2 Part 2:
