Intake Manifold

Intake Manifold
Install the intake manifold bolts.

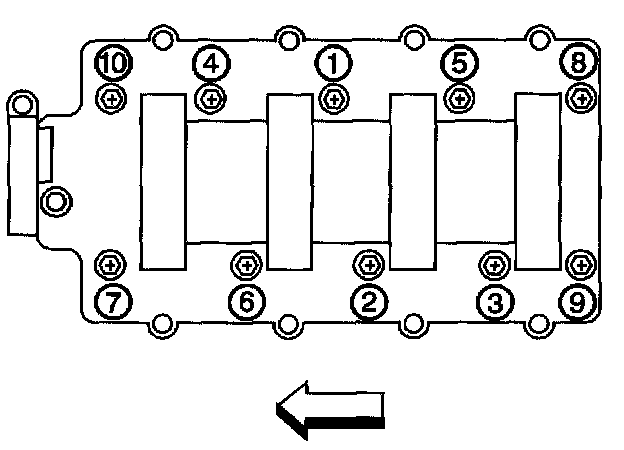

Tighten bolts a first pass in sequence to 5 Nm (44 inch lbs.).
Tighten bolts a final pass in sequence to 10 Nm (89 inch lbs.).

Throttle Body Bolts 12 Nm (106 inch lbs.)
