Home >> Pontiac >> 2004 >> GTO V8-5.7L VIN G >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> PCM Connector C2

PCM Connector C2

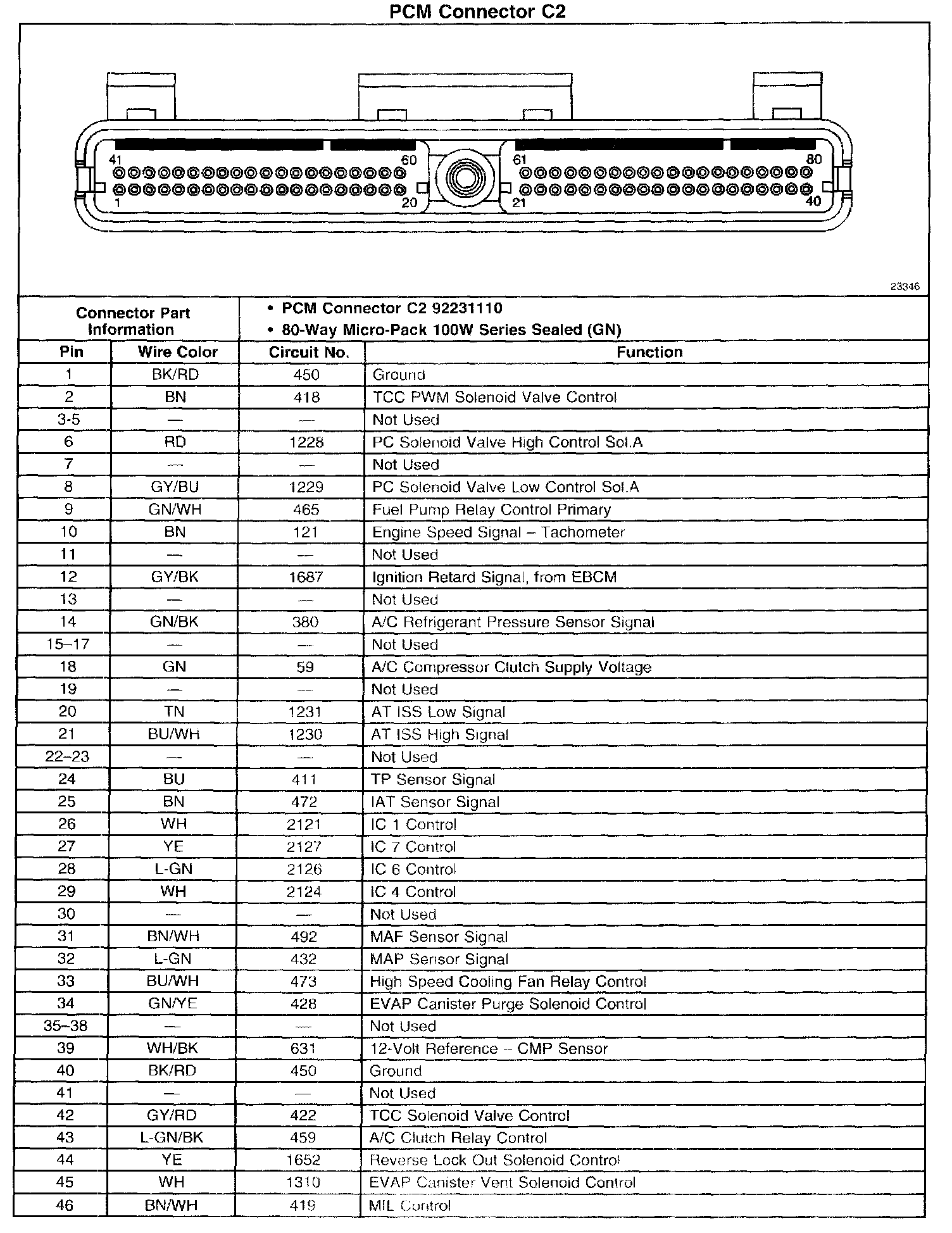

PCM Connector C2:

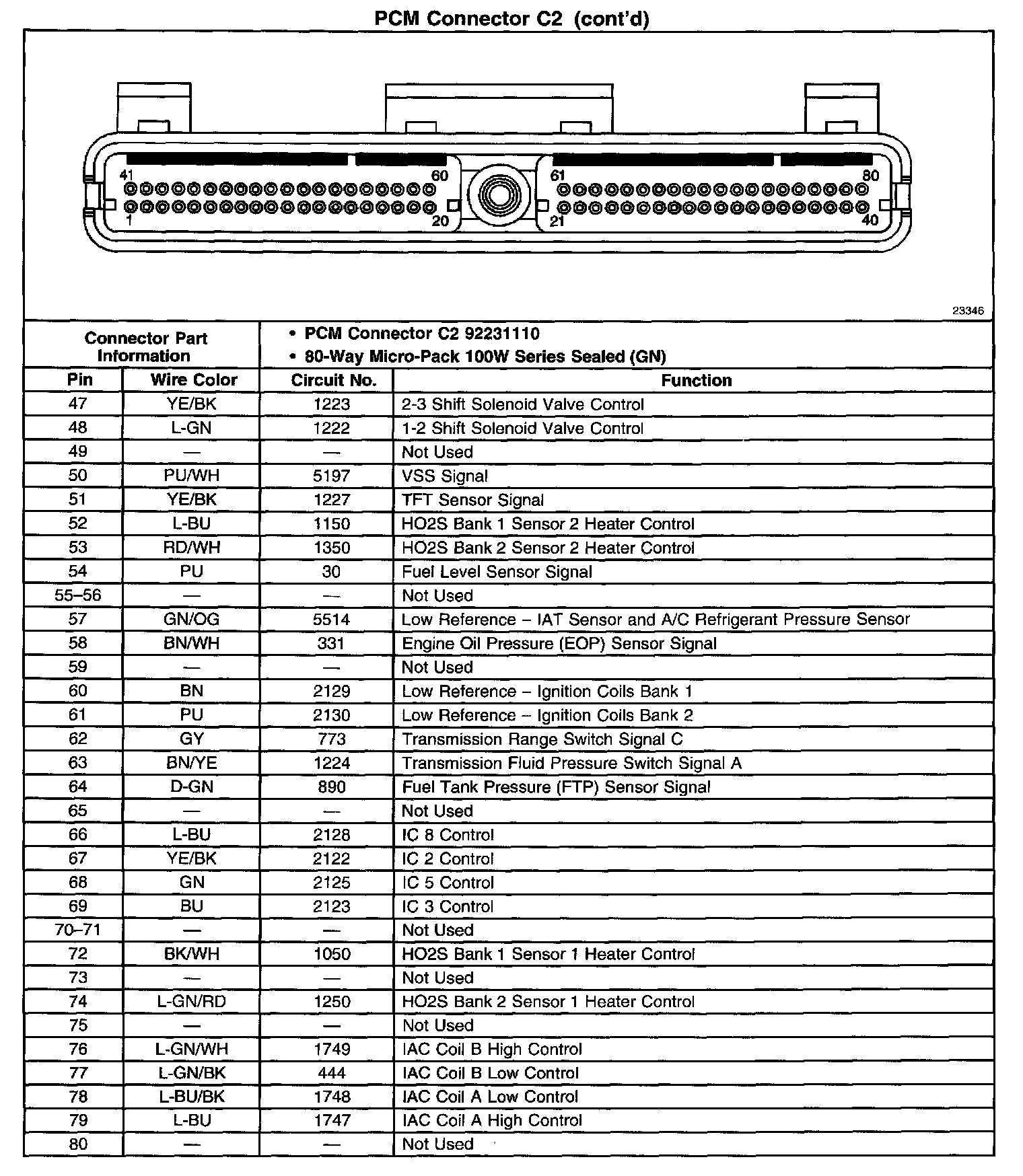

PCM Connector C2 Cont'd:
