Component Locations

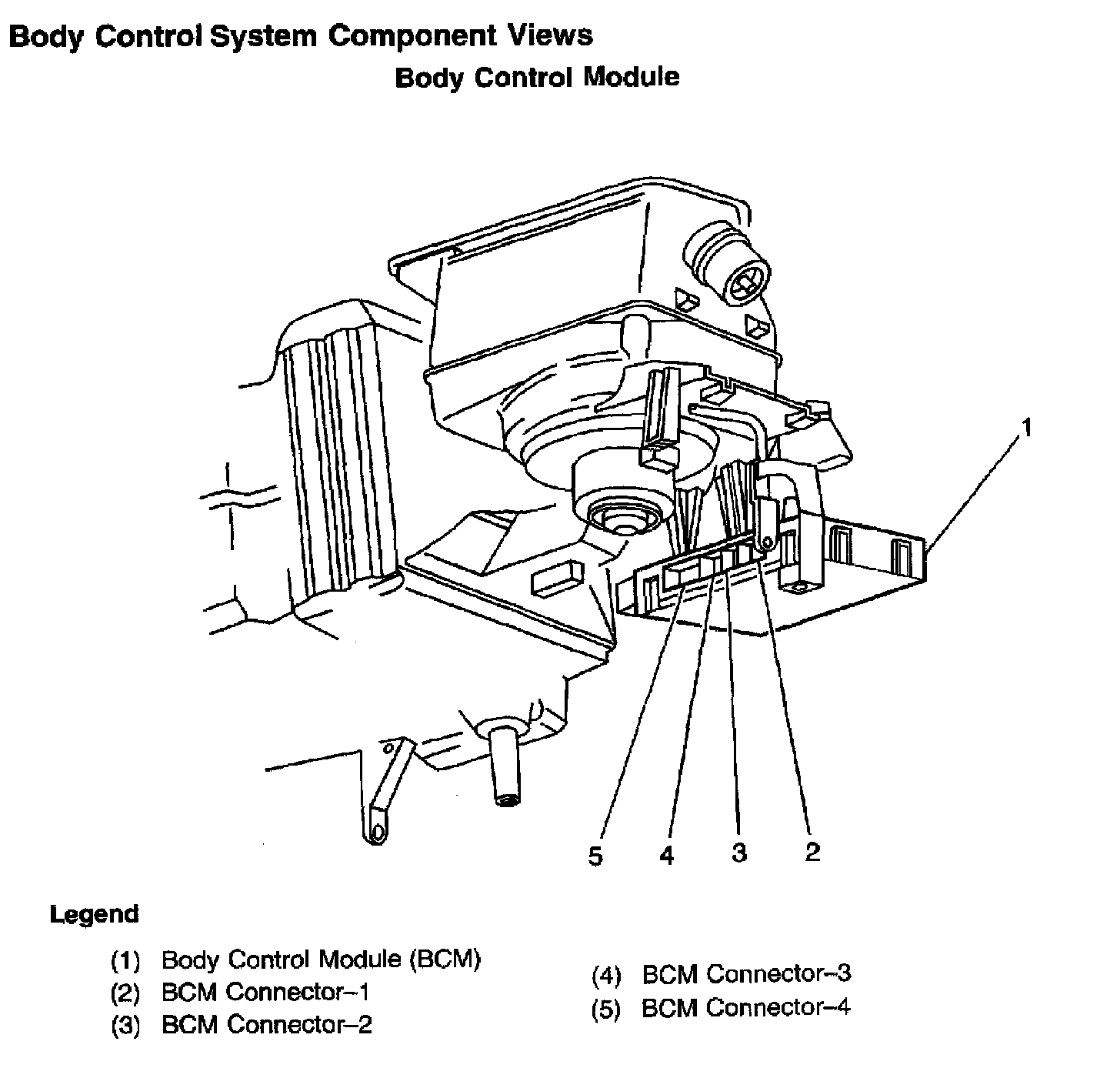

Body Control Module:

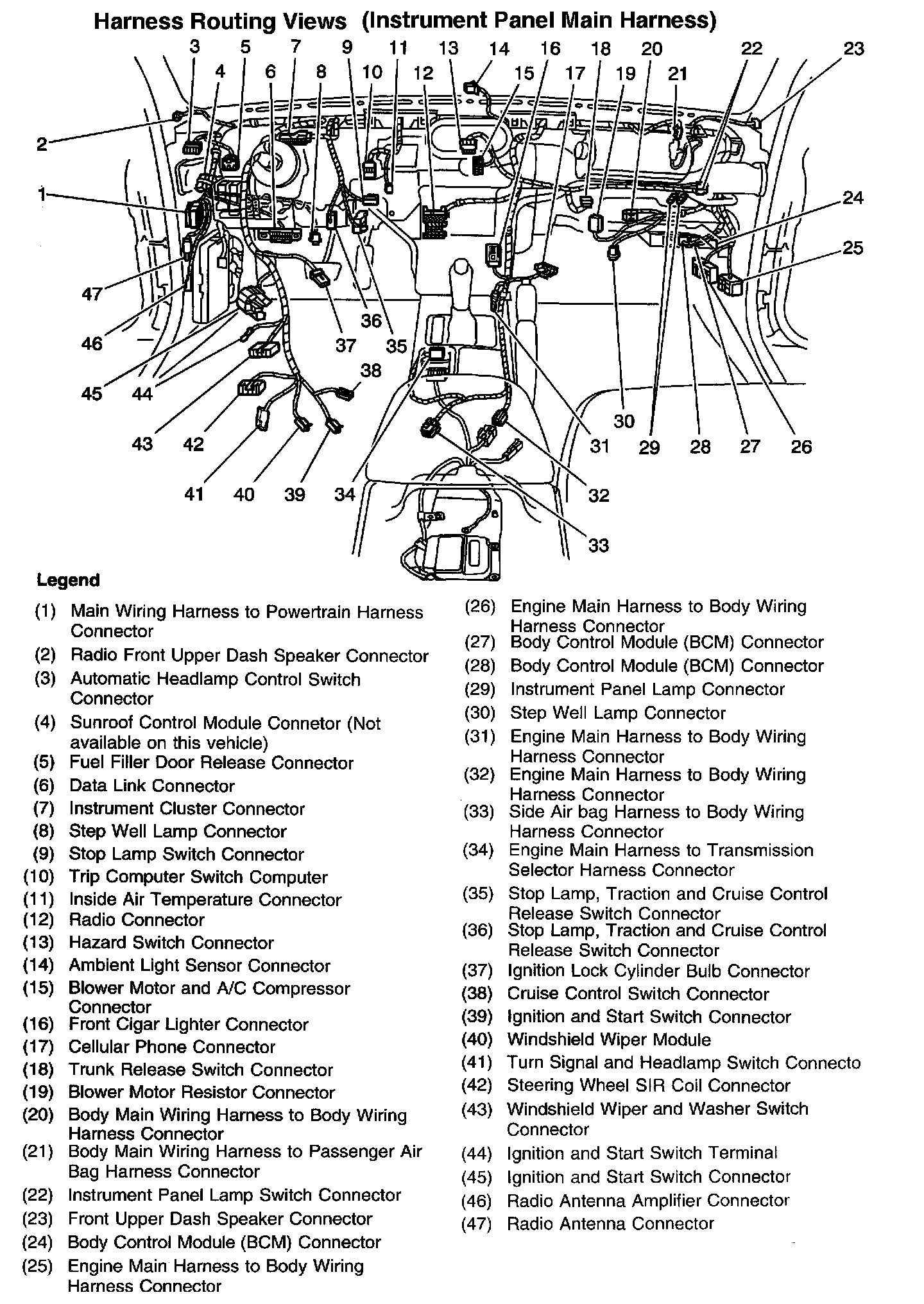

Harness Routing Views (Instrument Panel Main Harness):

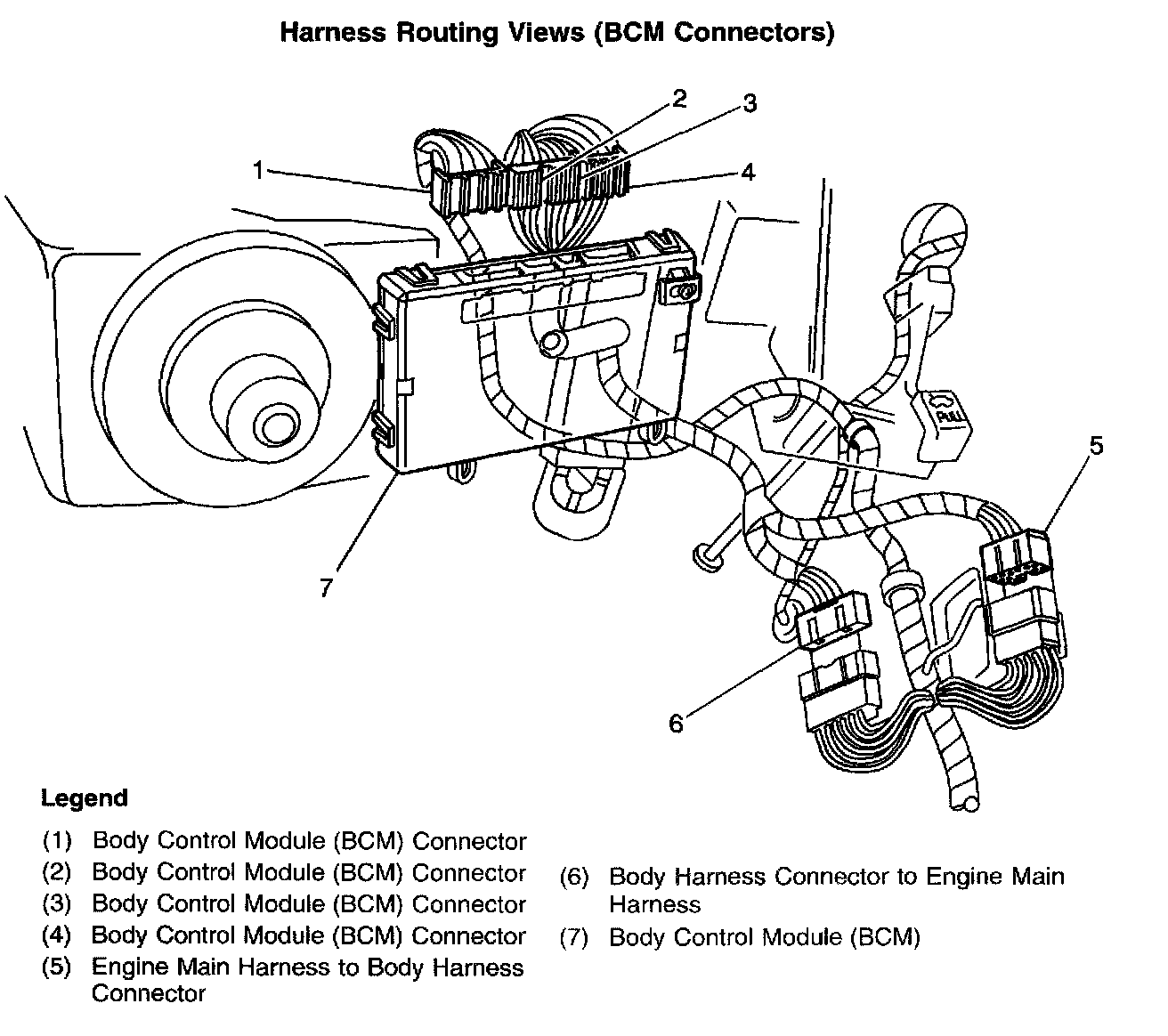

Harness Routing Views (BCM Connectors):
