Home >> Pontiac >> 2004 >> GTO V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Memory Positioning Module

Memory Positioning Module

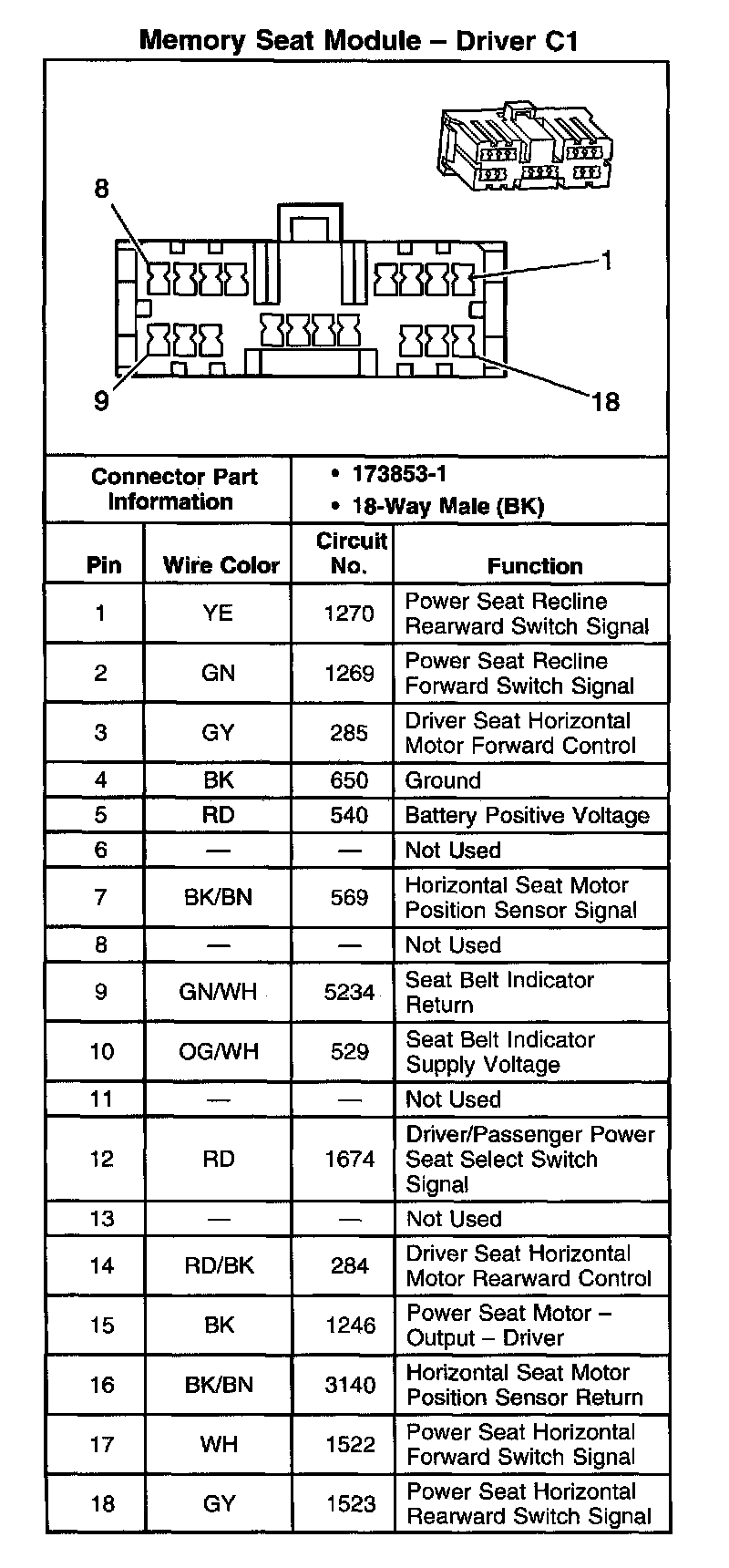

Memory Seat Module - Driver C1:

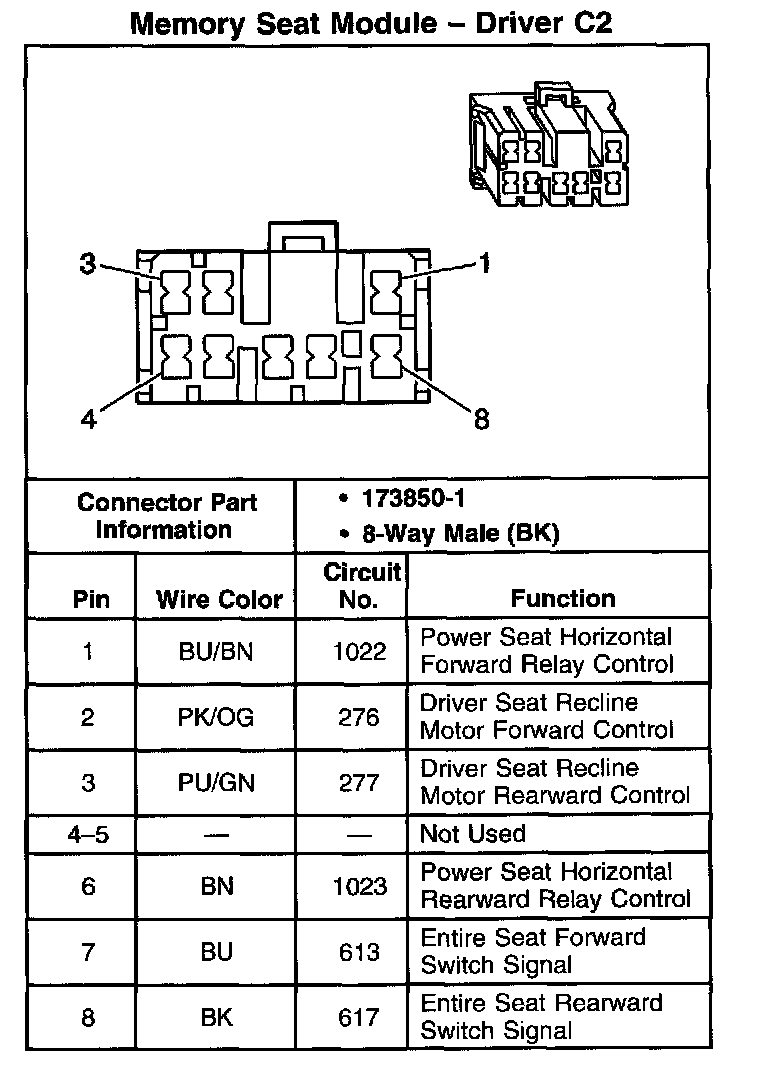

Memory Seat Module - Driver C2:

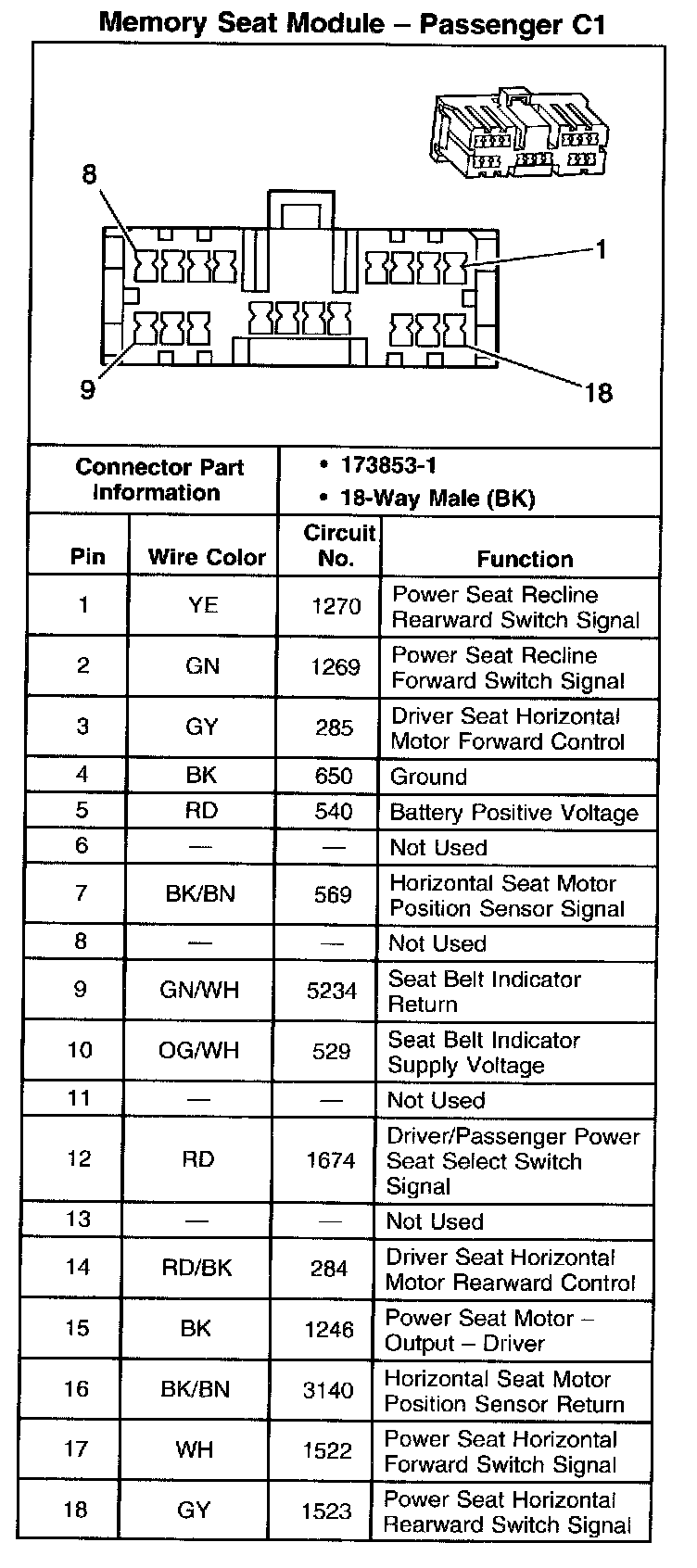

Memory Seat Module - Passenger C1:

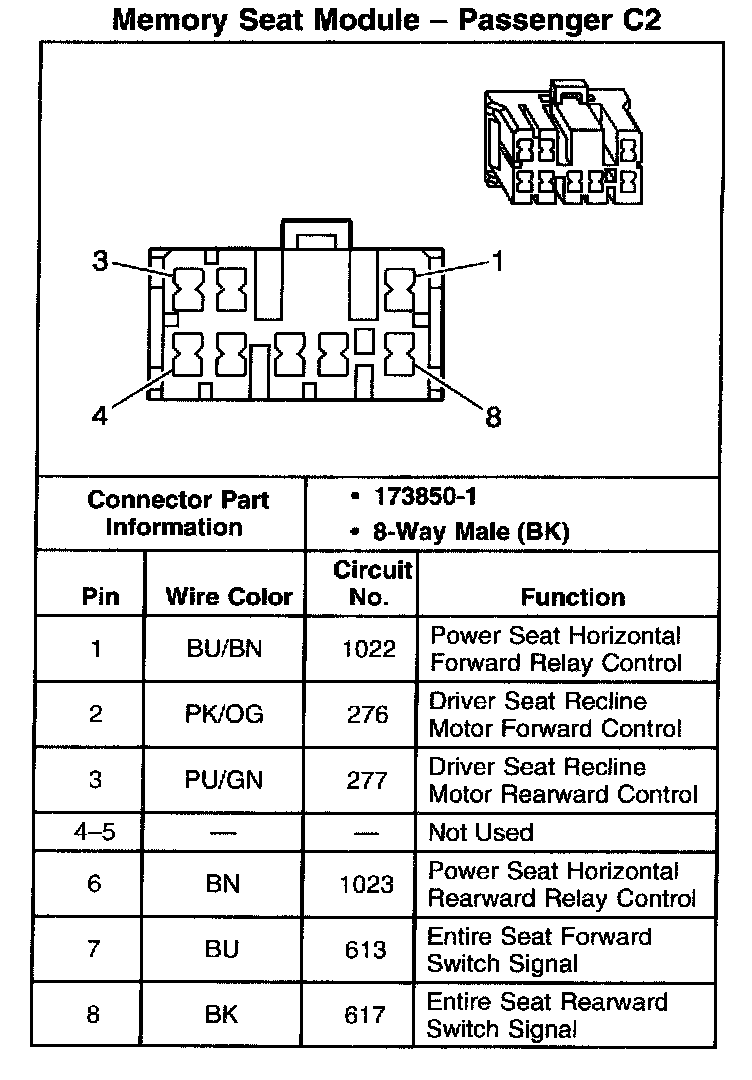

Memory Seat Module - Passenger C2:
