Home >> Pontiac >> 2004 >> GTO V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Control Module

Ignition Control Module

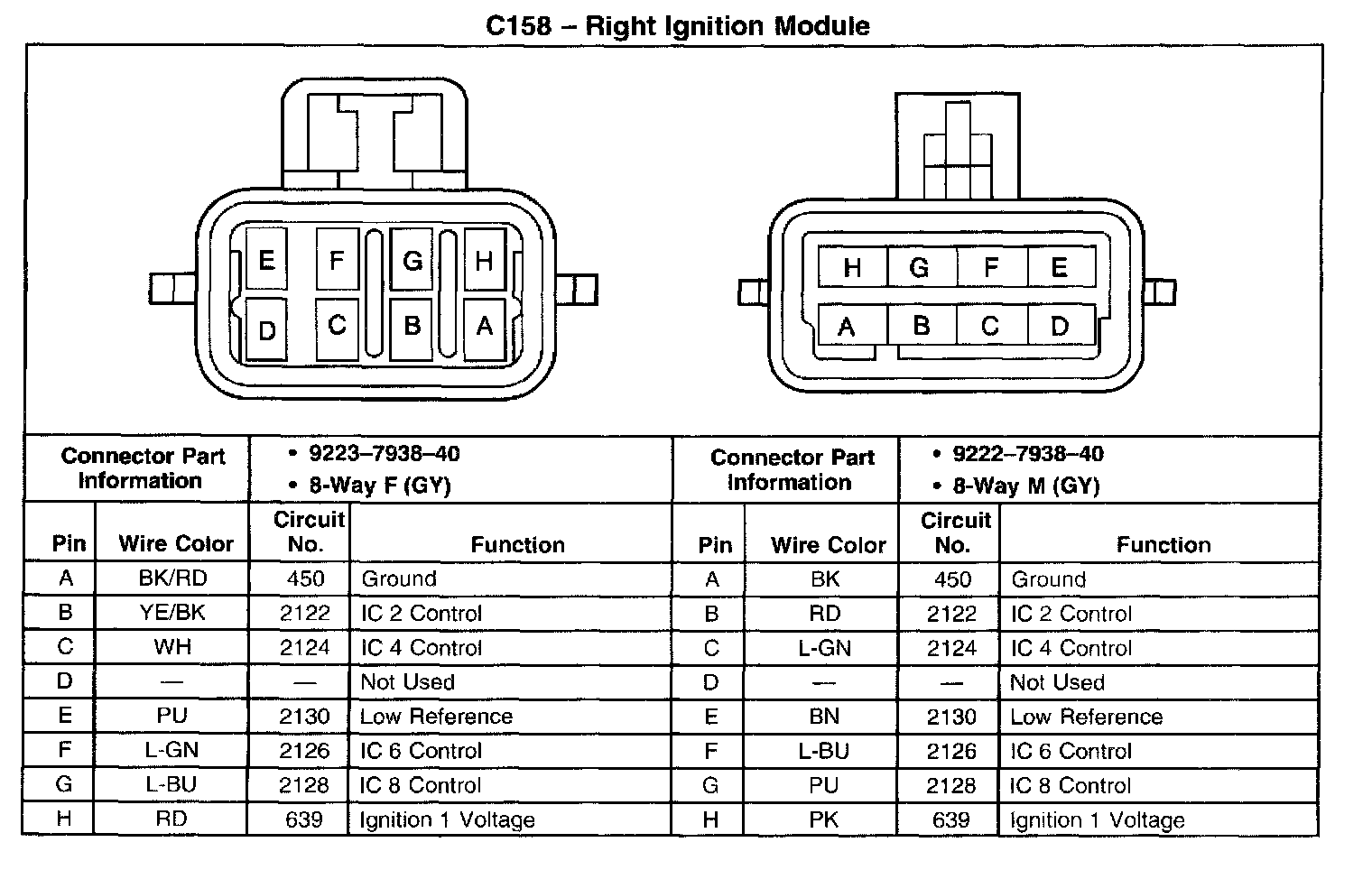

Right Ignition Module C158:

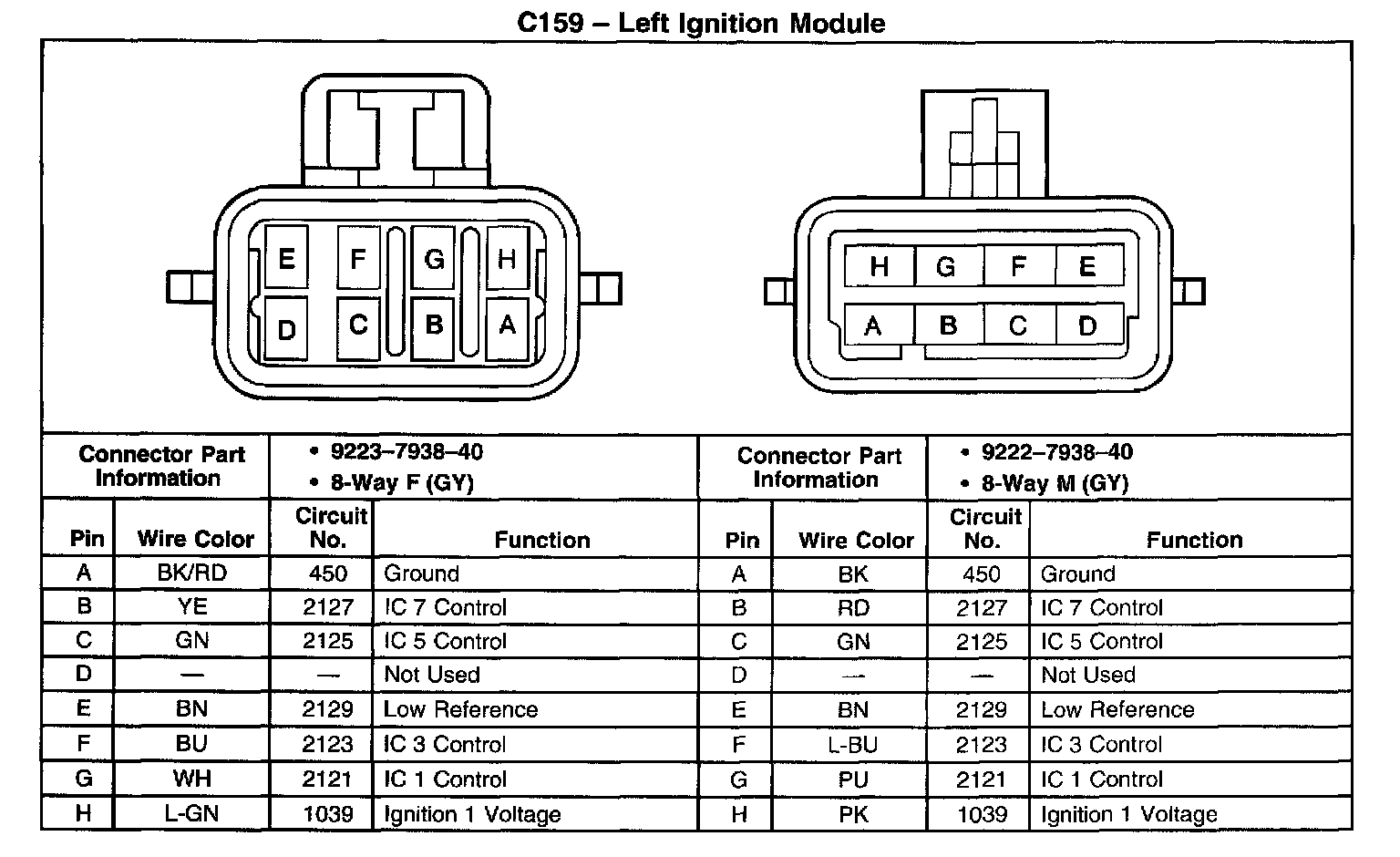

Left Ignition Module C159:
