Home >> Pontiac >> 2004 >> GTO V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> PCM Connector C1

PCM Connector C1

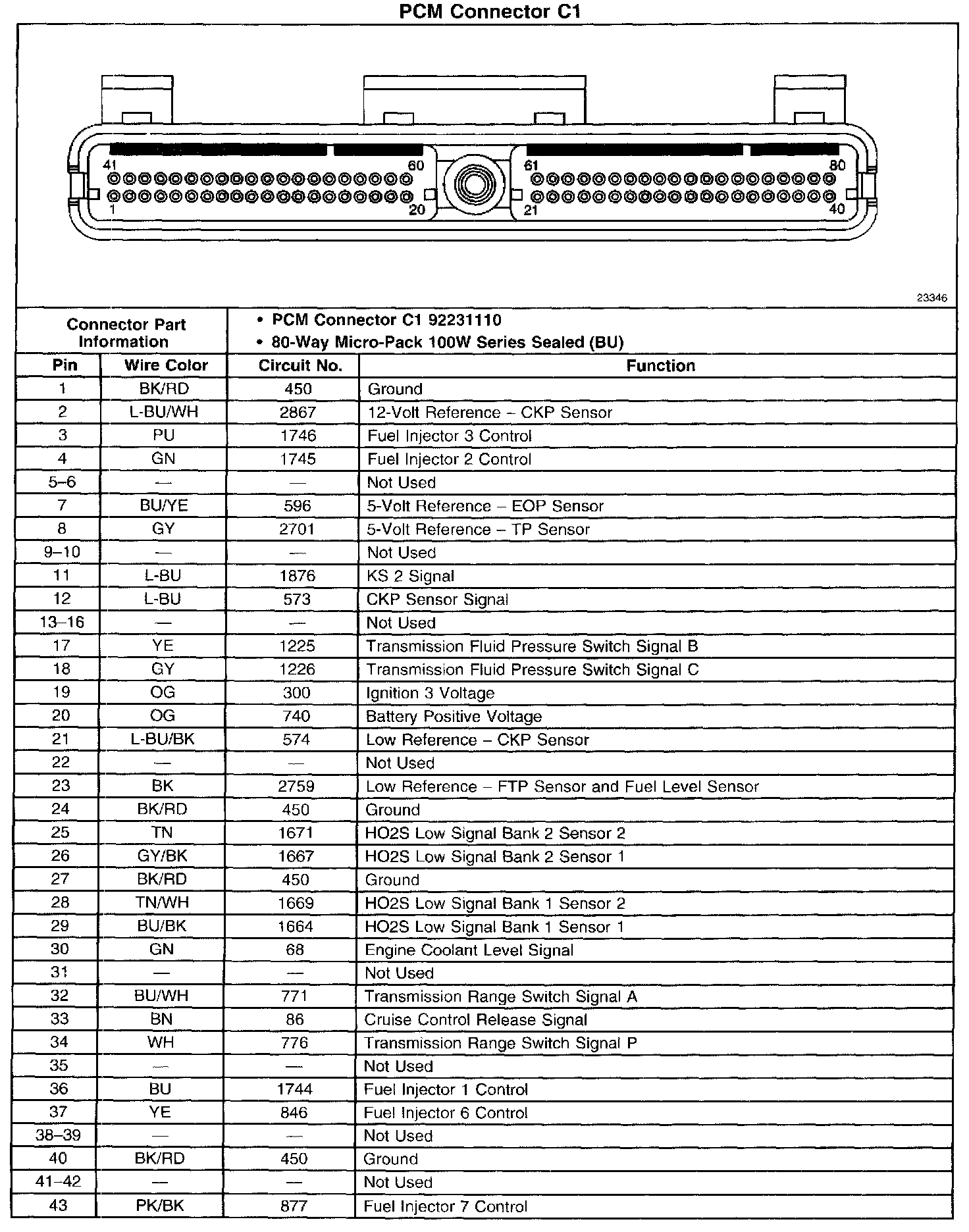

PCM Connector C1:

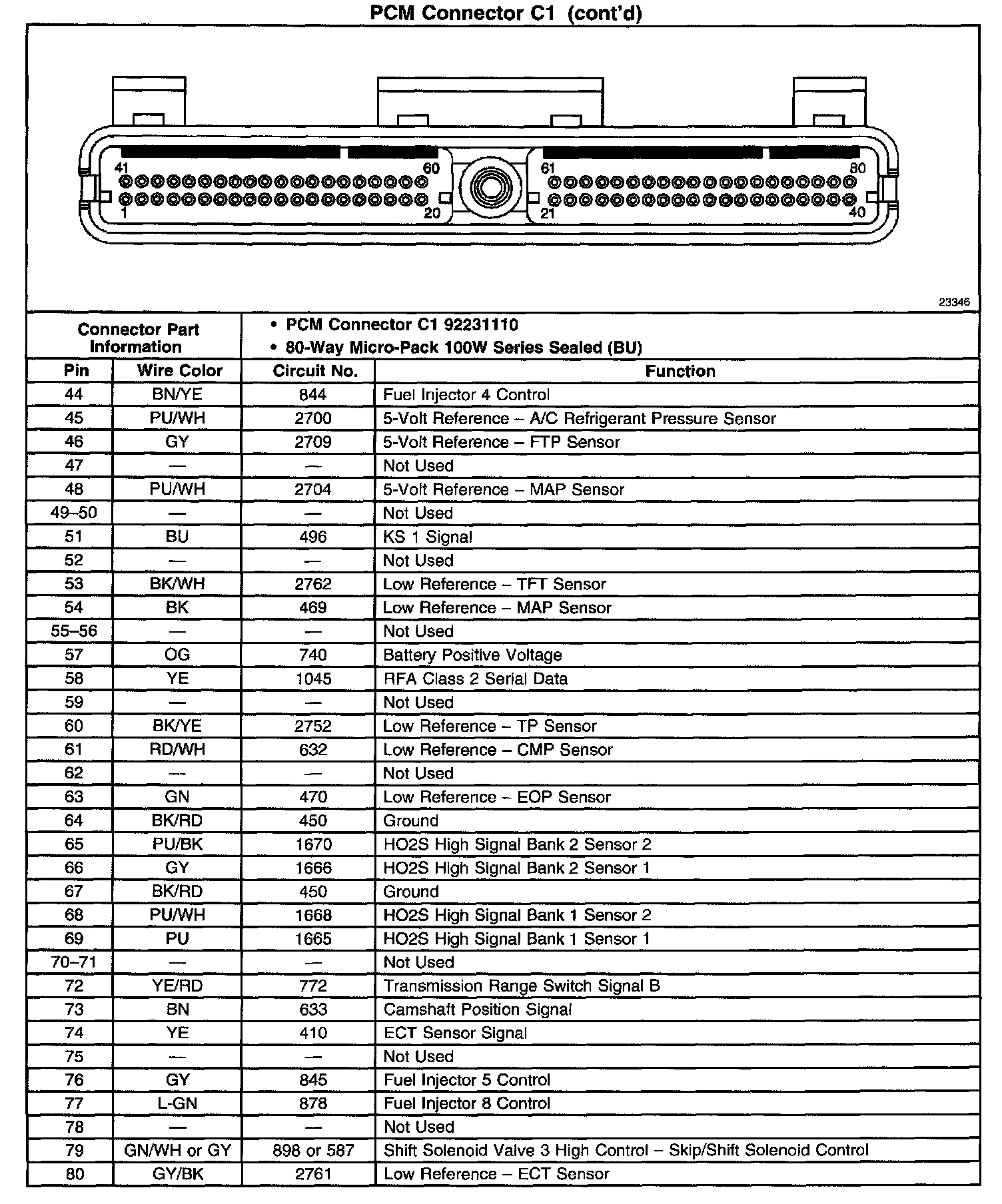

PCM Connector C1 Cont'd:
