lemon-mirror
:
Home
>>
Pontiac
>>
2004
>>
Aztek FWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Control Valve Body Assembly

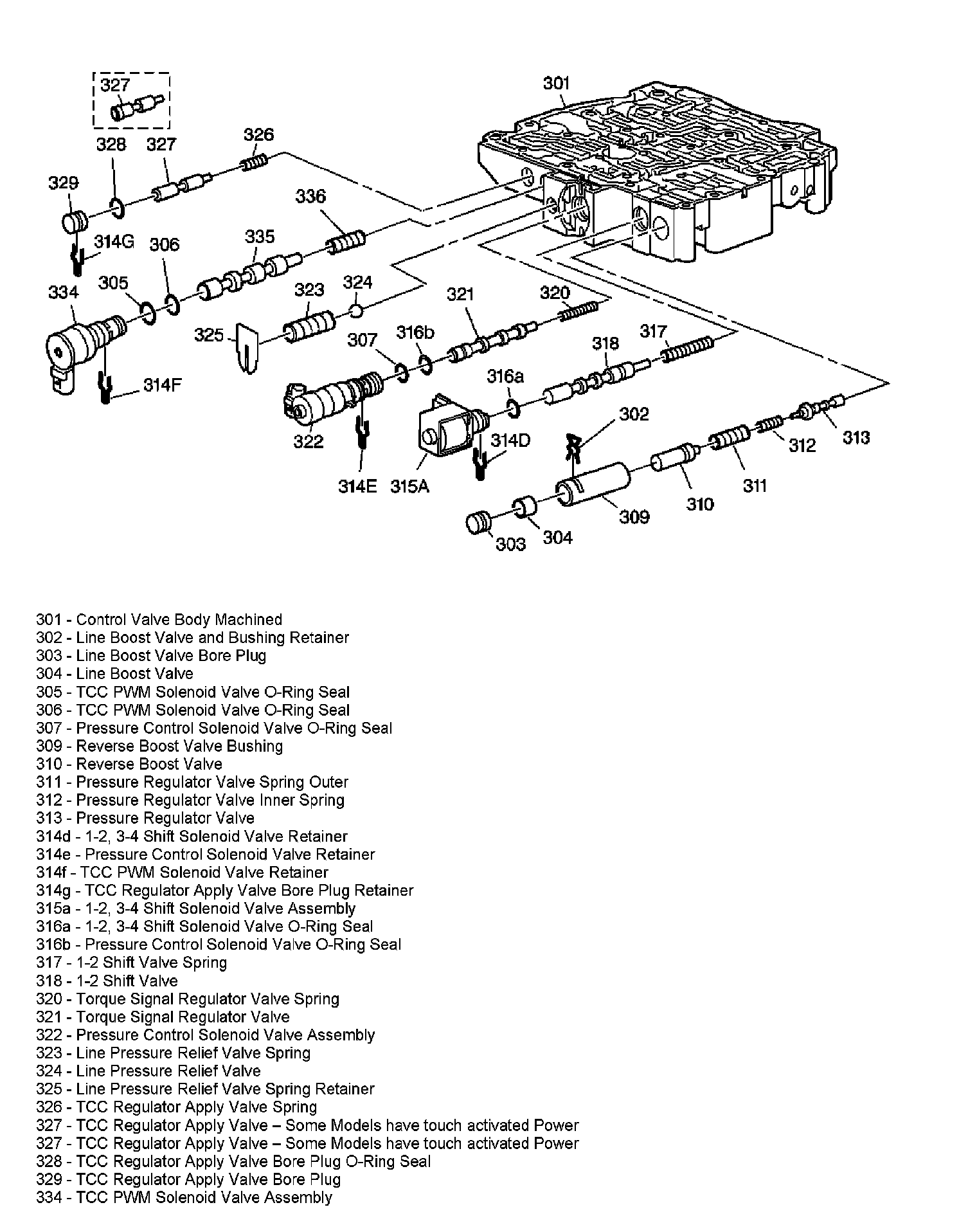

Control Valve Body Assembly
Control Valve Body Assembly
Control Valve Body Assembly (1 of 2)
Control Valve Body Assembly (2 of 2)
