Home >> Pontiac >> 2004 >> Aztek FWD V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Powertrain Control Module - C1

Powertrain Control Module - C1

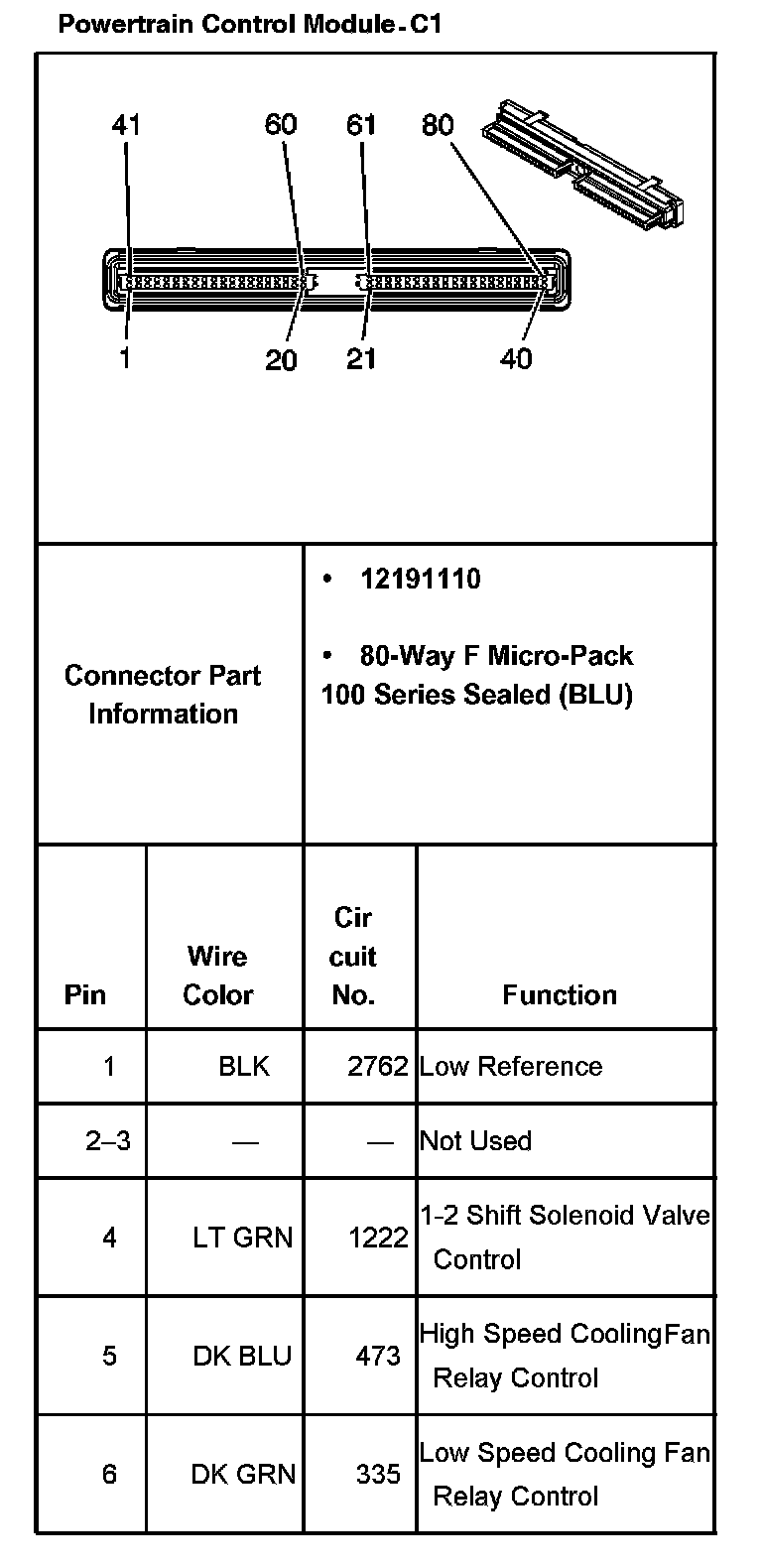

Powertrain Control Module - C1 Part 1:

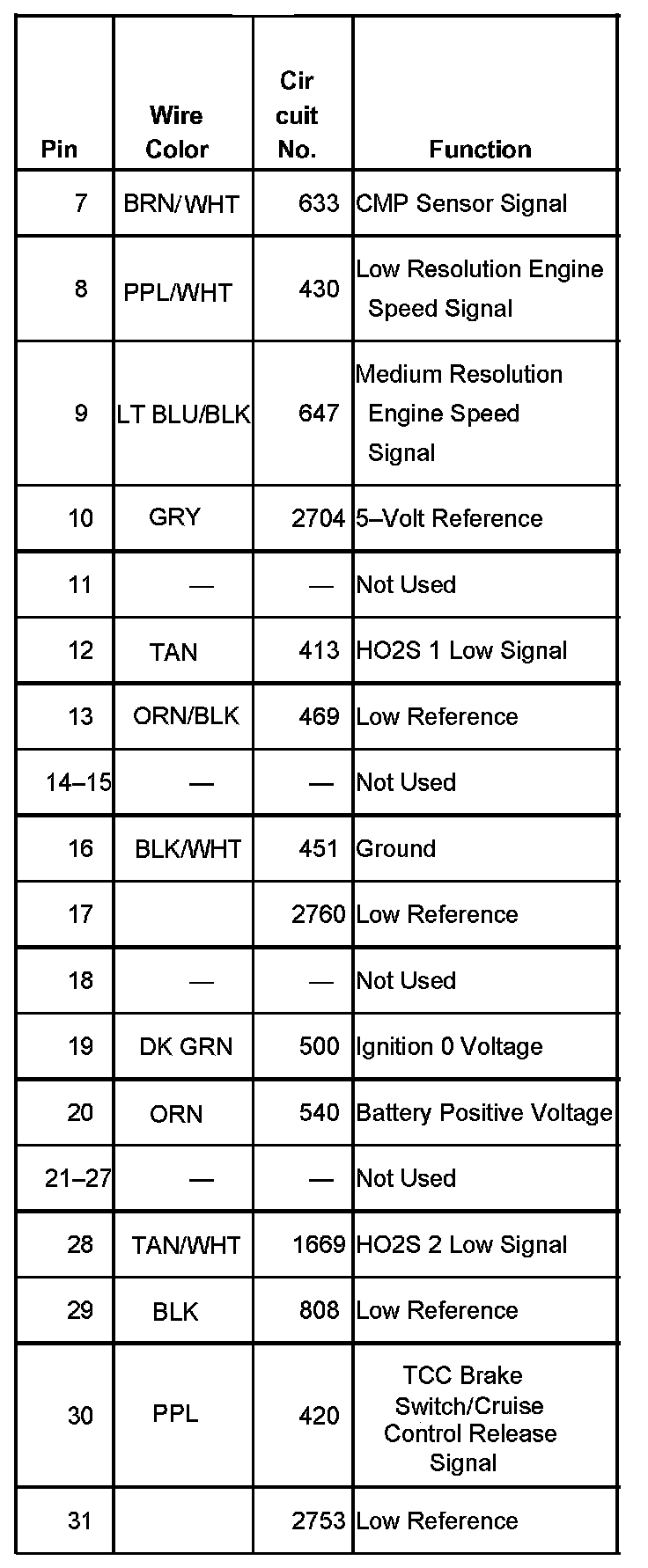

Powertrain Control Module - C1 Part 2:

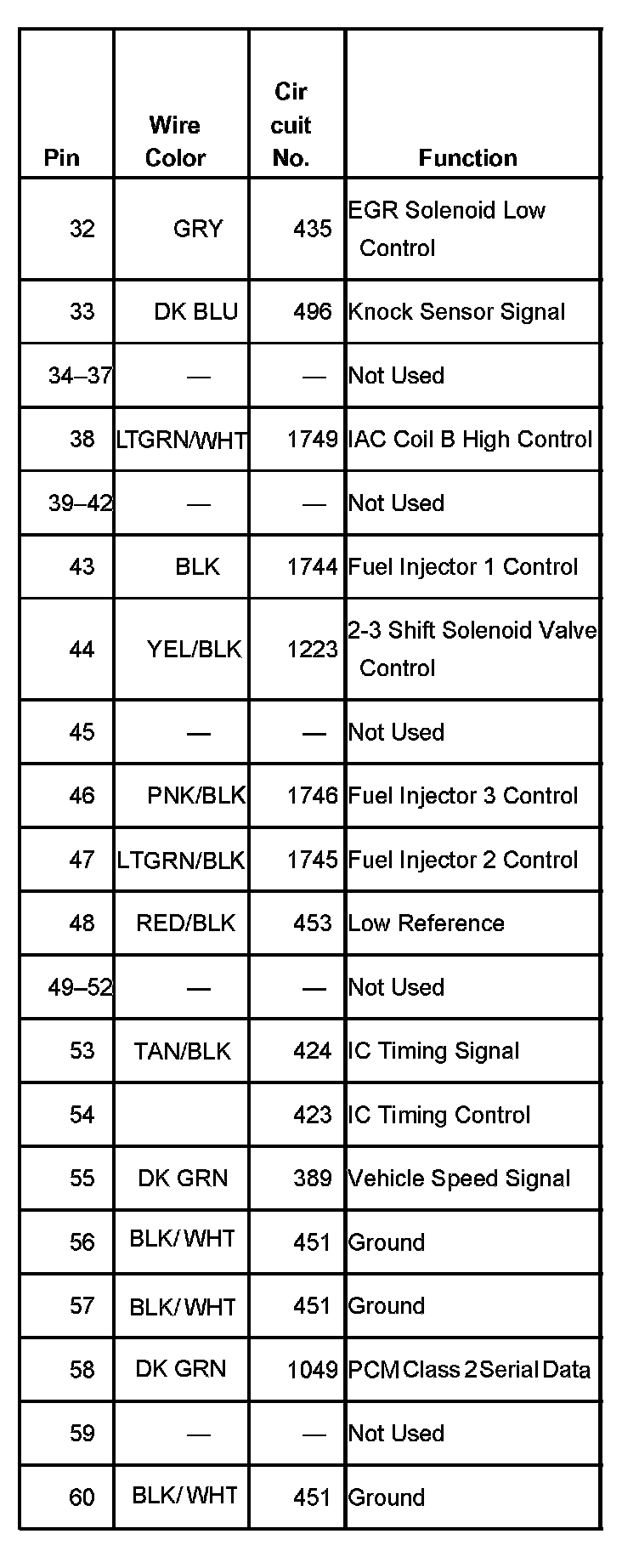

Powertrain Control Module - C1 Part 3:



Powertrain Control Module - C1 Part 4:
