Home >> Pontiac >> 2004 >> Aztek FWD V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> HVAC System - Automatic

HVAC System - Automatic

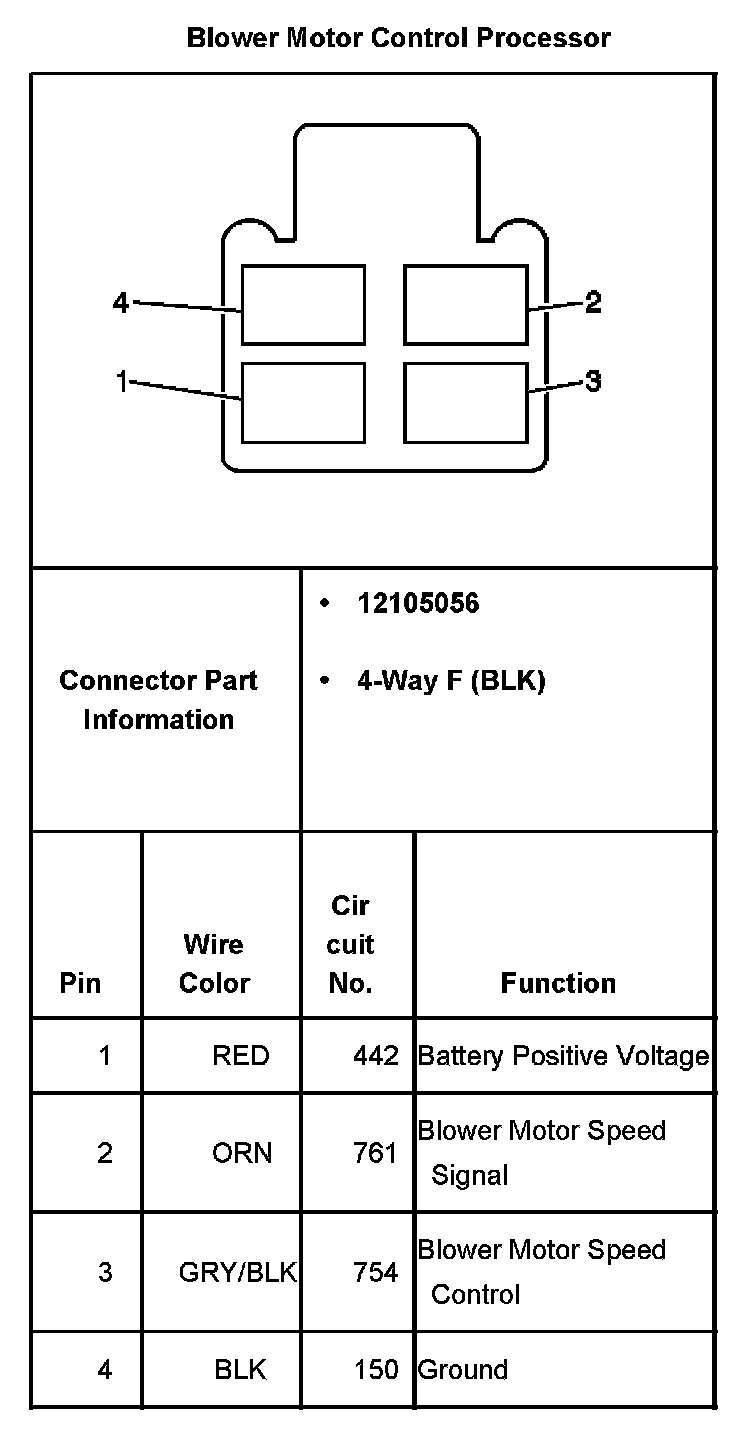

Blower Motor Control Processor:

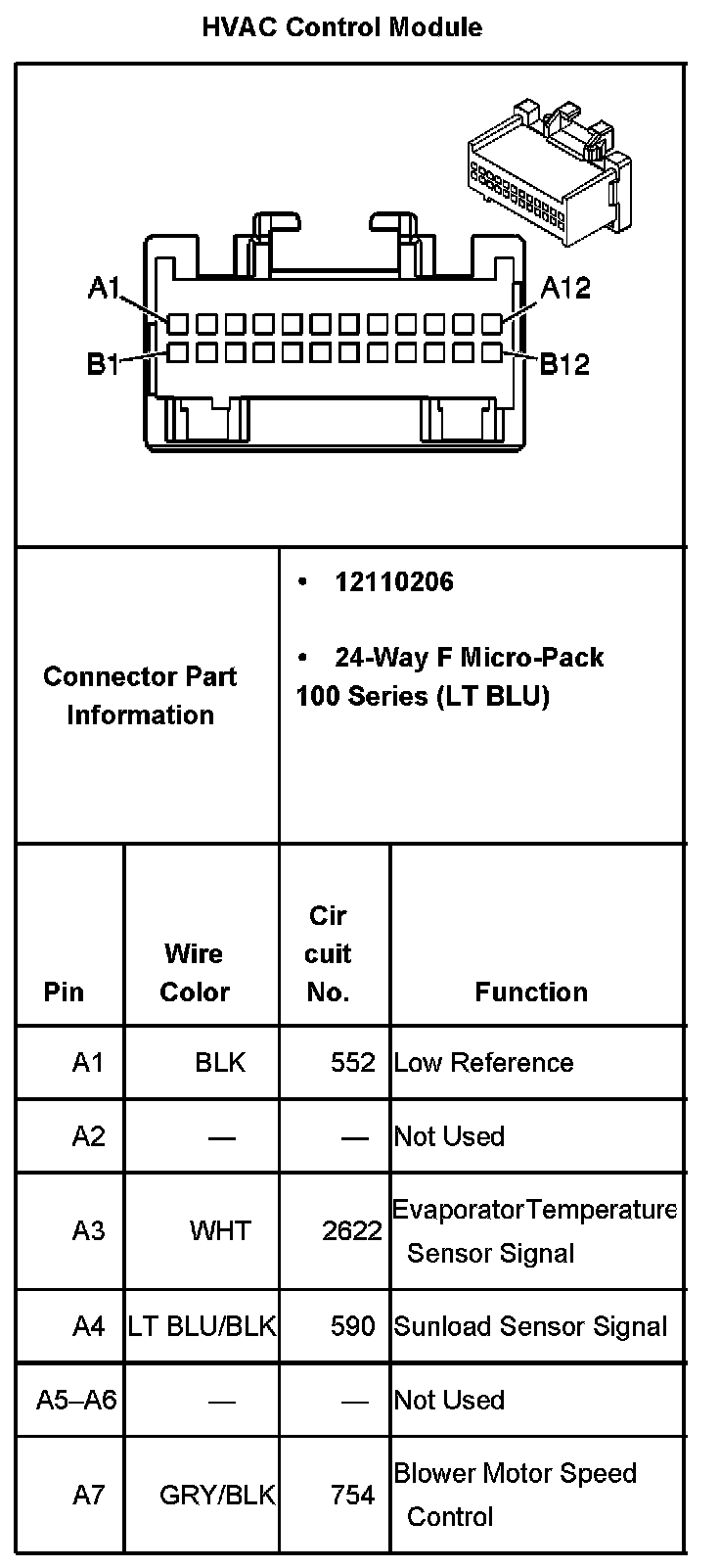

HVAC Control Module Part 1:

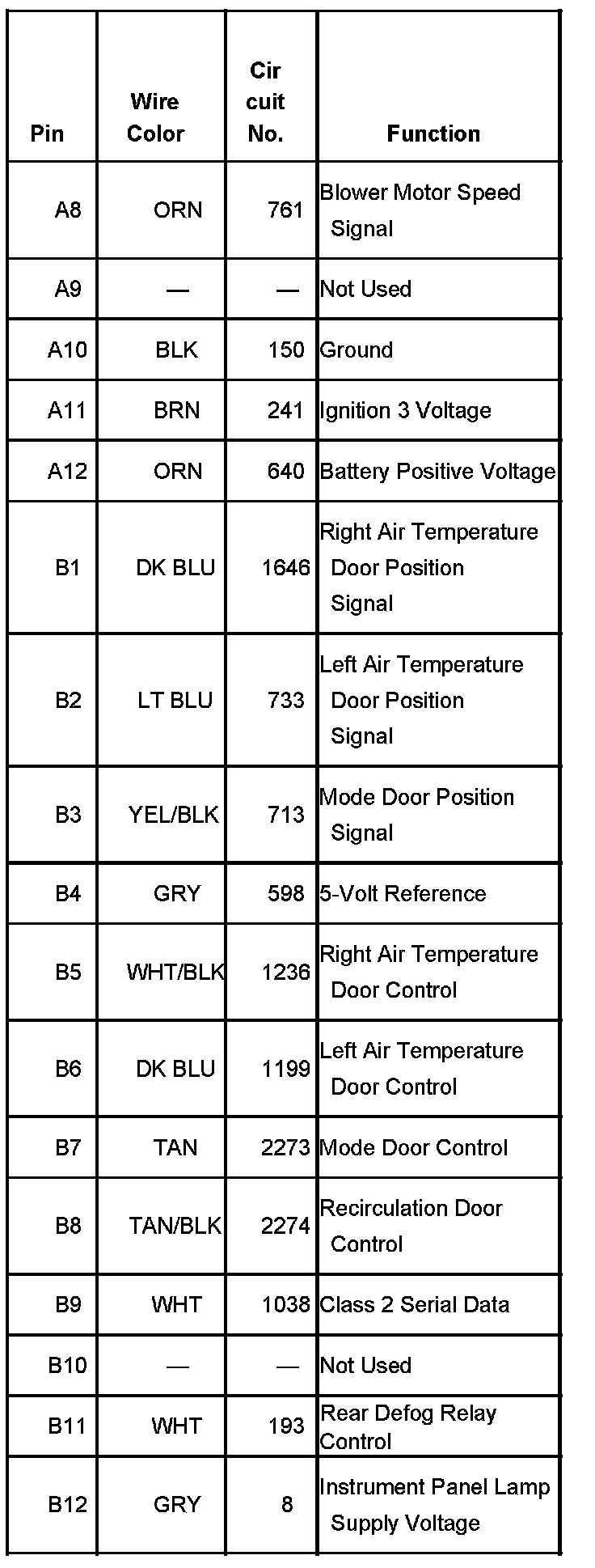

HVAC Control Module Part 2:
