Aztek FWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>
Body Control Module (BCM) C3
Body Control Module (BCM) C3

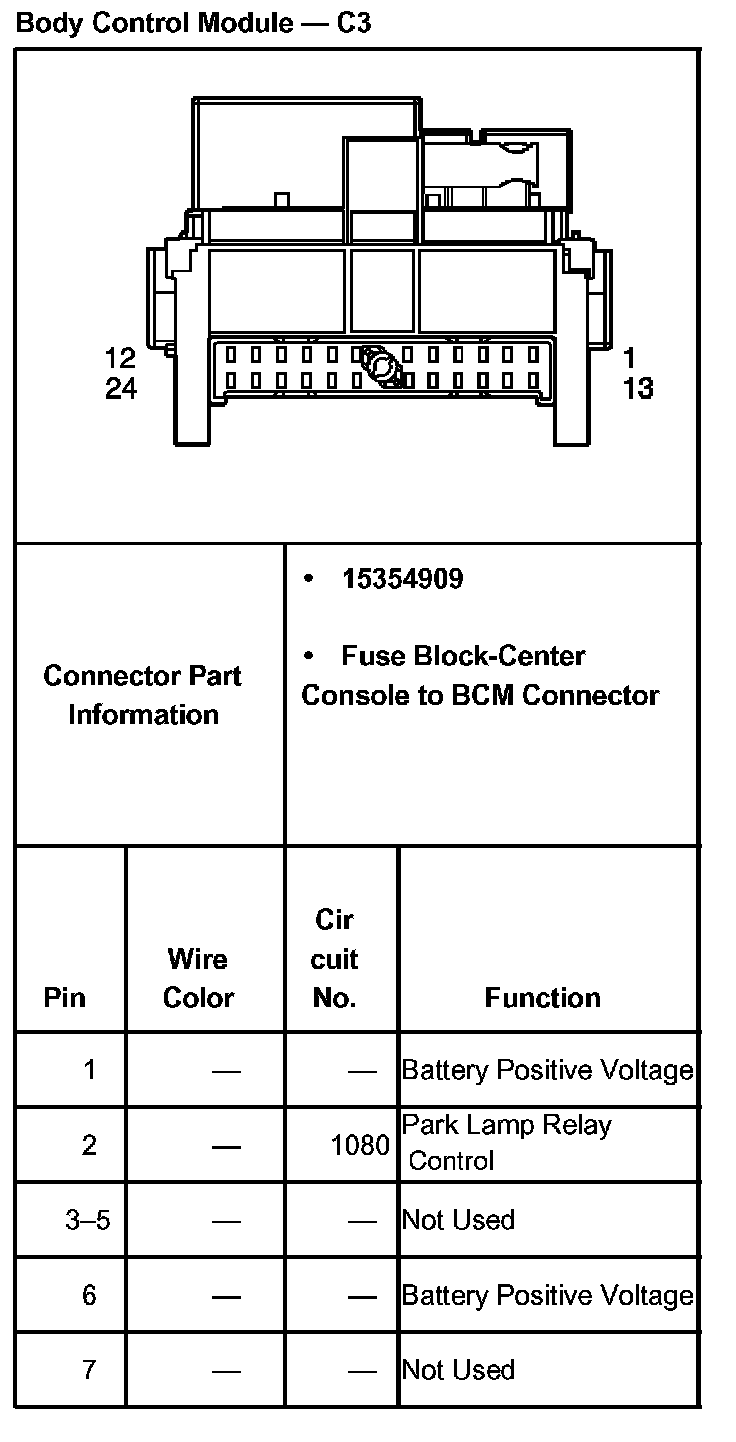

Body Control Module-C3 Part 1:

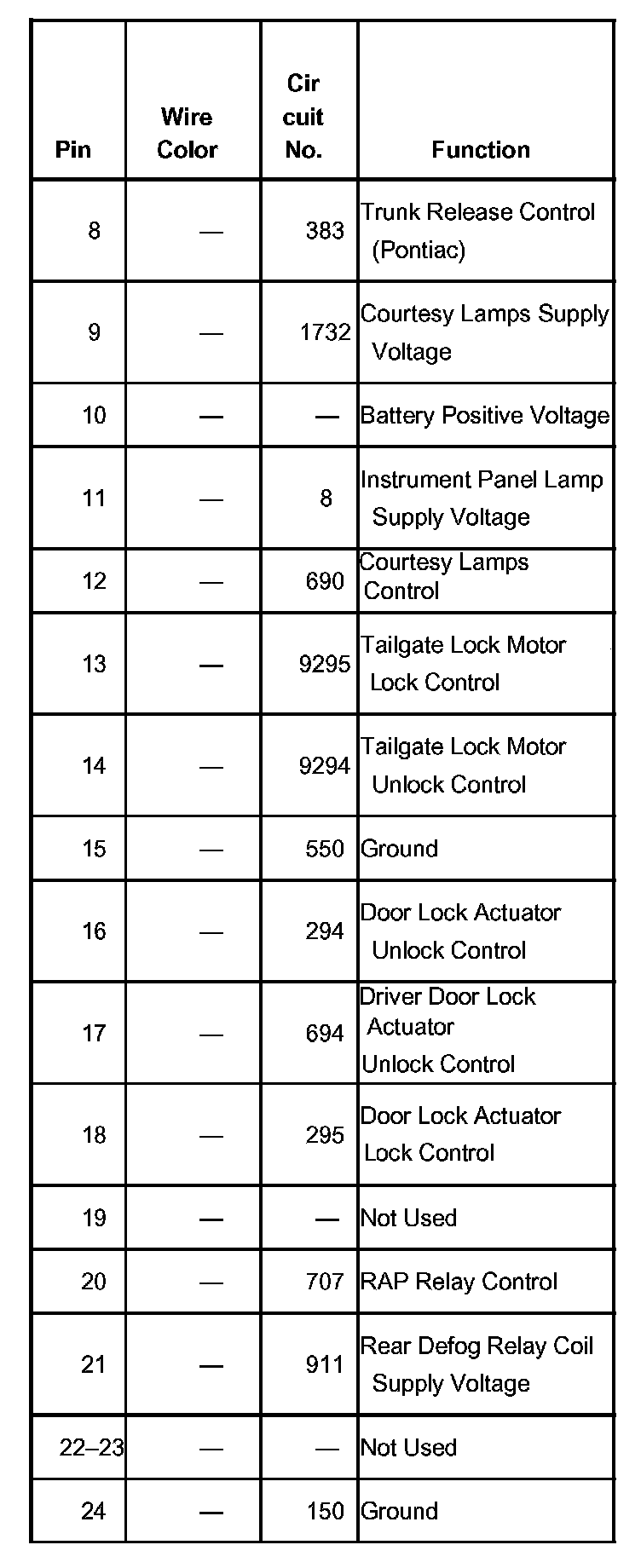

Body Control Module-C3 Part 2:
